DIN PCB breakout

by infovore.

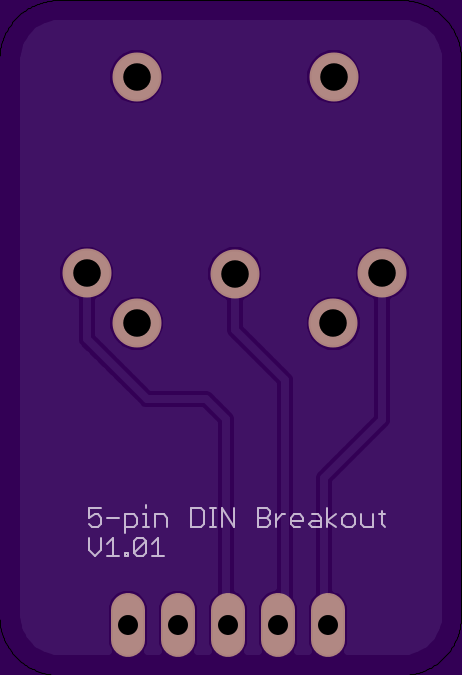

Top

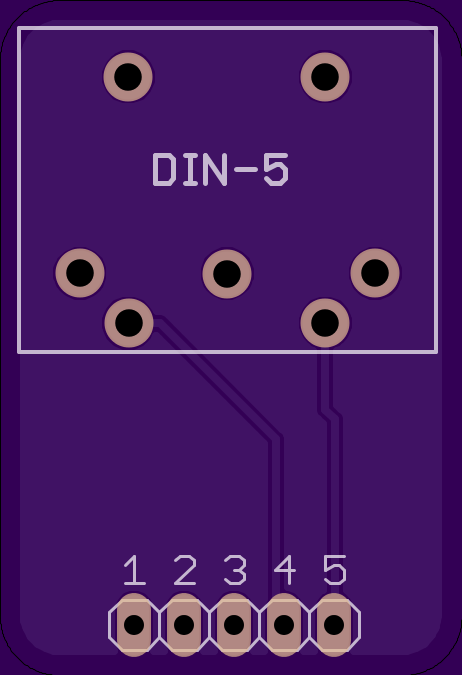

Bottom

2 layer board of 0.92x1.35 inches (23.47x34.29 mm).
Shared on January 5th, 2016 23:25.

A simple breakout board to convert the fairly common 90ยบ DIN socket (as provided by Sparkfun, for instance) to 5 pins at 2.54mm pitch (ie, breadboard pitching).
