MDB_JackBoard_0_0_0

by RabidElephant.

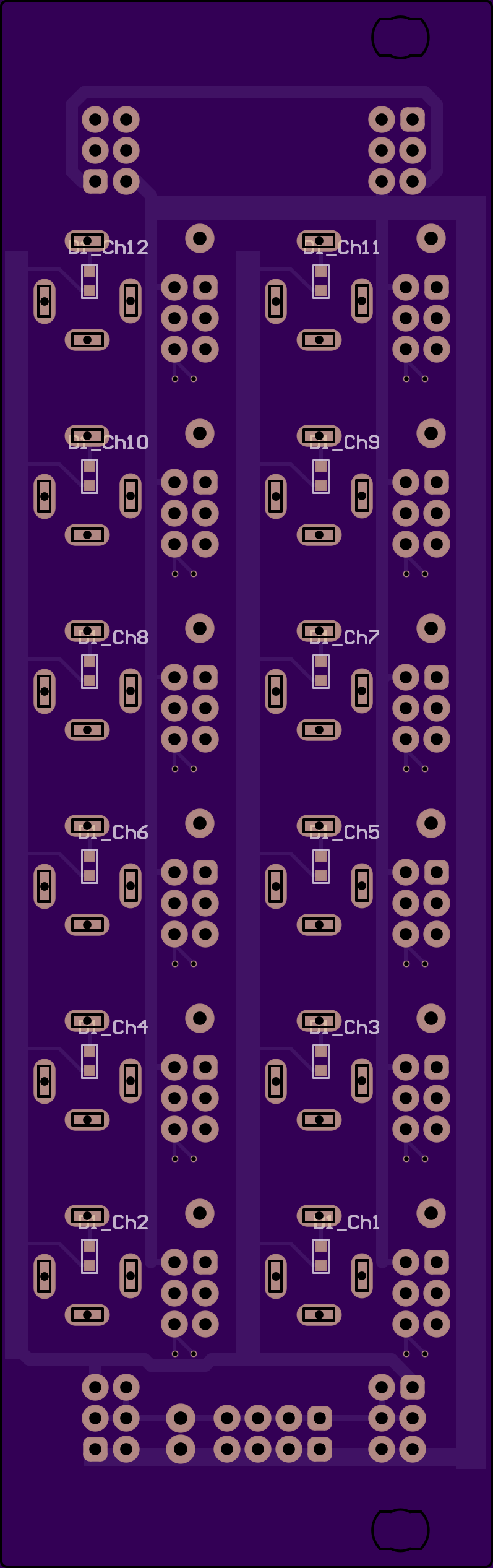

Top
Bottom

2 layer board of 1.60x5.07 inches (40.51x128.70 mm).
Shared on January 19th, 2016 17:29.

This is part of our “Modular Dev Board” system for the Eurorack format. We use these internally for rapidly prototyping/testing modules before committing to final prototype modules.

This module features 3.5mm SC330 jacks (you can find these at Erthernvar).
