Postage Stamp Regulator Mk 4

by schizobovine.

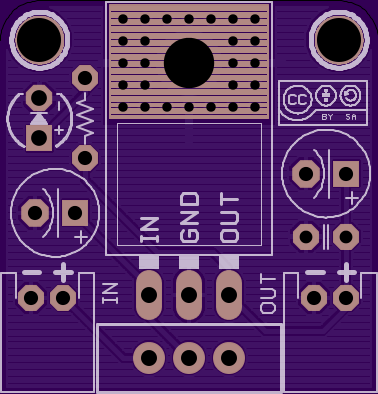

Top

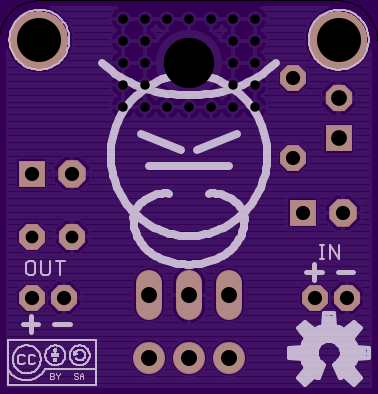

Bottom

2 layer board of 0.95x0.99 inches (24.00x25.02 mm).
Shared on January 29th, 2015 20:08.

Small linear voltage regulator board for L78xx TO-220 voltage regulators. IGO pinout, 2.0mm pitch JST PH in/out. Now with power switch. Also cow.
