CP2102 USB to TTL to Arduino Pro Mini Adapter

by serisman.
Top
Bottom

2 layer board of 0.30x0.60 inches (7.65x15.27 mm).
Shared on February 9th, 2015 05:50.

$0.30 each ($0.90 for 3)

https://bitbucket.org/serisman/pcb-cp2102-arduino-pro-mini-adapter

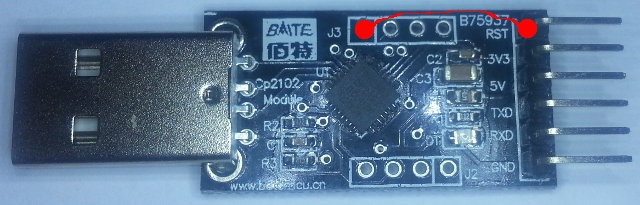

CP2102 USB to TTL

NOTE: If you want to use the auto-reset capabilities, you will need to cut the trace going to the RST pin and connect it to the DTR header pin (red dots/line in the picture below)

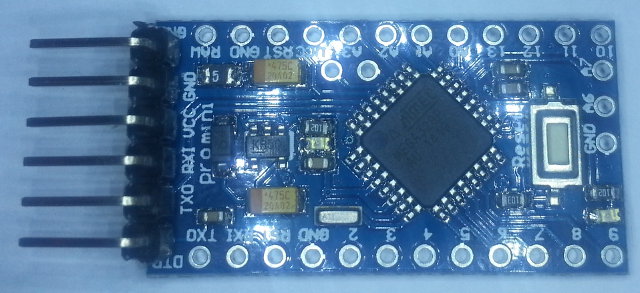

Arduino Pro Mini
