Basic biamp system

by ccorn90.

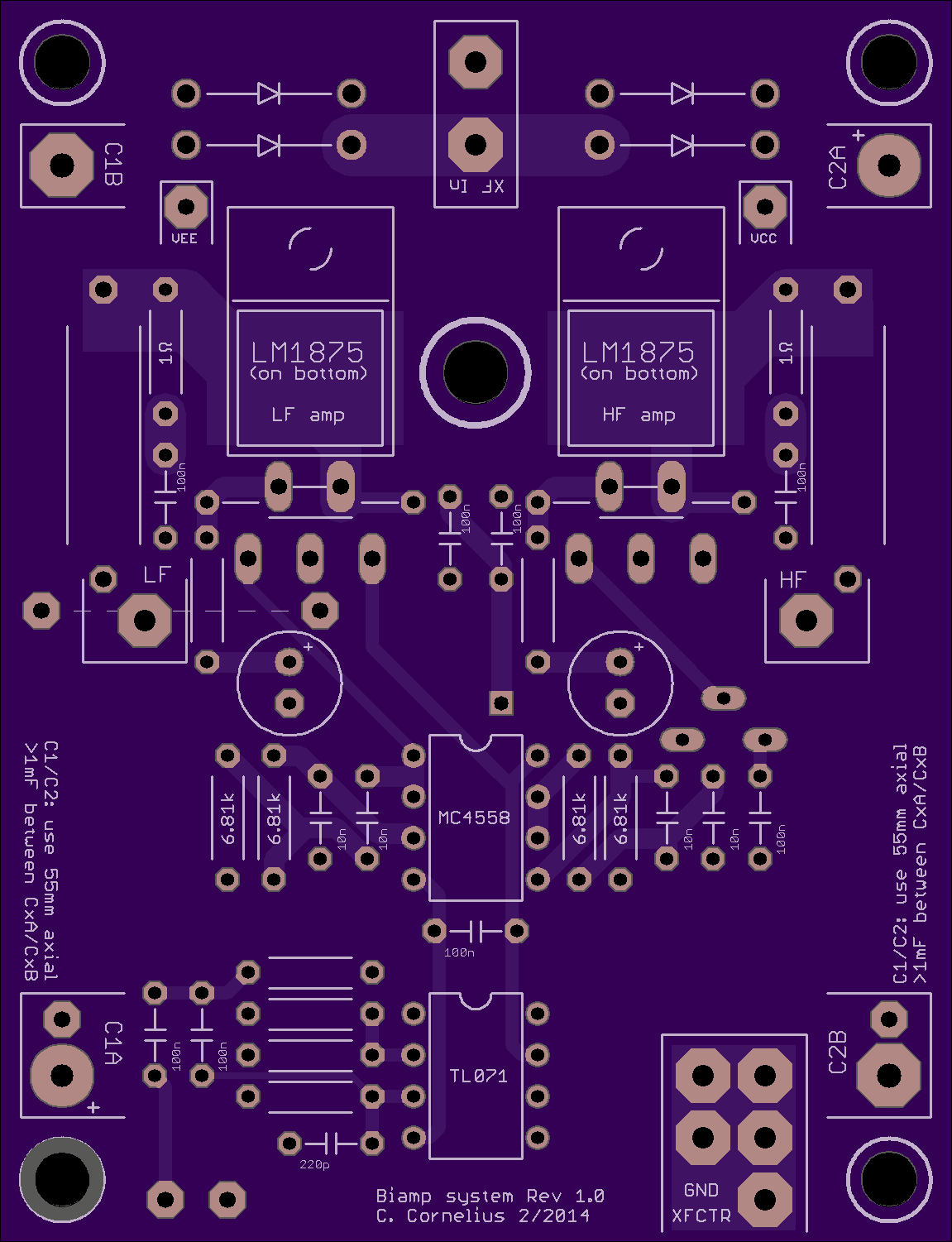

Top

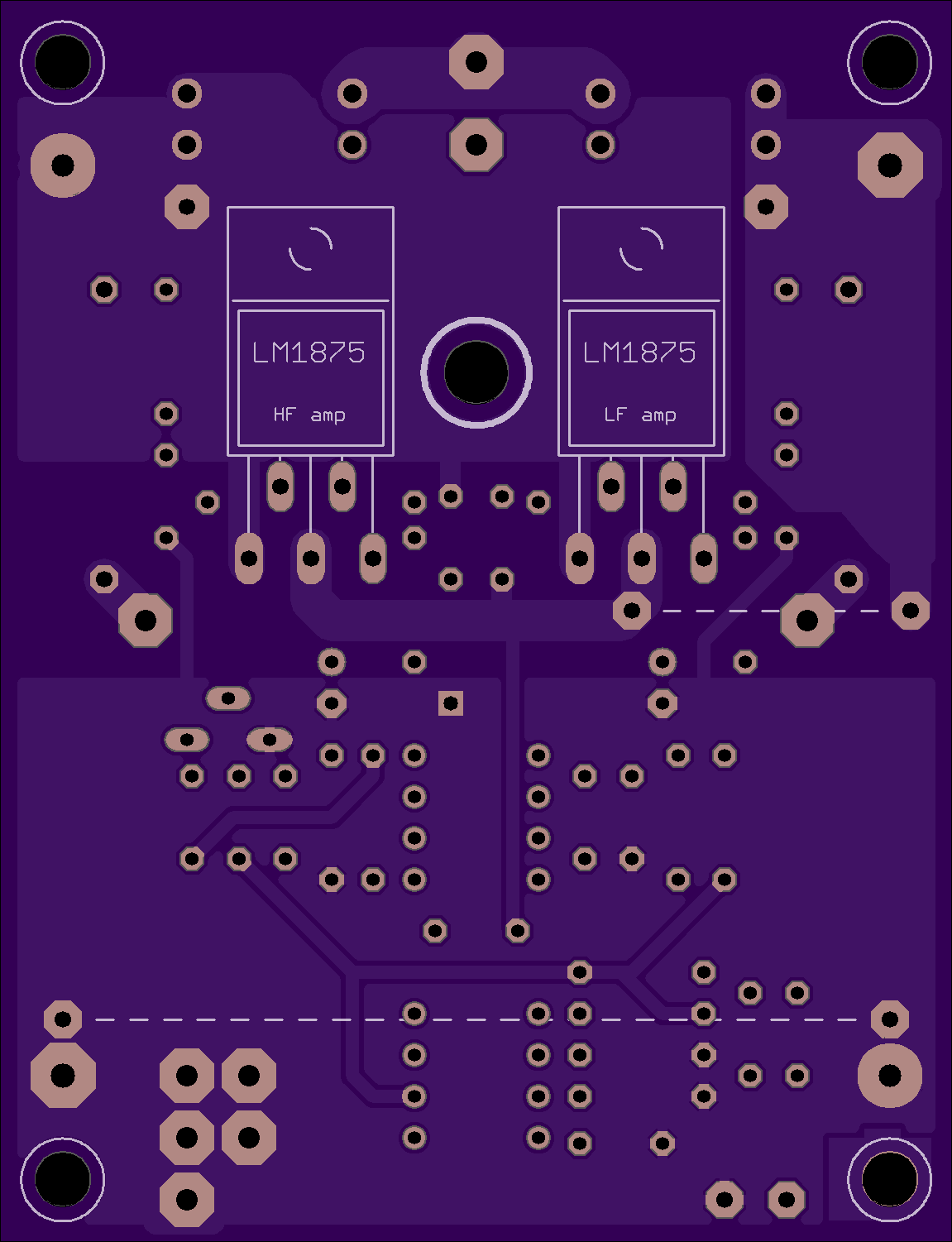

Bottom

2 layer board of 2.30x3.00 inches (58.42x76.20 mm).
Shared on February 11th, 2014 22:11.

Small board that uses LM1875 for 10W into each band. Do not exceed +/- 15V supplies!
