POS and NEG PSU for amplifier

by testep02.

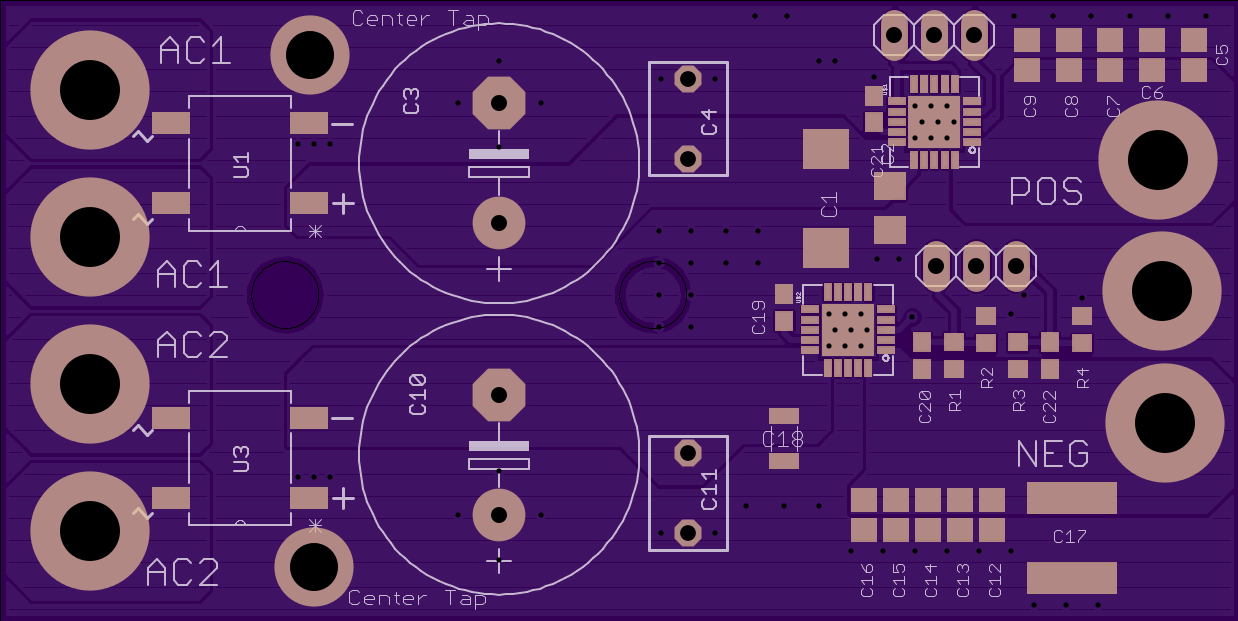

Top

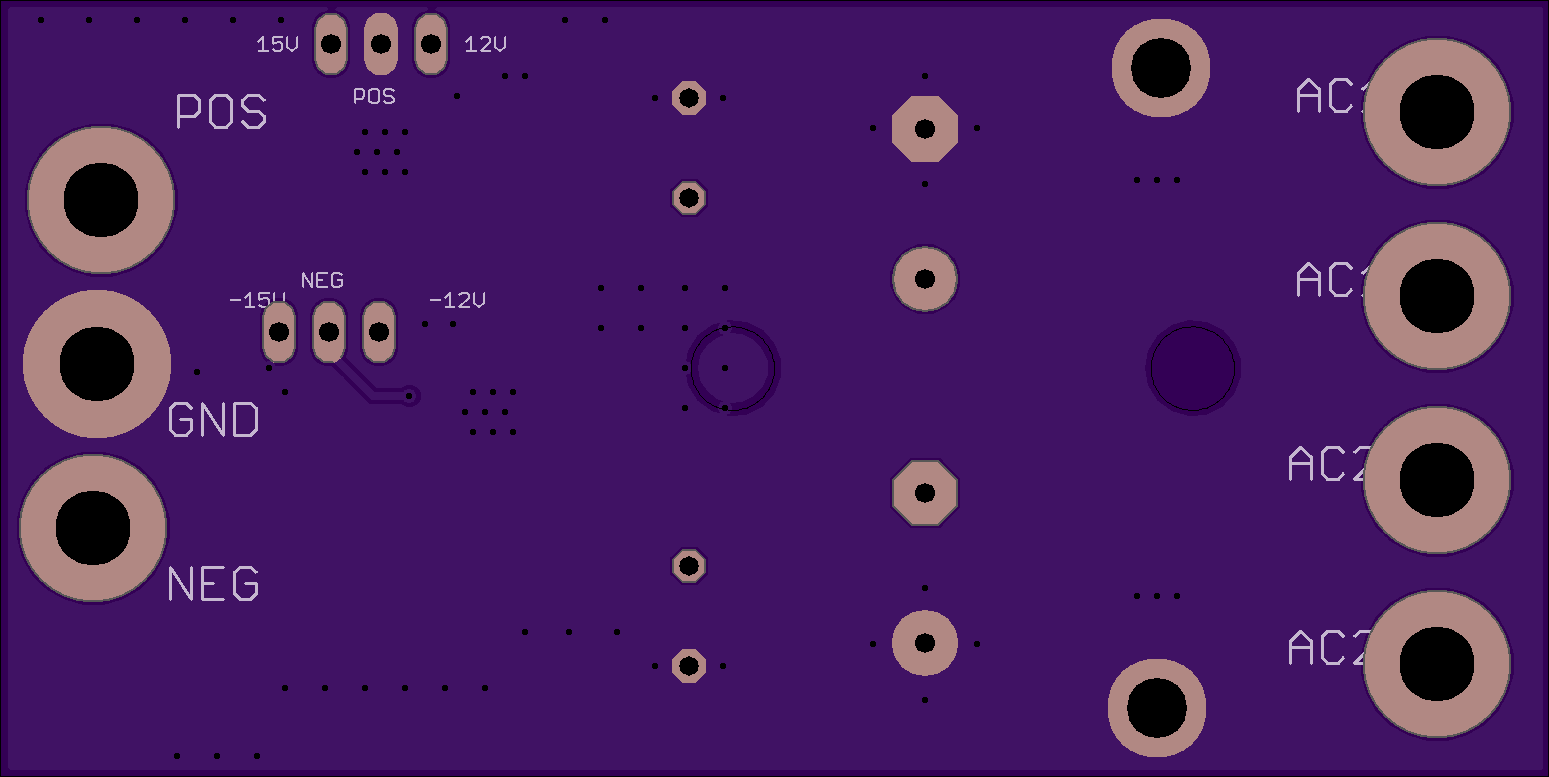

Bottom

2 layer board of 3.10x1.55 inches (78.64x39.42 mm).
Shared on July 8th, 2015 22:53.

Selectable voltages of 12V and 15V. Ultra-low noise LDO regulators.
