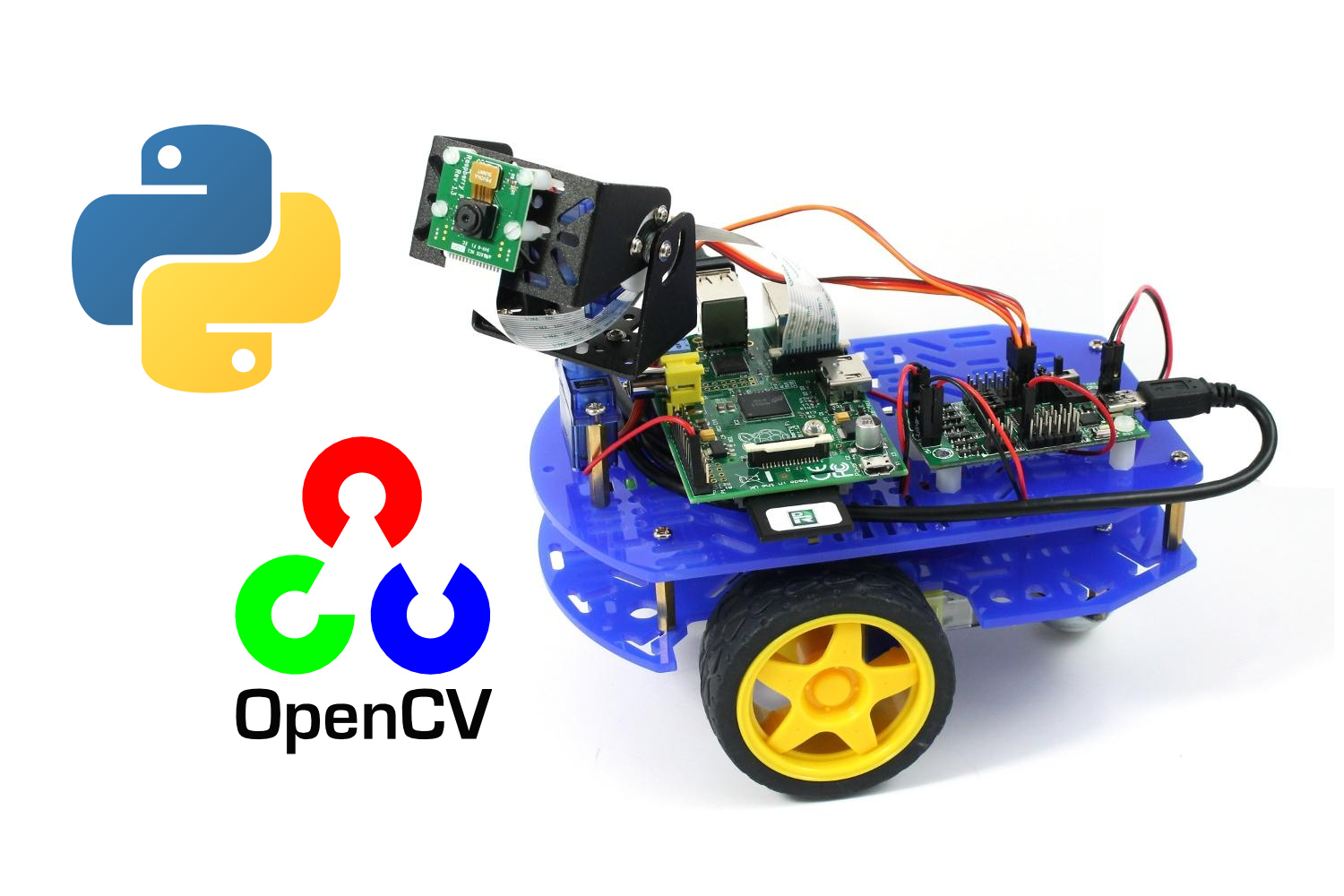

Our Raspberry Pi robot has proven to be very popular, as it allows people to easily put together a fun little robot, that they can drive around using a smartphone, tablet or computer, whilst viewing the world with the camera on the robot. However, fun as this is, it’s hard to view this ‘robot’ as being much more than a remote controlled toy. Our personal view has always been that a robot should be autonomous in some way, and that’s why we’ve been working on a programming interface for our robot that will let users of our robots create cool, autonomous behaviours.
The interface is a Python library called py_websockets_bot. The library communicates with the robot over a network interface, controlling it’s movements and also streaming back images from its camera so that they can be processed with the computer vision library OpenCV. Communicating over a network interface means that your scripts can either run on the robot, or they can run on a separate computer. This feature is really useful if you want to use a computer more powerful than the Pi to run advanced AI and computer vision algorithms, or if you want to coordinate the movement of multiple robots.
In this post we show you how to install the interface library, and provide some example programs, that show you how to make the robot move, how to retrieve images from the camera and how to manipulate the images with OpenCV.
Software Overview

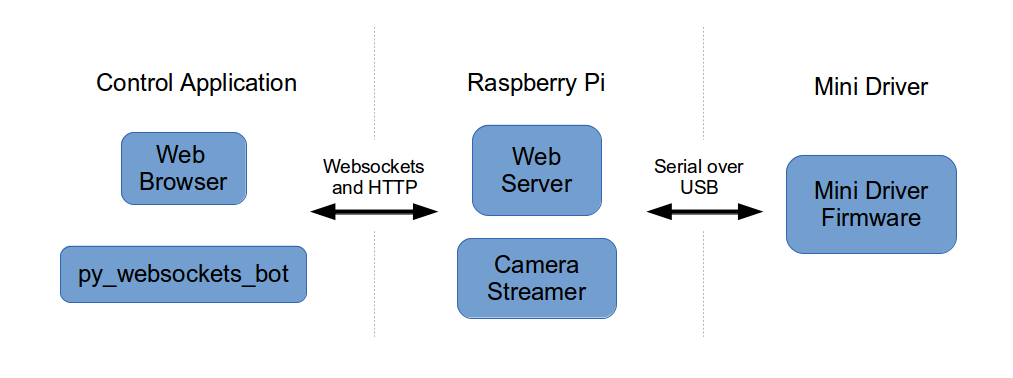

Before we talk about installing the py_websockets_bot library, the image below should hopefully give you a better idea about how the software on the robot works.
At a low level, we use an Arduino compatible board called a Mini Driver to control the hardware of the robot. Running on the Mini Driver is a sketch that listens over serial USB for commands from the Pi, whilst sending back status data (at the moment just battery voltage, but other sensors could also be added).
On the Pi, we run a web server written in Python that provides a web interface, and which listens for commands over the WebSockets protocol. When it gets commands, it sends them onto the Mini Driver via serial USB. The other program running on the Pi is a camera streamer called raspberry_pi_camera_streamer. This is a custom Raspberry Pi camera program we’ve written that streams JPEG images over the network. It can also stream reduced size images (160×120) for computer vision, along with motion vectors (coarse optical flow data) from the Raspberry Pi camera.
To control the robot, you can either use a web browser such as Chrome or Firefox, or now, you can also write a program using the py_websockets_bot library. Both of these will communicate with the web server and the camera streamer on the Pi using WebSockets and HTTP.
It may seem a bit over complicated to run a web server, and to communicate with this, rather than controlling the robot’s hardware directly, but it gives us a lot of flexibility. The web interface can be used to observe the robot whilst it’s being controlled by a script, and as mentioned before, control scripts can be written just once and then run either on the robot, or on a separate computer, depending upon how much computing power is needed. Also, in theory, you can write your control scripts in whatever language you like, as long as you have a library that can speak WebSockets. We have provided a Python library, but there are WebSockets libraries available for many other languages, such as Javascript, Ruby and the .NET framework.
Installing the Software
Starting with the standard Dawn Robotics SD card, run the following commands on your Pi to make sure that the robot’s software is up to date
cd /home/pi/raspberry_pi_camera_streamer git pull cd build make sudo make install
cd /home/pi/raspberry_pi_camera_bot git pull
Reboot your Pi to use the updated software.
Installing py_websockets_bot on a Linux PC or the Raspberry Pi
Run the following commands to install the libraries dependencies
sudo apt-get update sudo apt-get install python-opencv
then
git clone https://bitbucket.org/DawnRobotics/py_websockets_bot.git cd py_websockets_bot sudo python setup.py install
Installing py_websokects_bot on Windows
This is trickier but involves the following steps
- Install Python 2.7.3 – https://www.python.org/download/releases/2.7.3
- Install Numpy 1.6.2
- Goto http://sourceforge.net/projects/numpy/files/NumPy/1.6.2/
- Download and install numpy-1.6.2-win32-superpack-python2.7.exe
- Download OpenCV 2.3.1 – http://opencv.org/downloads.html – 2.3.1 Windows superpack
- Unpack OpenCV to any folder
- Goto opencv/build/python/2.7 folder
- Copy cv2.pyd to C:/Python27/lib/site-packeges.
If needed, more details for OpenCV setup on Windows can be found at http://docs.opencv.org/trunk/doc/py_tutorials/py_setup/py_setup_in_windows/py_setup_in_windows.html
- Now download the py_websockets_bot library (repository) from https://bitbucket.org/DawnRobotics/py_websockets_bot/downloads
- Unpack the library to a folder and navigate to it on the command line
- Run the following command from the command line
c:\Python27\python.exe setup.py install
Installing py_websokects_bot on a Mac
We don’t have a Mac to do this, but hopefully, the installation process should be similar to installing on Linux. If there are any Mac users out there who could give this a go and let us know how they get on, we’d be very grateful.
Making the Robot Move
Making the robot move is very straightforward, as shown in the code snippet below
import py_websockets_bot bot = py_websockets_bot.WebsocketsBot( "ROBOT_IP_ADDRESS" ) bot.set_motor_speeds( -80.0, 80.0 ) # Spin left
For ROBOT_IP_ADDRESS you would put something like “192.168.42.1″ or “localhost” if the script was running on the robot. The code snippet connects to the robot, and then starts it turning left by setting the left motor to -80% speed and the right motor to +80% speed.
The example file motor_test.py shows more of the commands you can use. It can be run from the py_websockets_bot directory by using the command
examples/motor_test.py ROBOT_IP_ADDRESS
Getting and Processing Images from the Robot

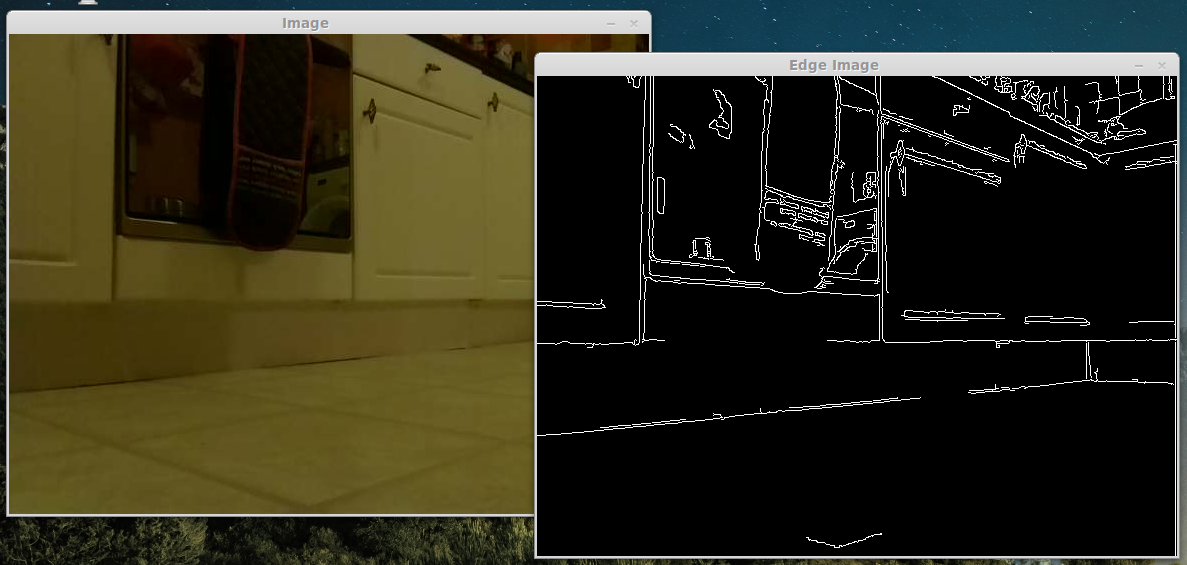

One of the really exciting thing about using the Pi for robotics, is that it has a good standard camera, and enough processing power to run some computer vision algorithms. The example file get_image.py shows how to get an image from the camera, and then use the OpenCV library to perform edge detection on it.
Run it as follows
examples/get_image.py ROBOT_IP_ADDRESS
Small Images
The Pi can run computer vision algorithms, but the processing power of its CPU is very limited when compared to most laptops and desktop PCs. One crude but effective way to speed up a lot of computer vision algorithms is simply to run them on smaller images. To support this, the py_websockets_bot library also offers routines to stream ‘small’ images which have been reduced in size on the GPU of the Pi. The standard camera images from the robot are 640×480, and the small images are 160×120.

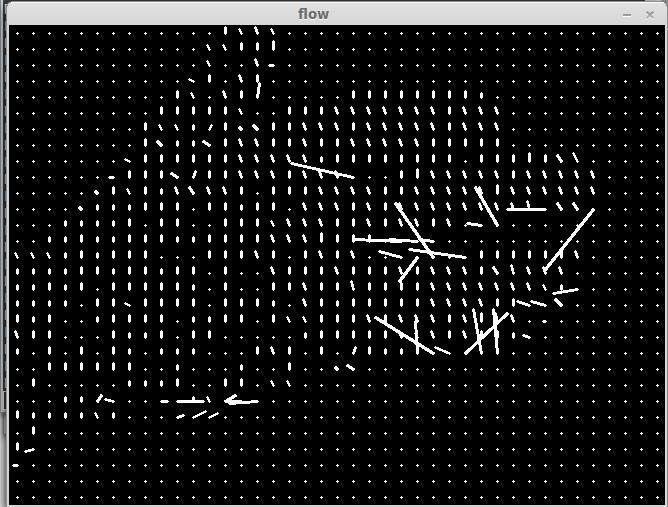

Getting Motion Vectors (Optical Flow) from the Robot’s Camera
The Raspberry Pi contains a very capable GPU which is able to encode images from the Pi camera into H264 video in real time. Recently, the clever people at Pi towers added a feature to the Pi’s firmware that allows the vectors generated by the motion estimation block of the H264 encoder to be retrieved. What this means, is that it’s possible to get your Pi to calculate the optical flow for its camera images, practically for free! (0% CPU) We haven’t managed to do anything cool with this yet, but we’ve provided routines to retrieve them from the camera so that other people can.
To see this for yourself, run the following example
examples/display_motion_vectors.py ROBOT_IP_ADDRESS
Taking Things Further
Hopefully you can see that there are lots of possibilities for creating cool behaviours for your robot using the py_websockets_bot library and OpenCV. For example, you could write a script to get the robot to drive around your home. Perhaps you could get it to act as a sentry bot, emailing you an image if it detects motion. Or perhaps you could get it to detect and respond to people using face detection.
You can get more details about the capabilities of py_websockets_bot in its documentation here, and also the documentation of OpenCV can be found here. If you have any questions about the py_websockets_bot library, please post on our forums, You can also use our forums as a place to share your robotic projects with the rest of the world.
