Shared projects

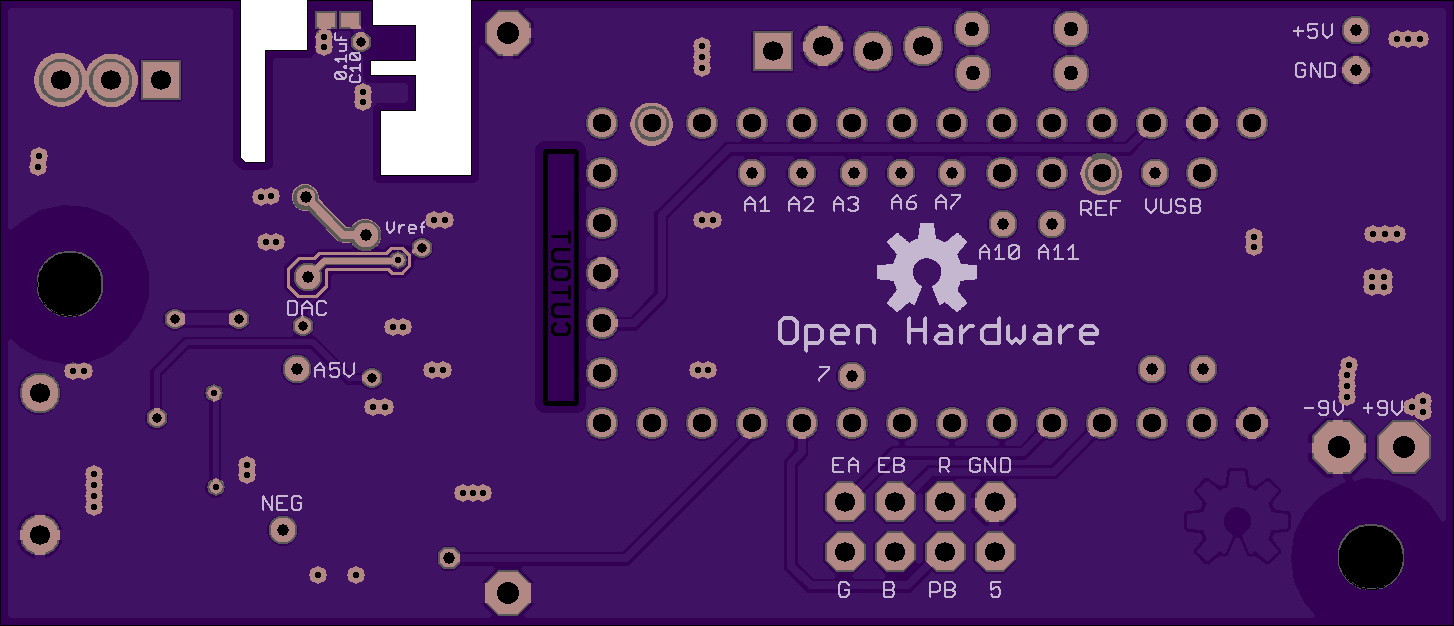

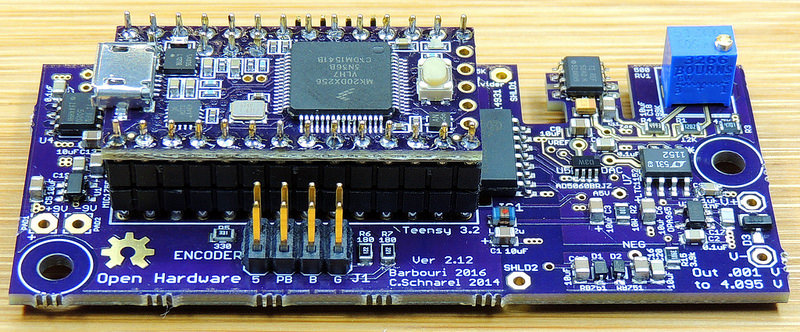

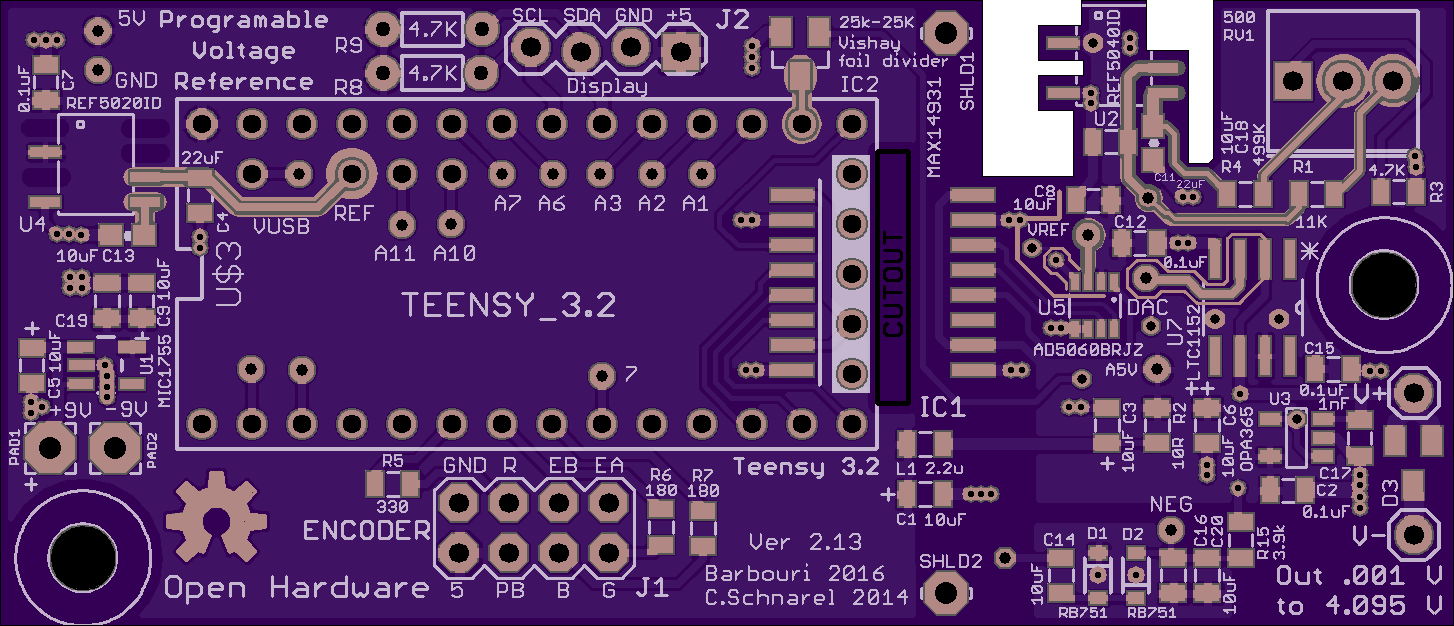

Programmable Voltage Reference V2.13
by
Barbouri.
2
layer board of
2.91x1.25
inches
(73.79x31.78
mm).
Shared on
July 22nd, 2016 18:33.
Programmable Voltage Reference w/ Teensy 3.2 Version 2.13
http://www.barbouri.com/2016/07/21/programmable-voltage-reference-v2-12-assembly/

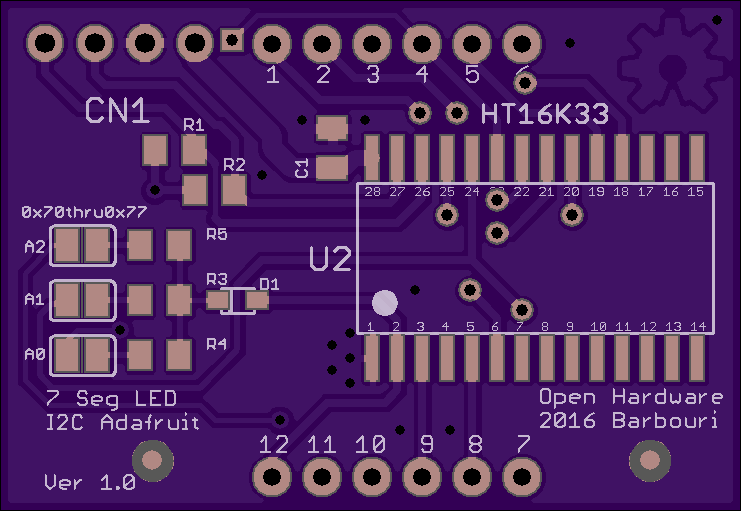

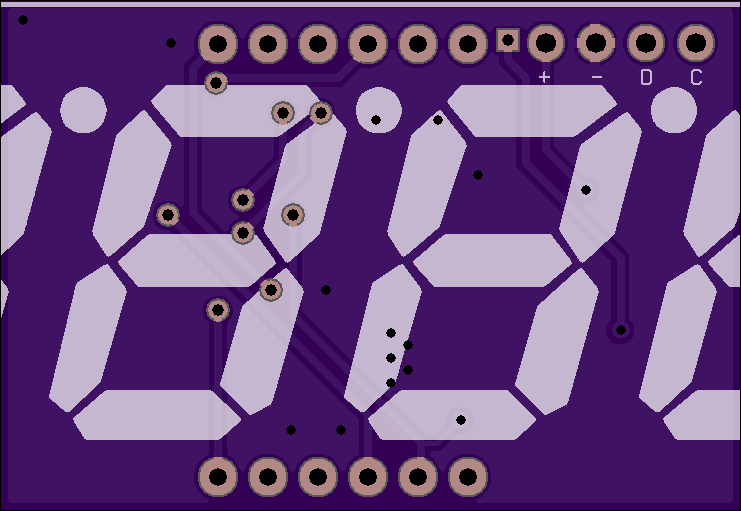

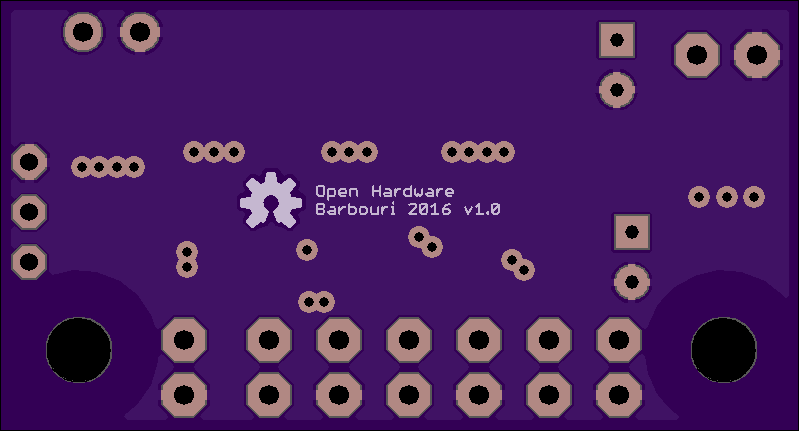

7 Segment X4 I2C LED backpack V1.0
by
Barbouri.
2
layer board of
1.48x1.02
inches
(37.62x25.93
mm).
Shared on
July 19th, 2016 15:06.

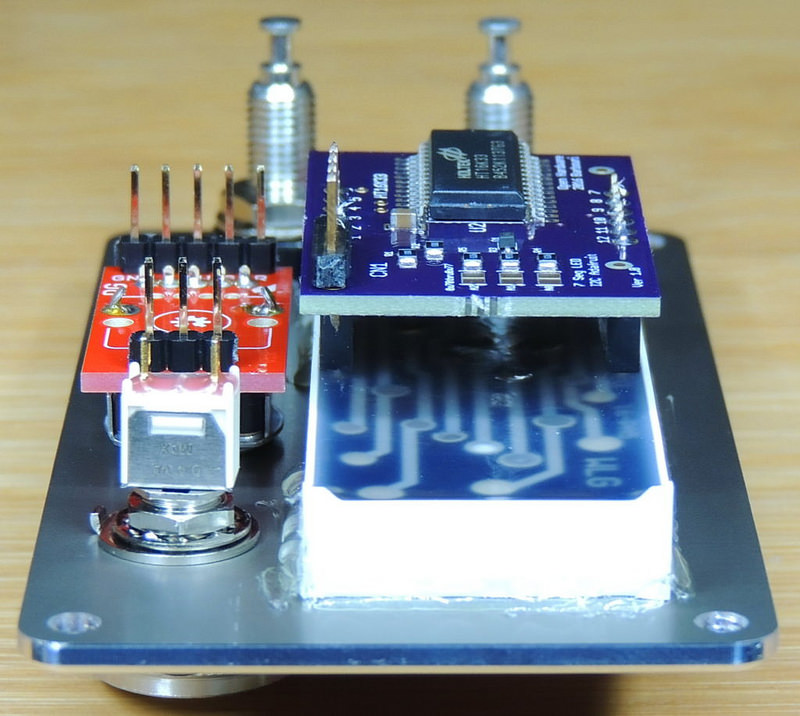

7 Segment LED x4 Sparkfun 12 pin display I2C backpack based on Adafruit display backpack. Version 1.0
http://www.barbouri.com/2016/07/08/programmable-voltage-reference-case/

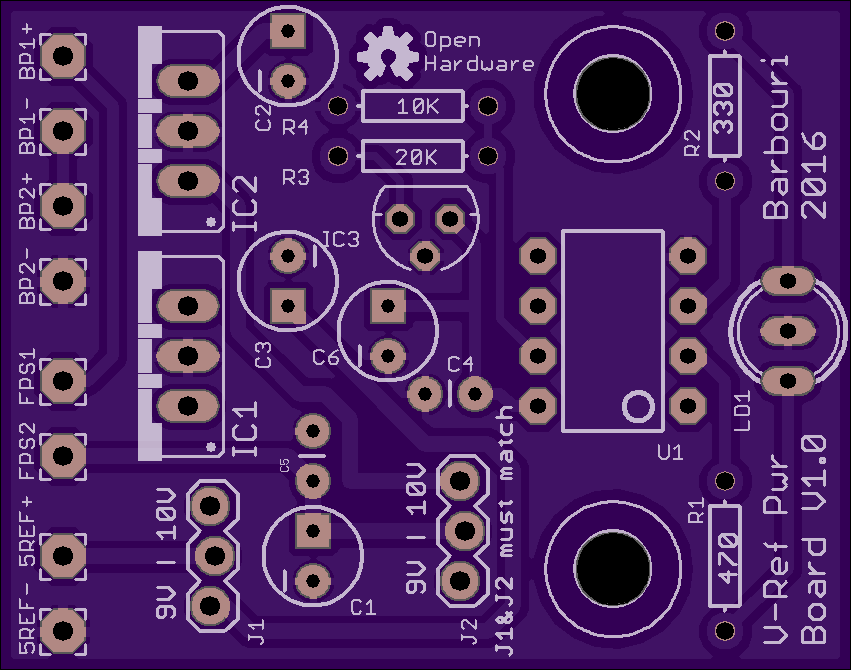

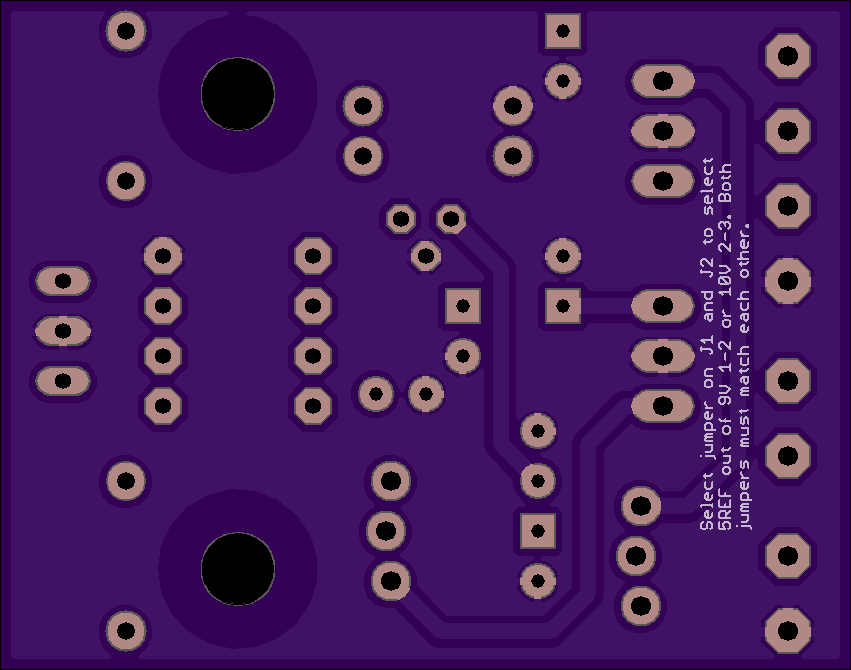

V-Ref Power V1.0
by
Barbouri.
2
layer board of
1.70x1.34
inches
(43.18x33.99
mm).
Shared on
June 10th, 2016 03:04.
Voltage Reference power, monitor and control with 9 & 10 volt selection

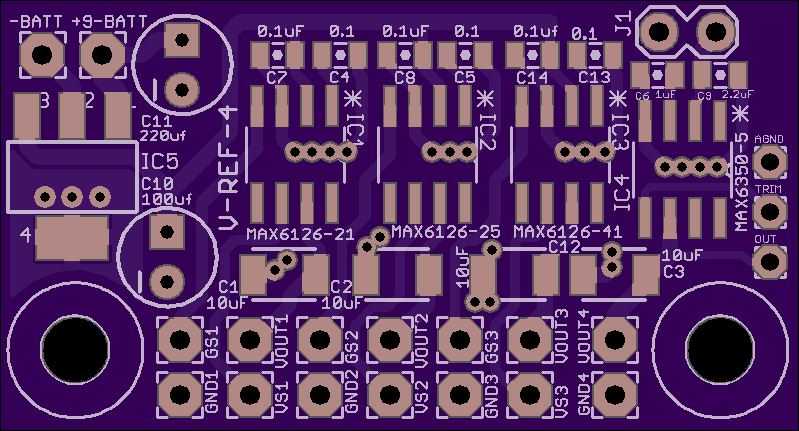

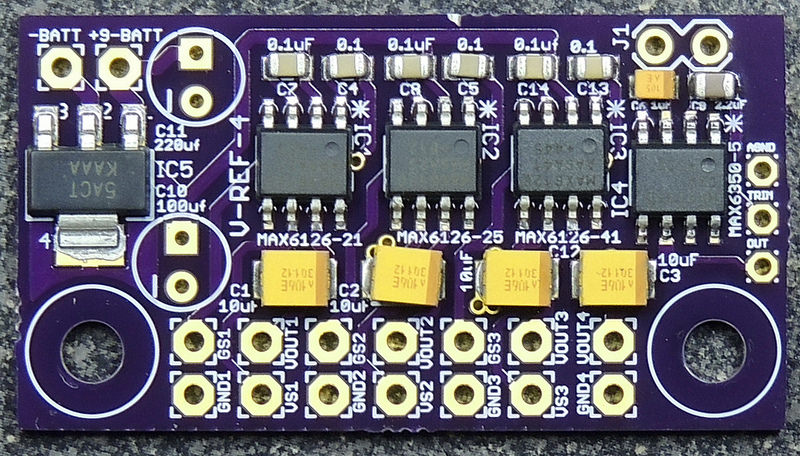

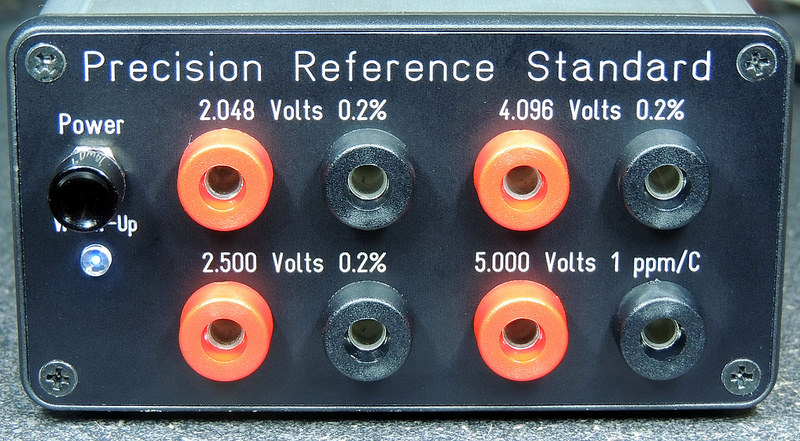

VREF-4 Ver 1.1
by
Barbouri.
2
layer board of
1.60x0.86
inches
(40.59x21.84
mm).
Shared on
June 10th, 2016 03:00.
This is a DIY 4 Output precision voltage reference.
Barbouri board version 1.51
http://www.barbouri.com/2016/06/09/voltage-reference-quad-project/
http://www.barbouri.com/2016/06/09/voltage-reference-quad-project/

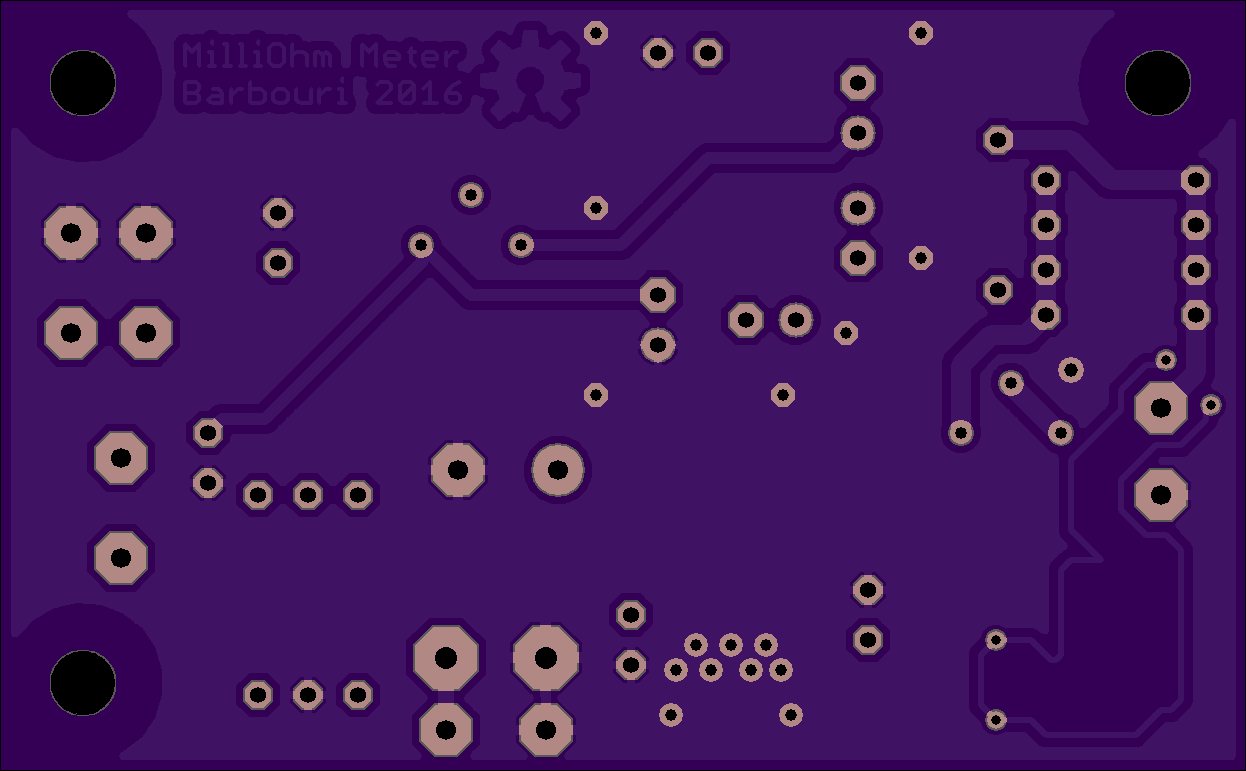

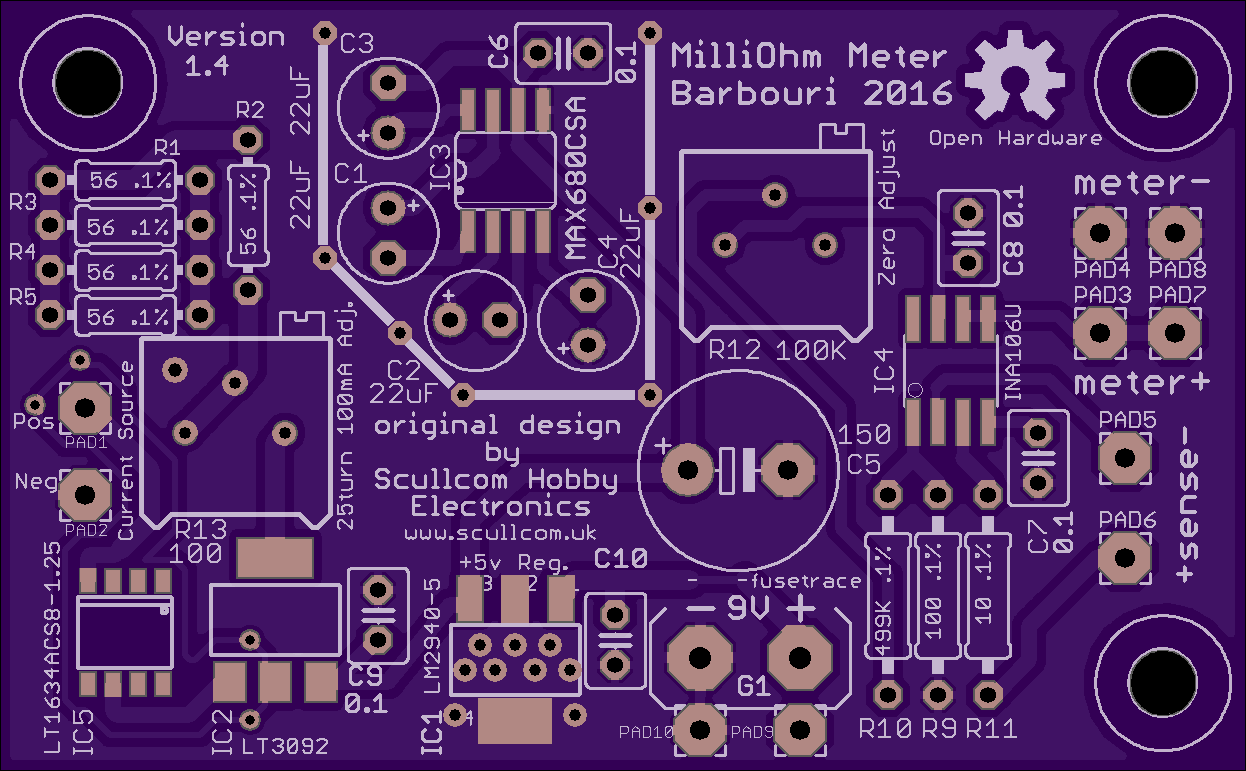

Milliohm Meter Version 1.41
by
Barbouri.
2
layer board of
2.49x1.54
inches
(63.25x39.14
mm).
Shared on
May 27th, 2016 04:02.
Milliohm Meter Version 1.41
This is a DIY milliohm meter that was originally designed by
Scullcom Hobby Electronics and presented on Youtube.
http://www.barbouri.com/2016/05/27/milliohm-meter/
