Shared projects

Millivolt Meter Version 1.51

by Barbouri.

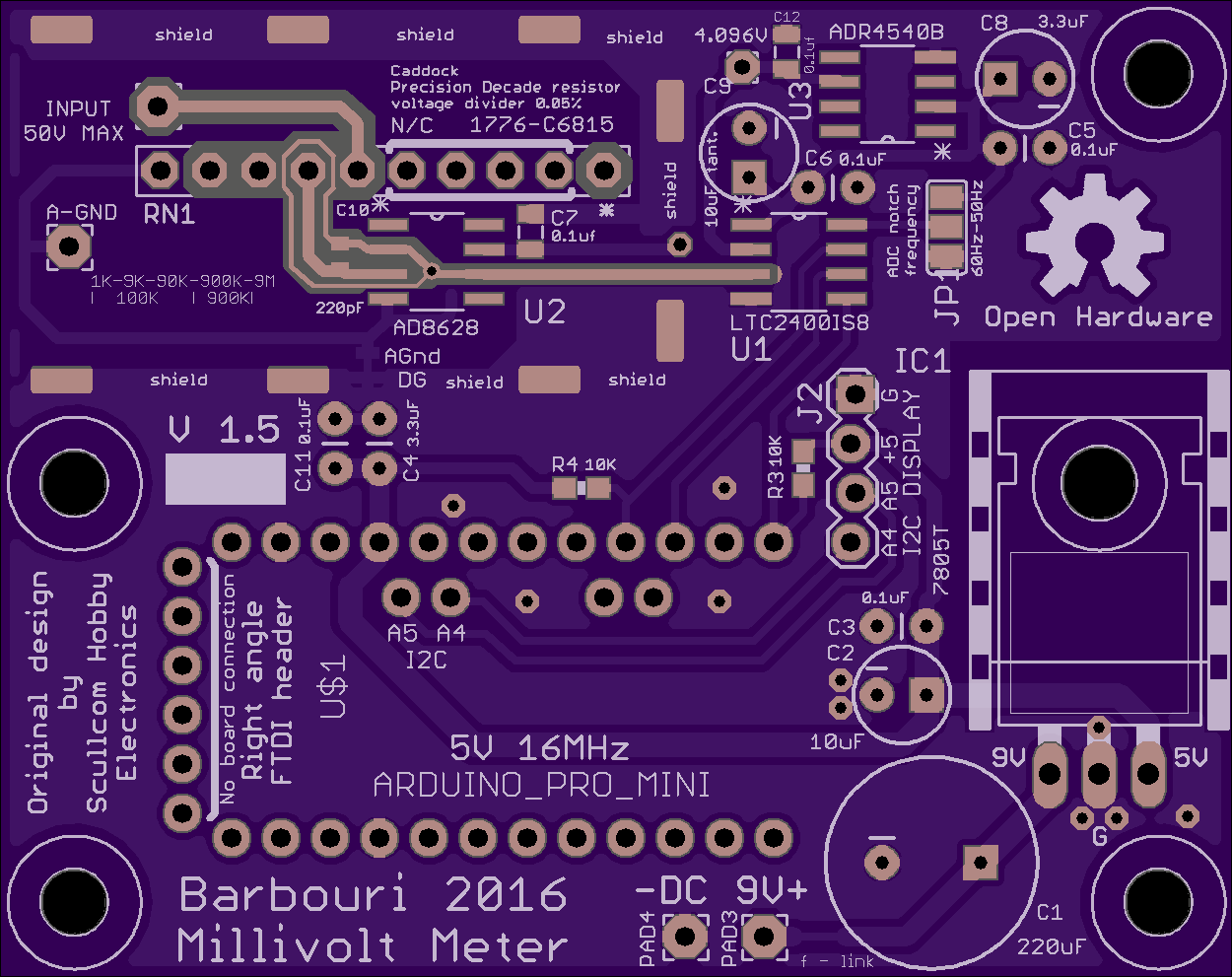

Top

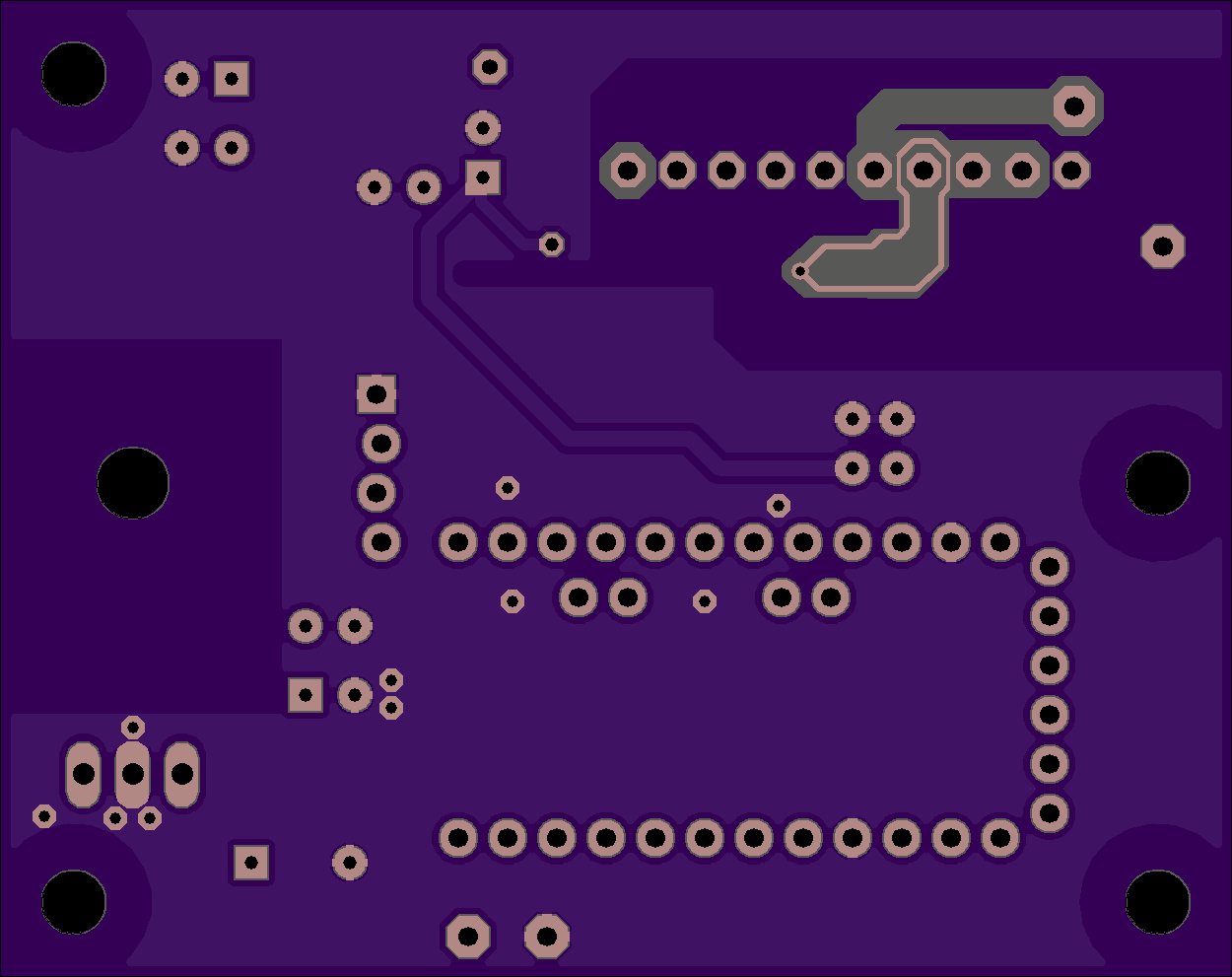

Bottom

2 layer board of 2.50x1.98 inches (63.42x50.29 mm).
Shared on May 15th, 2016 04:00.

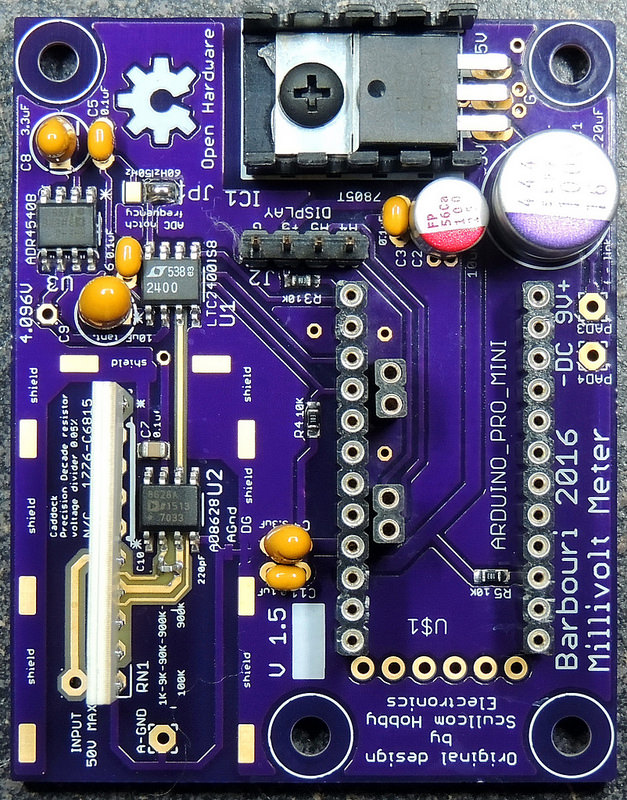

This is a DIY millivolt meter that was originally designed by Scullcom Hobby Electronics and presented on Youtube. Barbouri board version 1.51 http://www.barbouri.com/2016/05/26/millivolt-meter/ Millivolt board V 1.51 top

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

Open EVSE V4.23 DIY

by Barbouri.

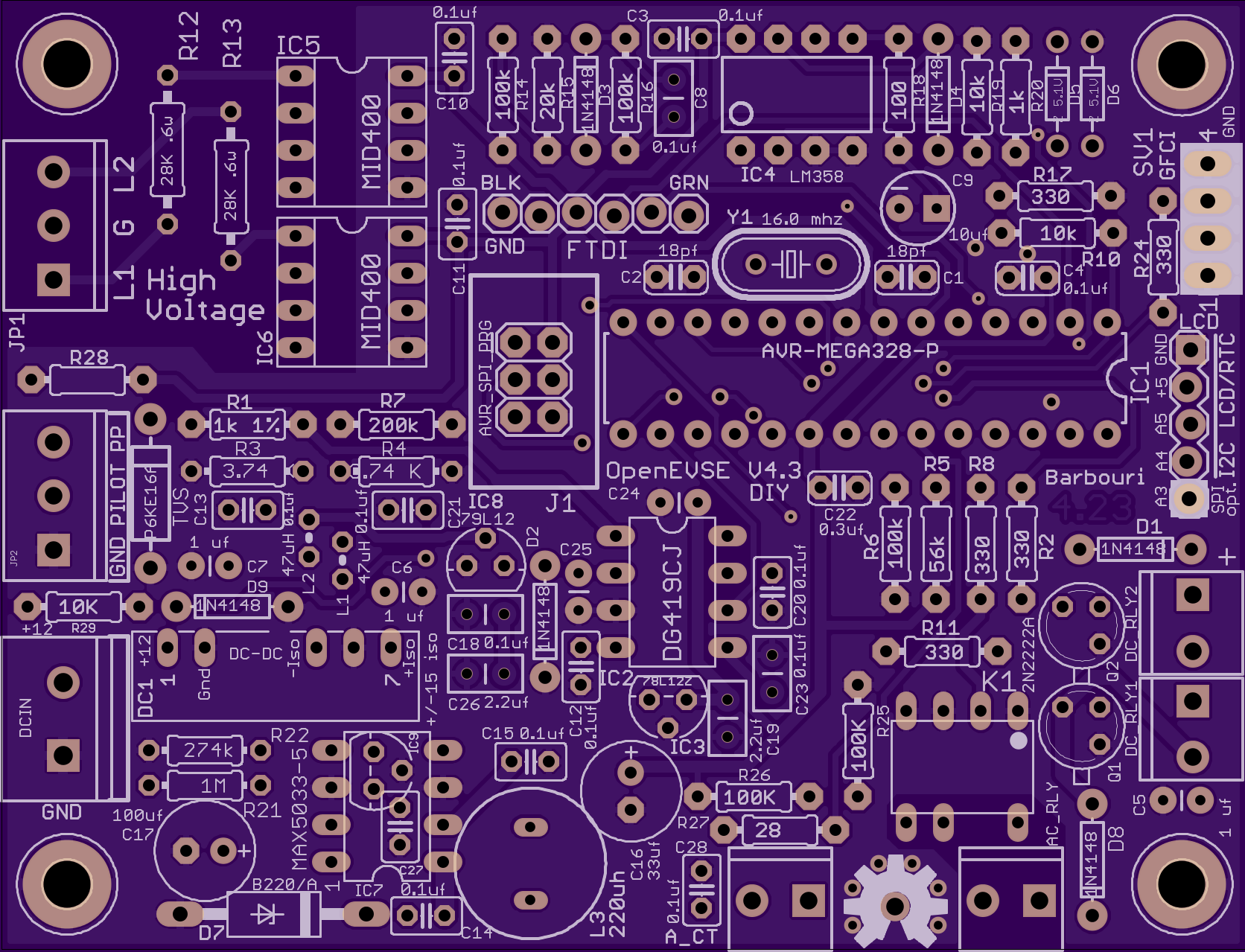

Top

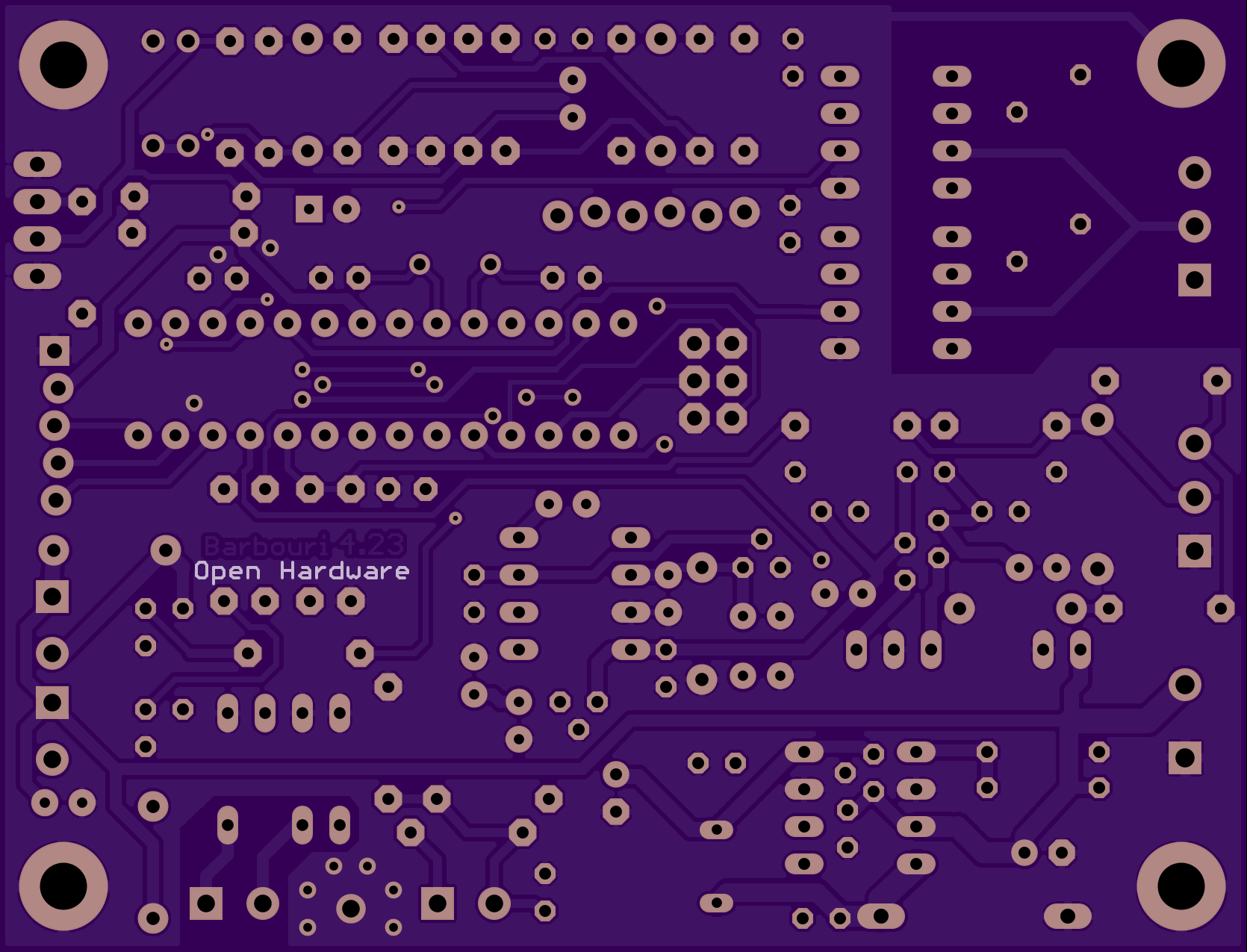

Bottom

2 layer board of 3.34x2.55 inches (84.86x64.80 mm).
Shared on November 10th, 2015 04:07.

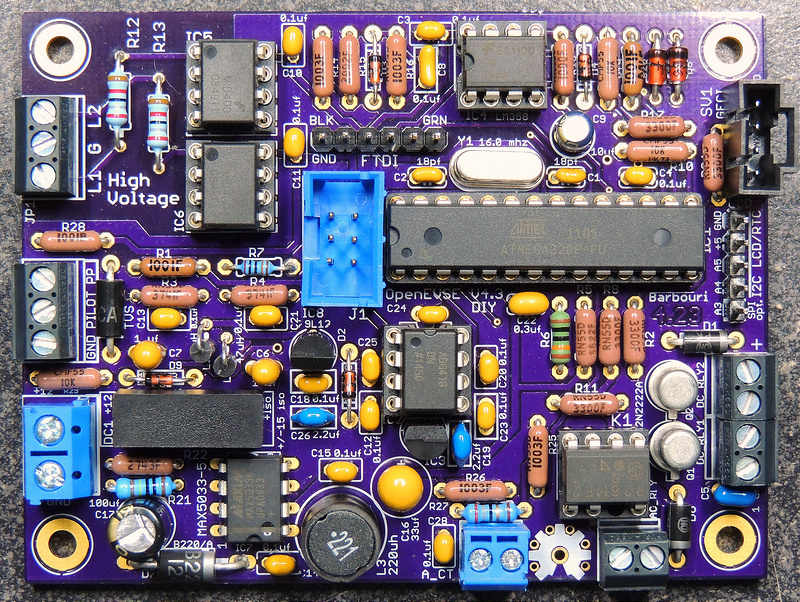

DIY Open EVSE version 4.23 w/ pwr options http://www.barbouri.com/ Open EVSE DIY board Version 4.23

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

LeafCAN LCD/OLED+ Encoder

by Barbouri.
Top
Bottom

2 layer board of 1.77x1.24 inches (44.98x31.37 mm).
Shared on August 9th, 2013 03:10.

LeafCAN V2 LCD/OLED RGB Encoder SW

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

OpenEVSE Display V 4.2

by Barbouri.
Top
Bottom

2 layer board of 3.15x1.42 inches (80.04x36.09 mm).
Shared on August 9th, 2013 03:08.

Open EVSE RGB 2 wire Display with RTC

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
