Shared projects

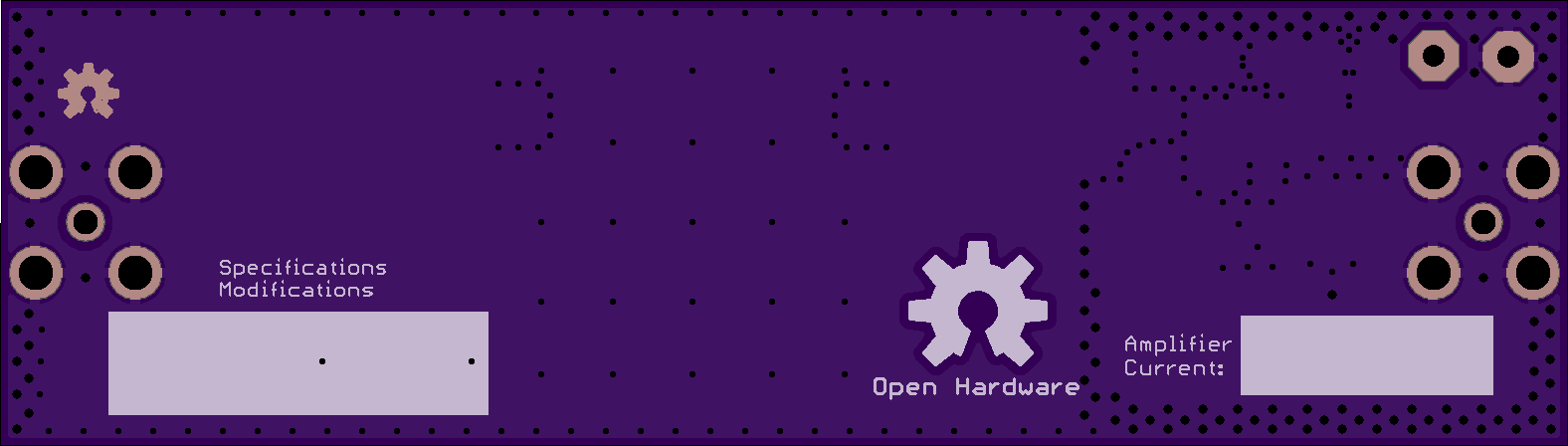

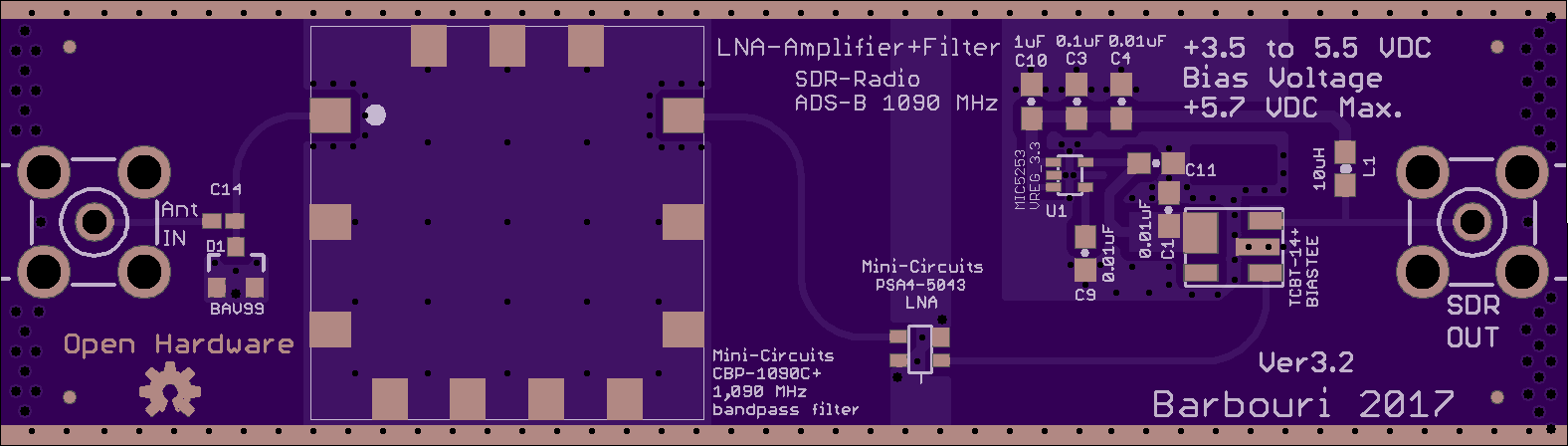

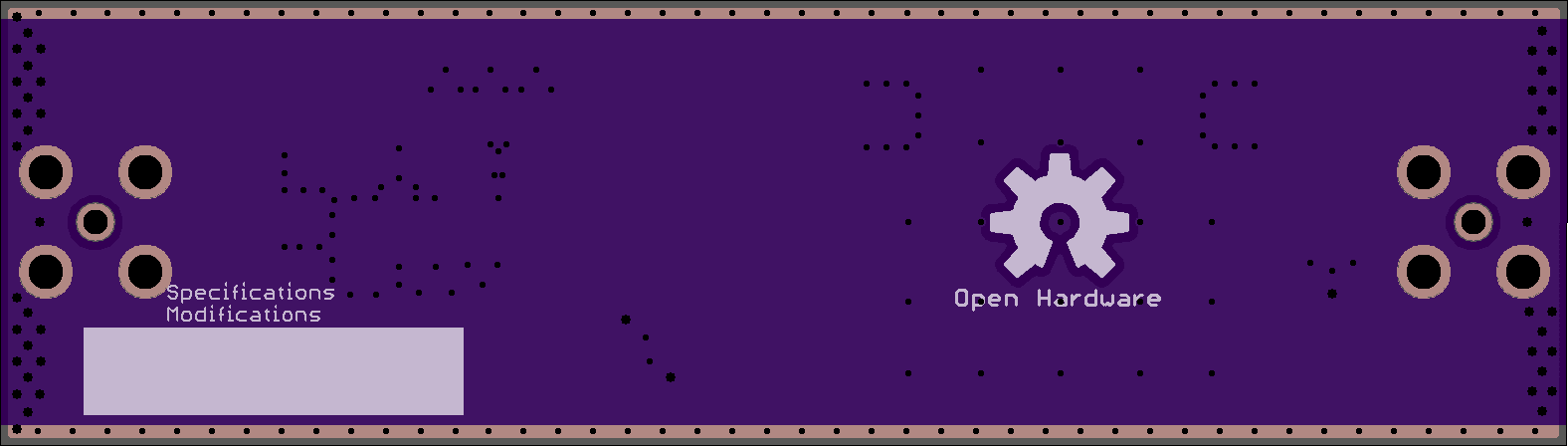

LNA60 3V3 Case 1090MHz Filter Ver-3.2

by Barbouri.
Top
Bottom

4 layer board of 3.15x0.89 inches (80.04x22.71 mm).
Shared on April 4th, 2017 03:00.

Low Noise Amplifier for SDR Radio ADS-B reception Ver. 3.2 with 1090MHz ceramic-coaxial-resonator based bandpass filter, for aluminum case 25x25x80mm mount and 5 volt bias power. This board uses mostly the same components as the Ver 2.3 board linked below, but places the bandpass filter before the LNA and also requires 5VDC external bias power thru the output SMA connector. NOT-TESTED https://www.barbouri.com/2017/03/12/low-noise-amplifier-for-sdr-radio-ads-b-ver-2-3-with-1090mhz-ceramic-filter/

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

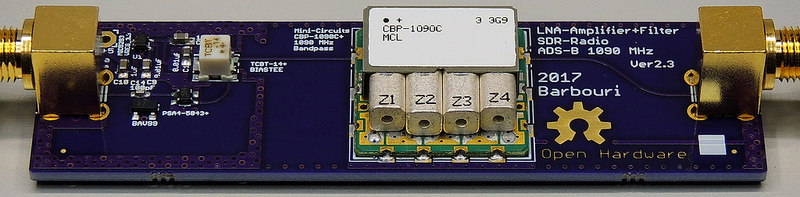

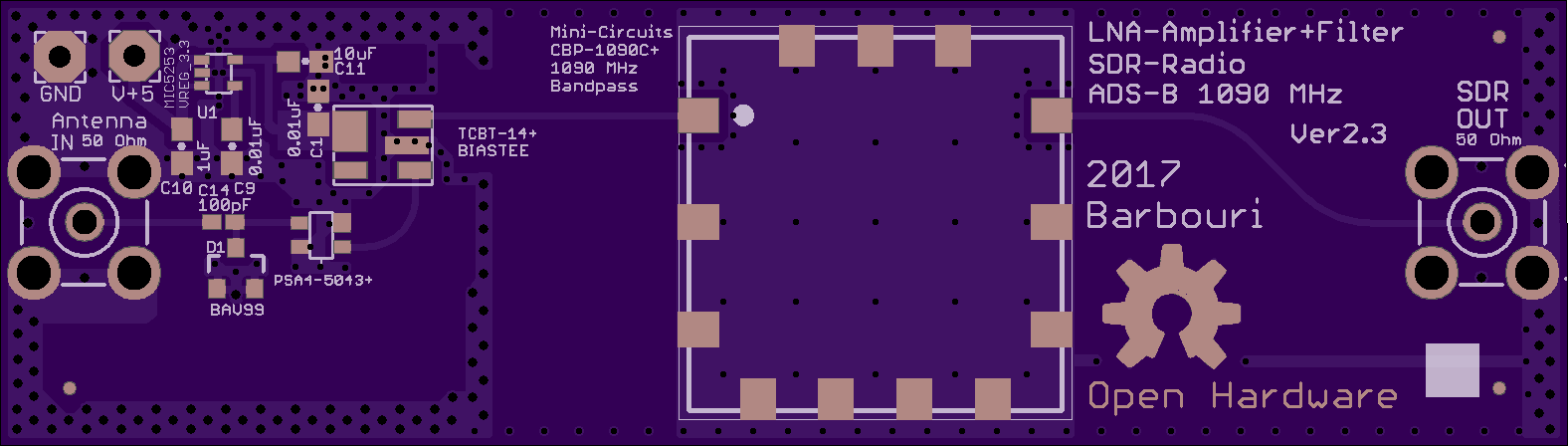

SDR ADS-B LNA and 1090MHz Filter Ver-2.3

by Barbouri.
Top
Bottom

4 layer board of 3.15x0.89 inches (80.04x22.71 mm).
Shared on March 13th, 2017 02:55.

Low Noise Amplifier for SDR Radio ADS-B reception Ver. 2.3 with 1090MHz ceramic-coaxial-resonator based bandpass filter, for aluminum case 25x25x80mm mount and 5 volt power. https://www.barbouri.com/2017/03/12/low-noise-amplifier-for-sdr-radio-ads-b-ver-2-3-with-1090mhz-ceramic-filter/ Voltage Reference Quad Project

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

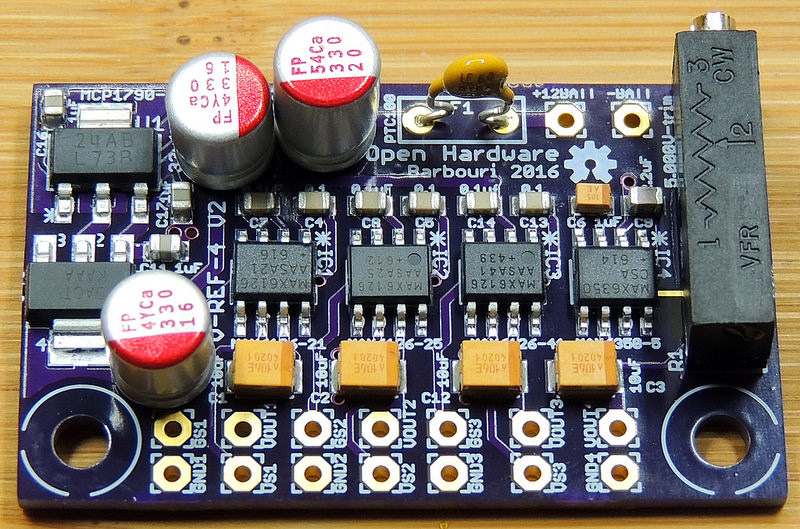

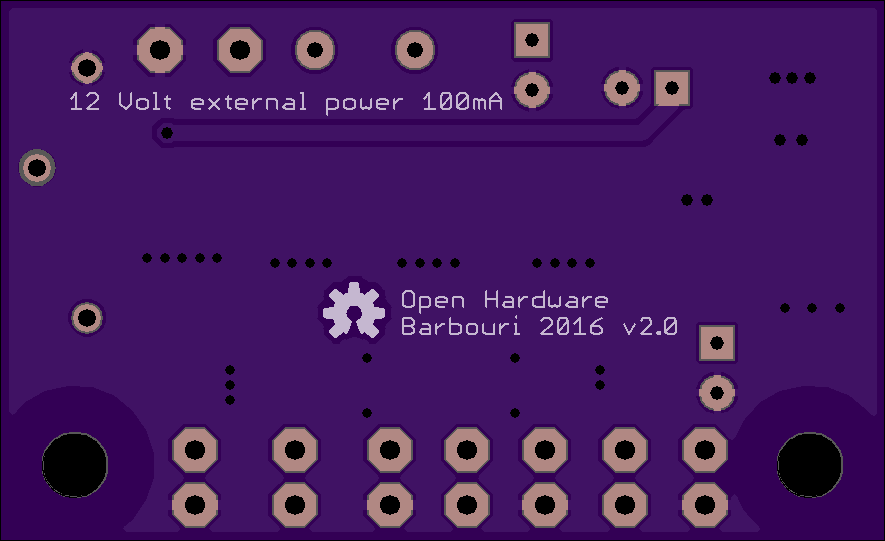

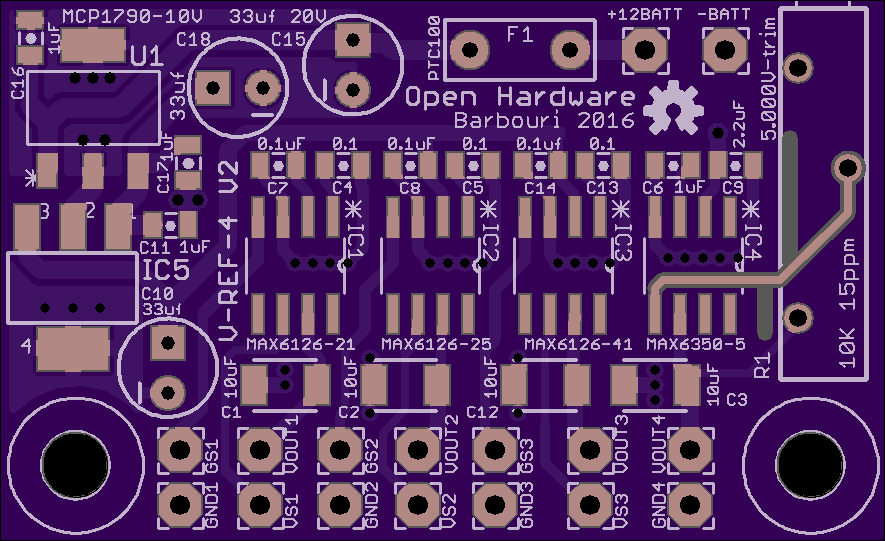

Vref-4 Version 2.0 ext Pwr

by Barbouri.
Top
Bottom

2 layer board of 1.77x1.08 inches (44.91x27.43 mm).
Shared on December 25th, 2016 19:18.

Quad Voltage Reference V 2.0 external 12Vdc power https://www.barbouri.com/2016/12/25/voltage-reference-quad-project-2-part-1/ Voltage Reference Quad Project

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

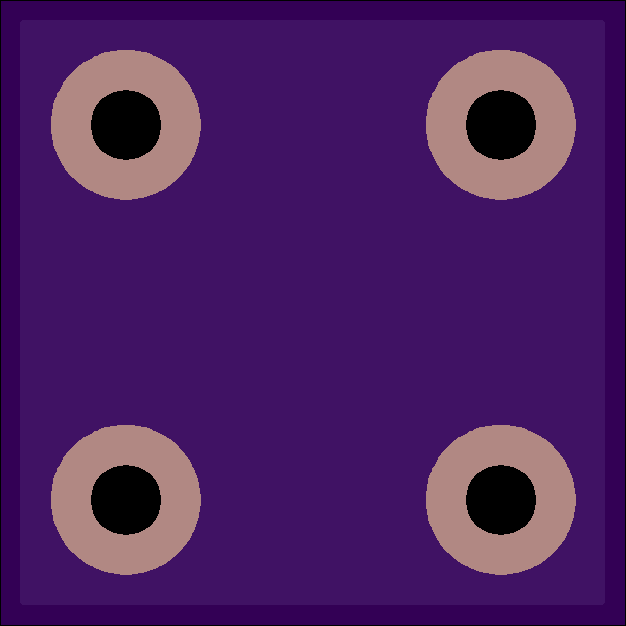

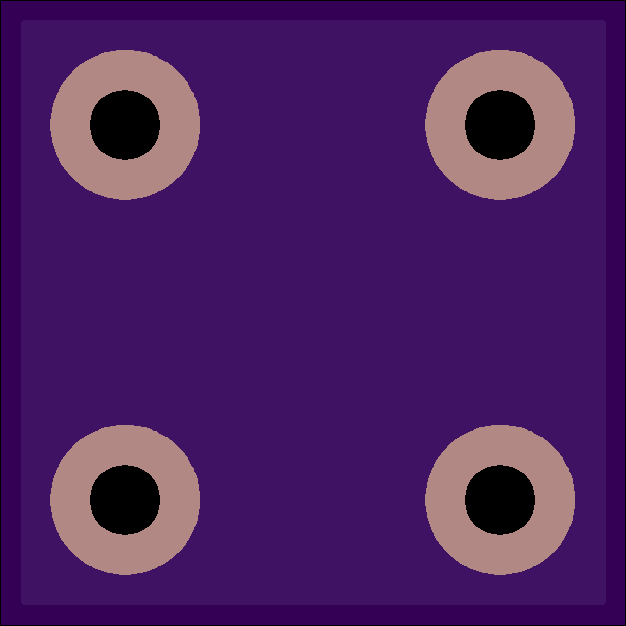

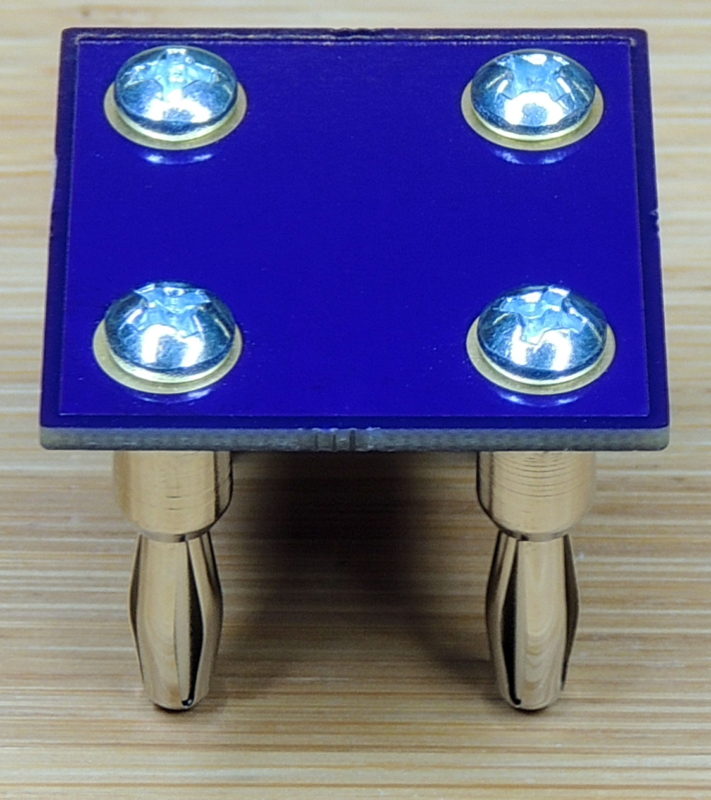

4 Pin Shorting Board V1

by Barbouri.
Top
Bottom

2 layer board of 1.25x1.25 inches (31.78x31.78 mm).
Shared on November 24th, 2016 21:32.

Four Pin Shorting for Keithley 2015 / 20XX https://www.barbouri.com/2016/12/29/4-wire-dmm-shorting-plug/ Voltage Reference Quad Project

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

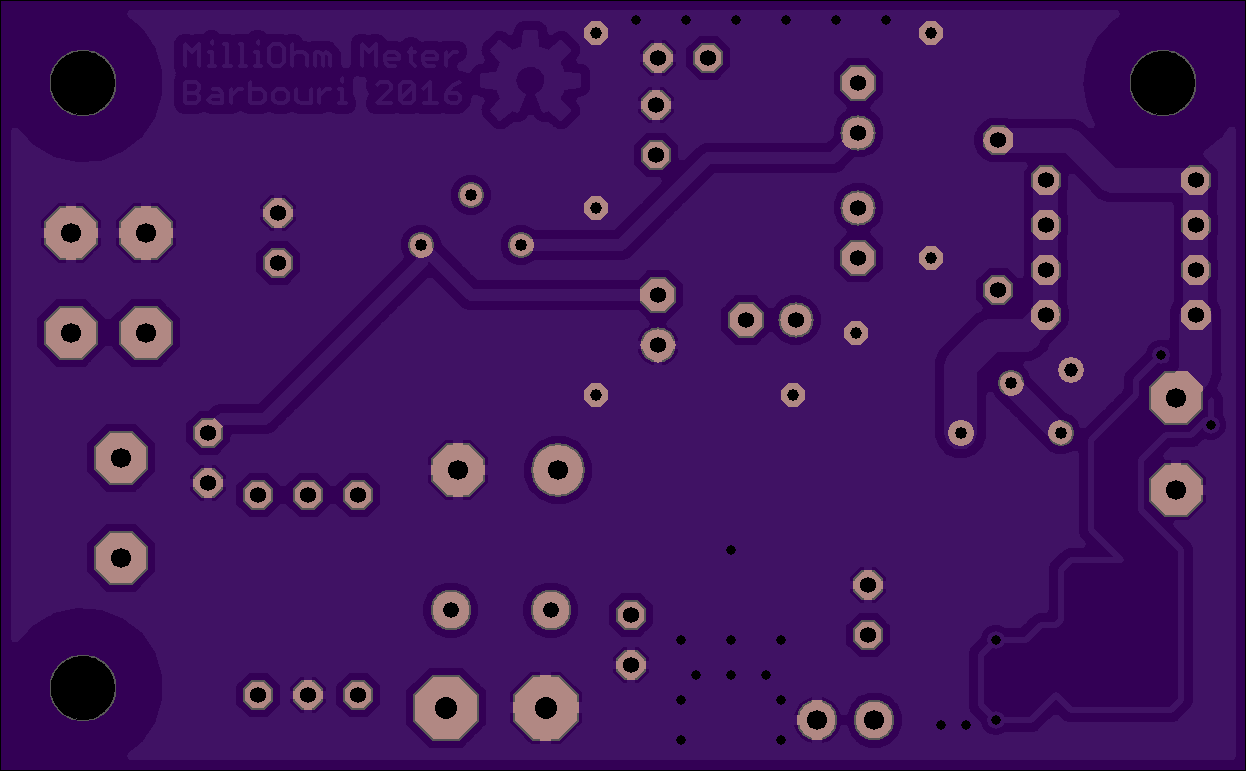

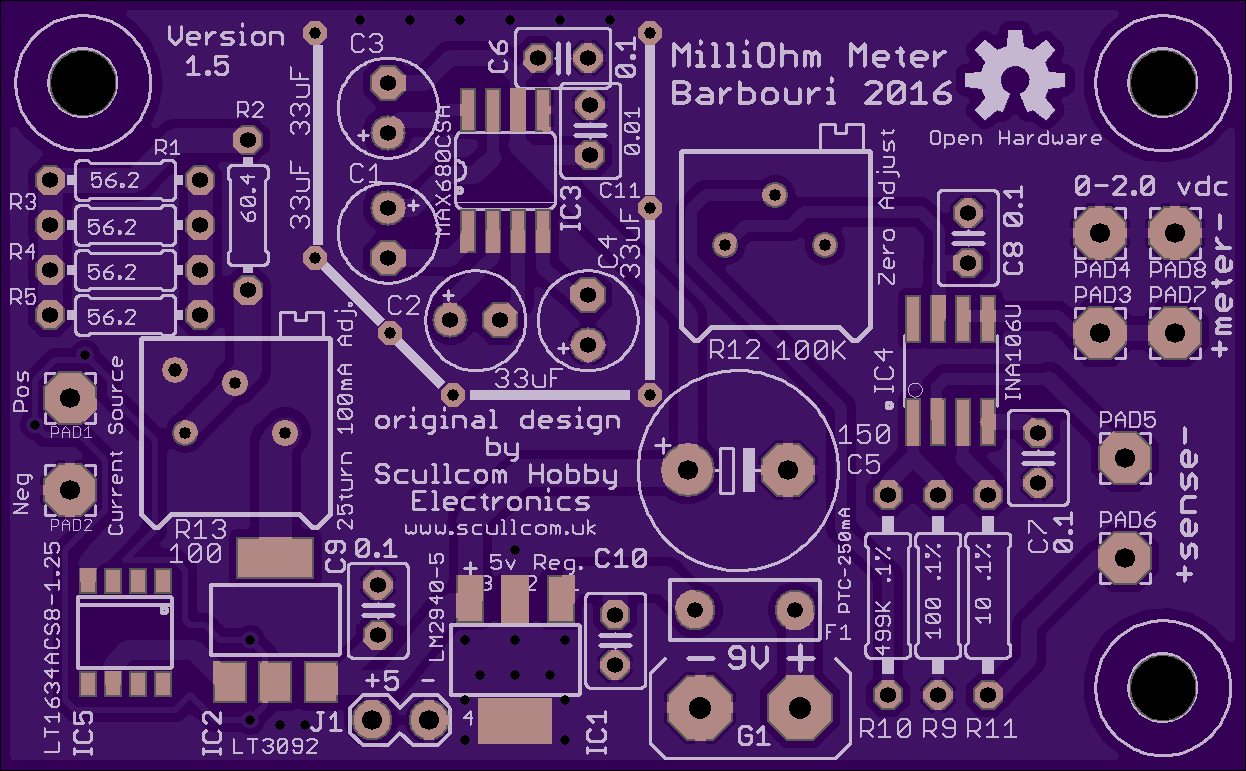

Milliohm Meter Version 1.5

by Barbouri.
Top
Bottom

2 layer board of 2.49x1.54 inches (63.25x39.14 mm).
Shared on September 26th, 2016 02:28.

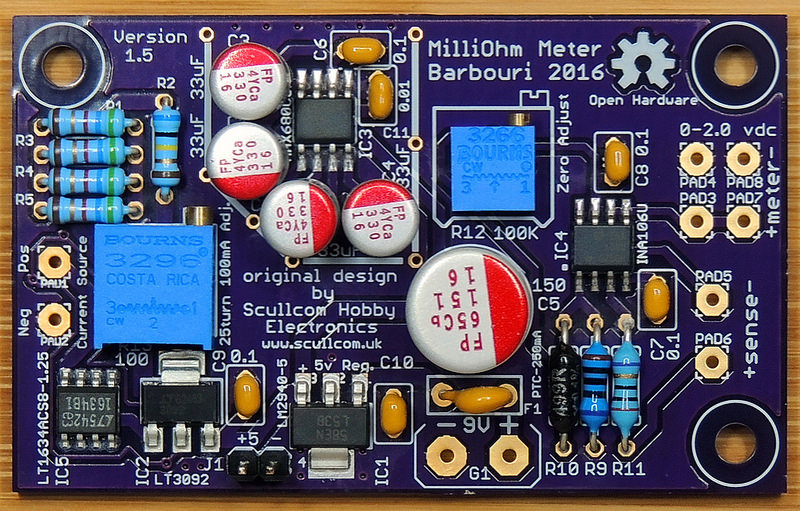

Milliohm Meter Version 1.5 This is a DIY milliohm meter that was originally designed by Scullcom Hobby Electronics and presented on Youtube. Updated board with display power connector, PTC fuse, and current set resistors http://www.barbouri.com/2016/10/09/milliohm-meter-version-1-5/ Milliohm board top V1.5 pictured

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
