FORD Vehicle Auxiliary Aftermarket Head Unit & Ambient Lighting Controller - Arduino Shield.

by BennitoJuarez.

2 layer board of 2.72x2.12 inches (69.01x53.77 mm).
Shared on May 1st, 2017 17:12.

Auxiliary controller shield for aftermarket head units. Requires Arduino compatible microcontroller.

For use with turning on Ford factory installed subwoofer amplifiers that use 5V remote switching instead of the 12v supplied by aftermarket head units. Also adds ambient lighting controls and parking brake detection bypass capabilities for aftermarket stereo head units with video screens/settings editing that require parking brake to be set to proceed.

Features:

  • Parking brake emulation via relay, (to access video and settings normally disabled when parking brake is not set)
  • Delayed 5v Amplifier remote signal, (used to eliminate “sub pop” when vehicle is turned on
  • Adds the ability to add and control ambient lighting using adafruit’s NeoPixels, or equivalent. (Emulates Ford Sync ambient lighting)

    Supports GRB/RGB & GRBW Neopixels, (requires external 5v 1A source)

  • Supports (2) push buttons with or without RGB LEDs for ambient lighting control or custom inputs
  • Added SD card reader for storing settings between powered off states, (instead of using EEPROM)
  • Made to work with FORD vehicles with premium sound installed, but can easily be used with other vehicles.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

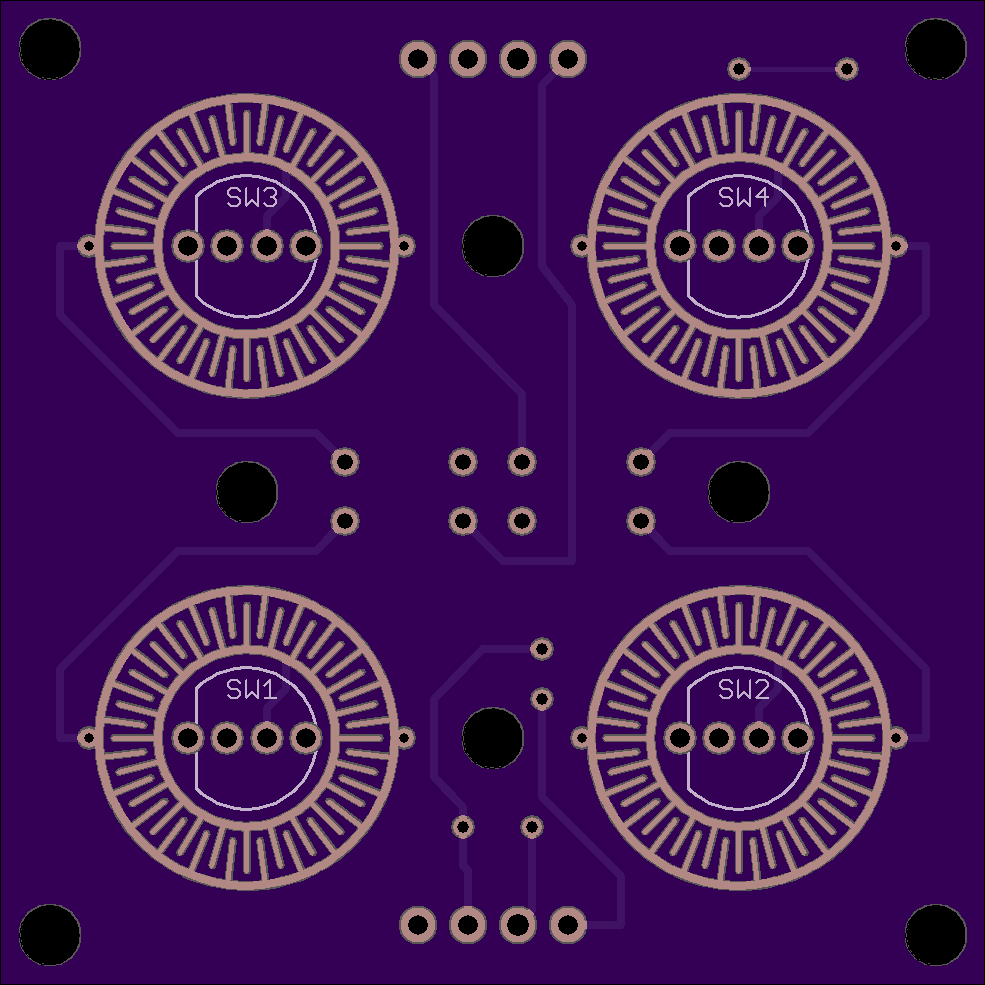

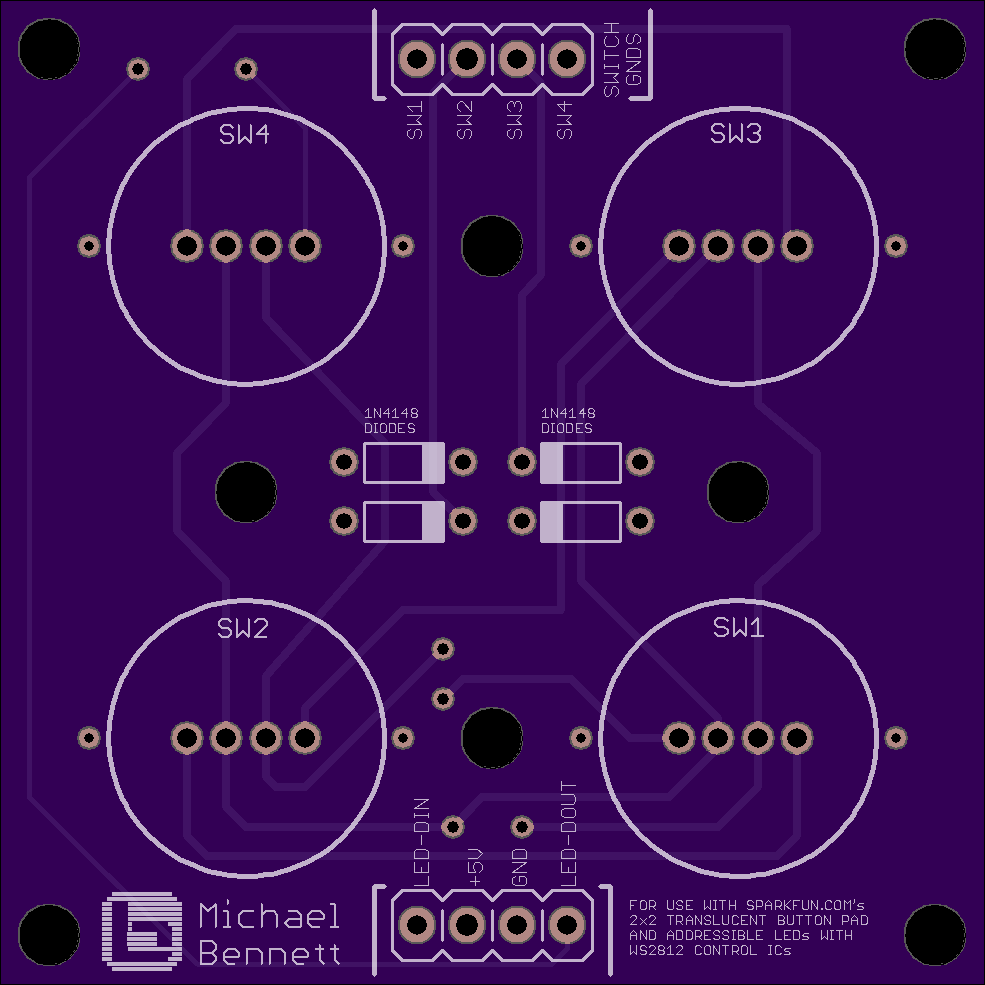

Sparkfun Compatible 2x2 Button Pad.brd

by BennitoJuarez.

2 layer board of 1.97x1.97 inches (50.01x50.01 mm).
Shared on January 2nd, 2017 02:11.

Button pad to replace the standard Sparkfun 2x2 button board. This board uses addressable LEDs with the WS2812 control IC built-in. (NOTE: diodes are only needed for multiple-board matrices, otherwise just use jumper wires).

BOM

Sparkfun 2x2 ButtonPad, LED compatible. $2.95 ea.
LED-RGB Addressible, PTH 5mm diffused - 5 pack. $2.95 ea.
1N4148 Diodes $0.15 ea. (optional)
JST SM 4-pin plug cable $1.50ea

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

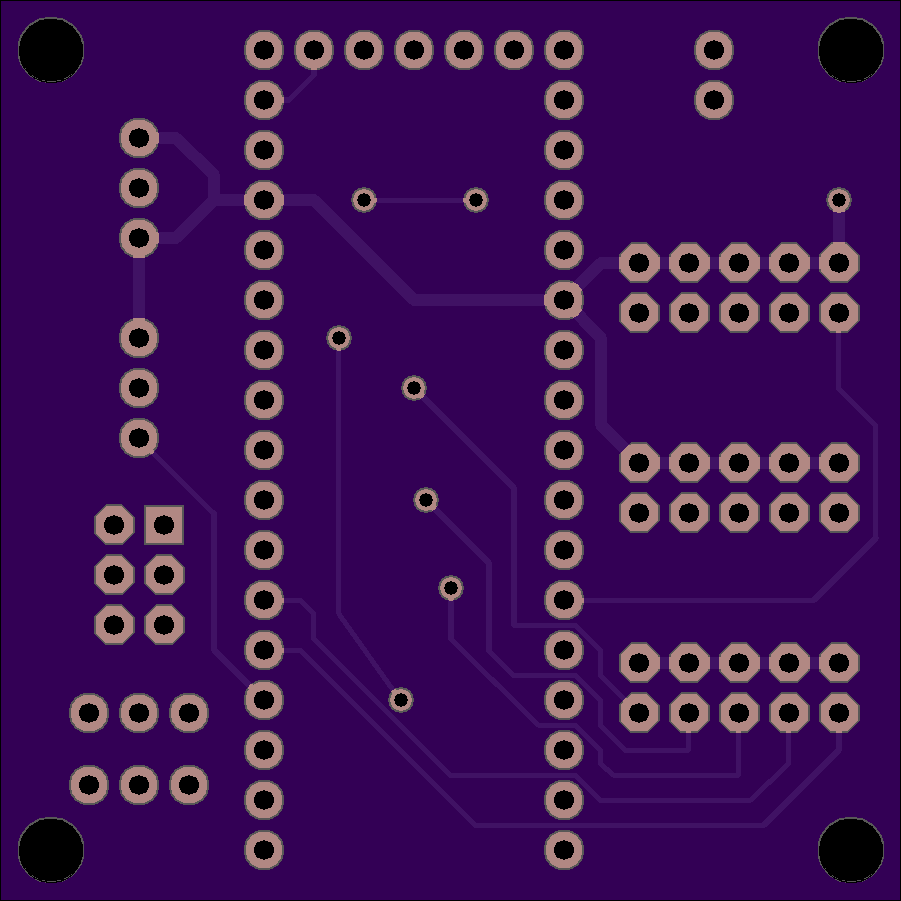

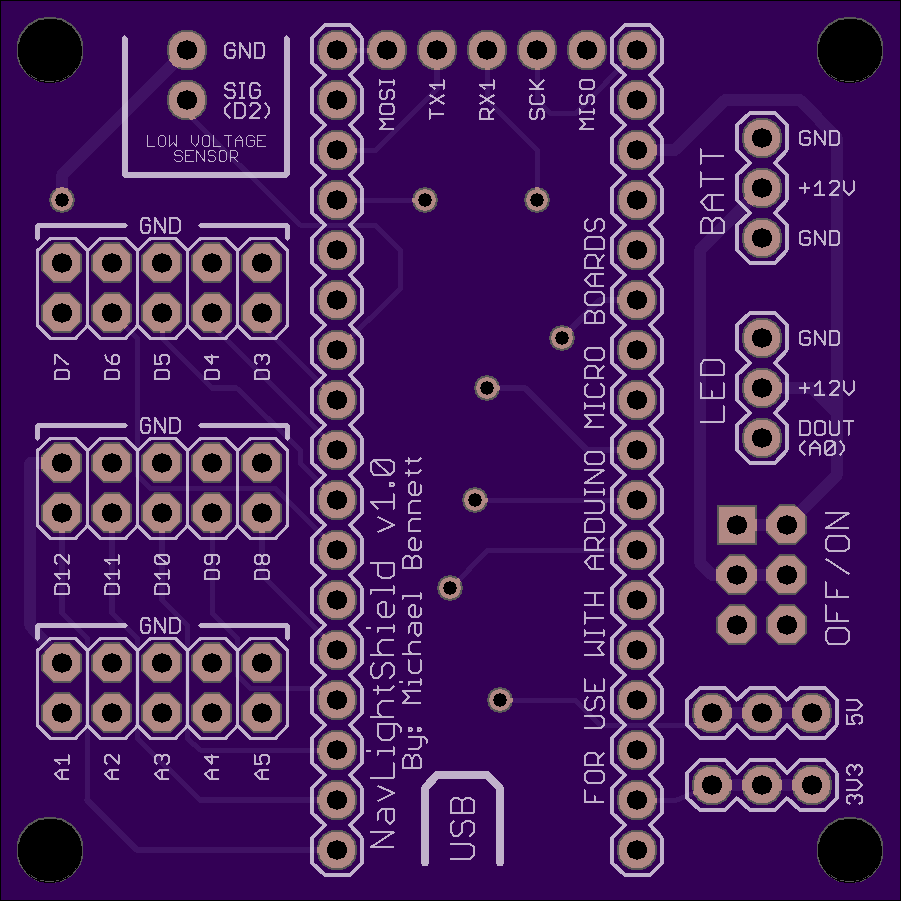

NavLights Shield v1.0

by BennitoJuarez.

2 layer board of 1.80x1.80 inches (45.72x45.72 mm).
Shared on December 27th, 2013 20:21.

RC RGB LED Strip Controller - Arduino Micro. Used to control LED RGB Strips by using one pin (serial data). Used mainly for multi-rotors and aircraft for night flying. Also breaks out the I/O pins for sensors and such.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
