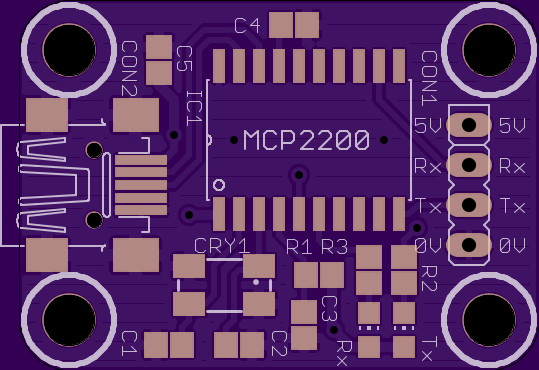

MCP2200 USB To UART 4 Output Pins

by CJackel.
Top
Bottom

2 layer board of 1.30x0.93 inches (33.02x23.49 mm).
Shared on June 4th, 2014 12:06.

C1,C2=18pF:C3,C5=100nF:C4=470nF:R1=10k:R2,R3=330R:IC1=MCP2200:CRY1=12MHz 5mmx3.2mm (Farnell 1841963):CON2=Mini USB (Farnell 2112367). All resistors, capacitors and LED’s are 0805. Remaining components/LED colours choosen to suit. An RJW and CRC production. http://www.microchip.com/wwwproducts/devices.aspx?dDocName=en546923

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

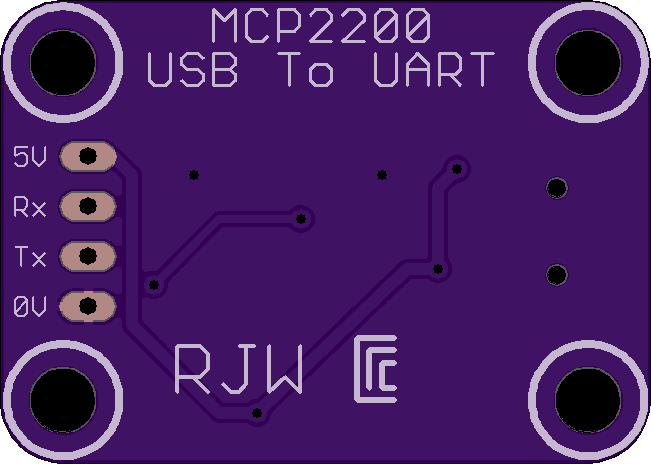

Microchip MCP2200 USB to UART

by CJackel.
Top
Bottom

2 layer board of 1.20x1.80 inches (30.48x45.72 mm).
Shared on May 29th, 2014 09:21.

BOM - C1,C2=22pF:C3,C5=100nF:C4=470nF:C6=10nF:R1=10k:R2,R3=330R:IC1=MCP2200:CRY1=12MHz:REG1=TC1262-3.3VDB(Optional). All resistors, capacitors and LED’s are 0805. Remaining components/LED colours choosen to suit. An RJW and CRC production. http://www.microchip.com/wwwproducts/devices.aspx?dDocName=en546923

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

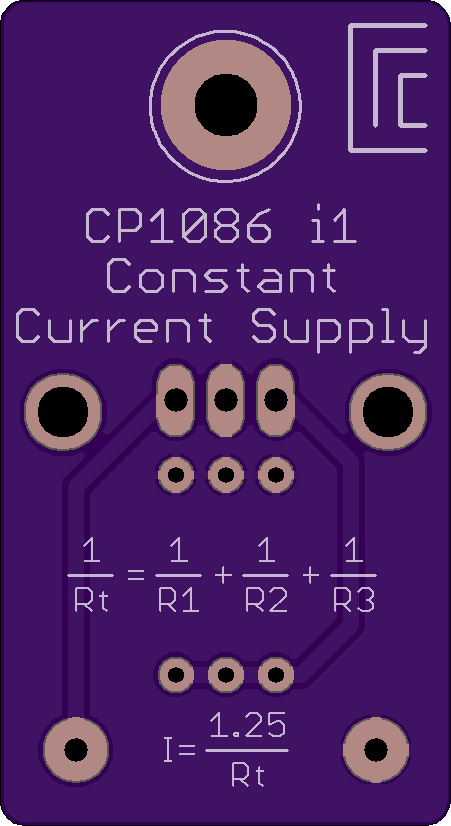

CP1086 i1

by CJackel.
Top
Bottom

2 layer board of 0.90x1.65 inches (22.89x41.94 mm).
Shared on May 21st, 2014 08:25.

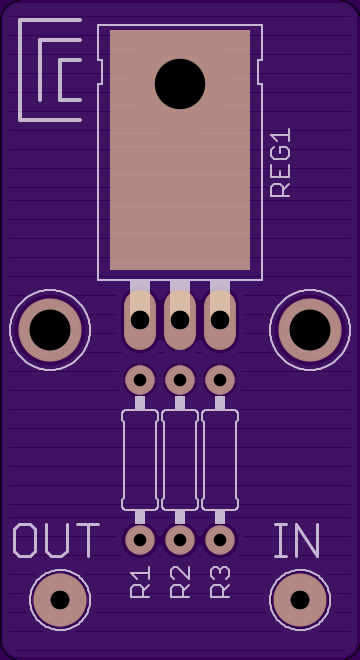

Constant Current Supply - Using an LM317 or equivelent regulator, ideal for LED’s

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

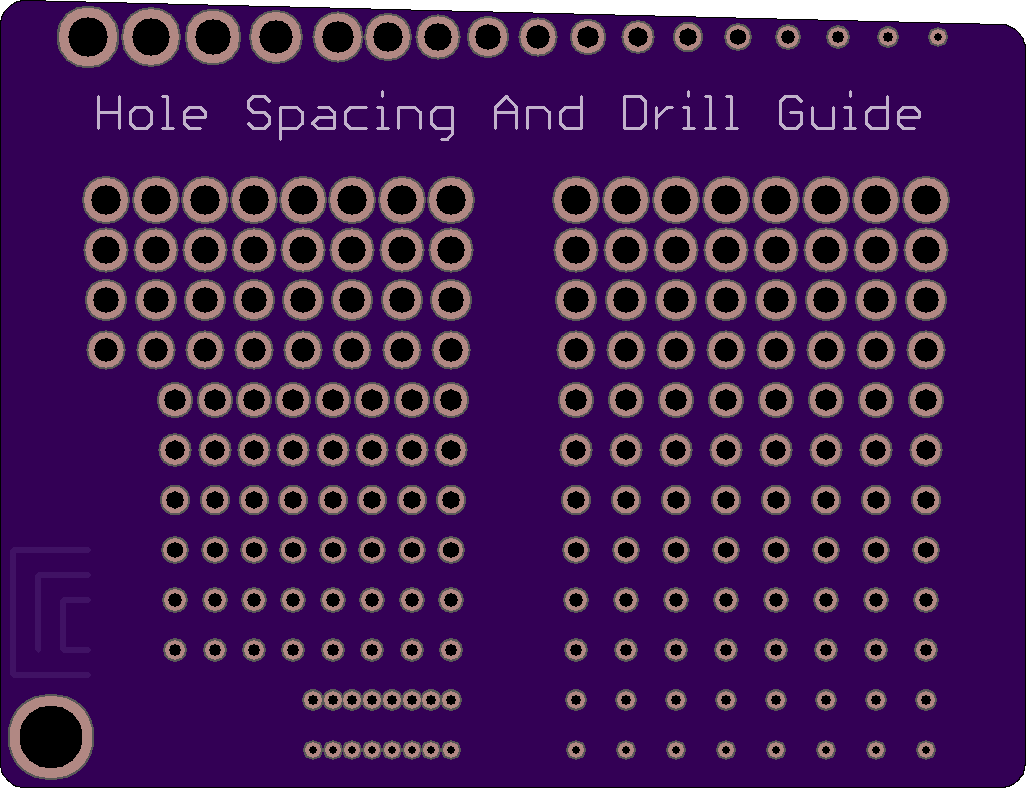

Hope Spacing And Drill Guide

by CJackel.
Top
Bottom

2 layer board of 2.05x1.57 inches (52.10x39.98 mm).
Shared on February 19th, 2014 10:16.

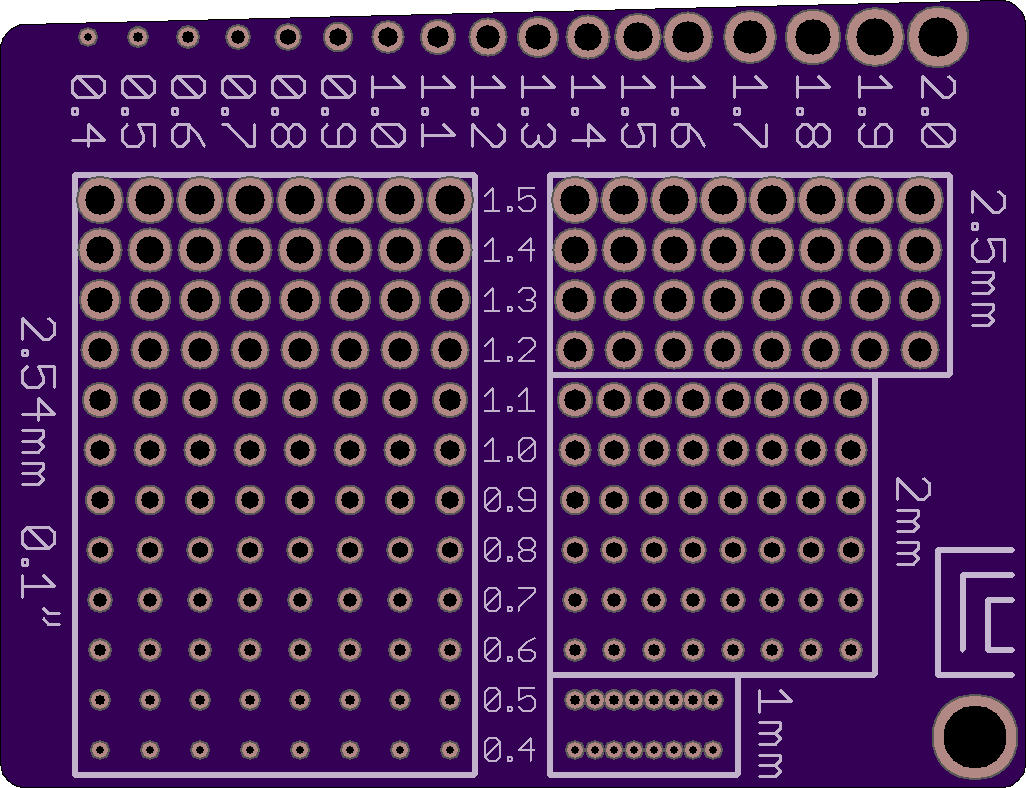

Hope Spacing And Drill Guide 0.4mm To 2.0mm. 1mm, 2mm, 2.5mm and 2.54mm 0.1" Spacing

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
