OSH Park
Profile for DEL
Shared projects
BLF driver 5.6m-SRK [rev02][untested]
by
DEL.
2
layer board of
1.82x1.81
inches
(46.20x46.05
mm).
Shared on
June 7th, 2017 11:04.

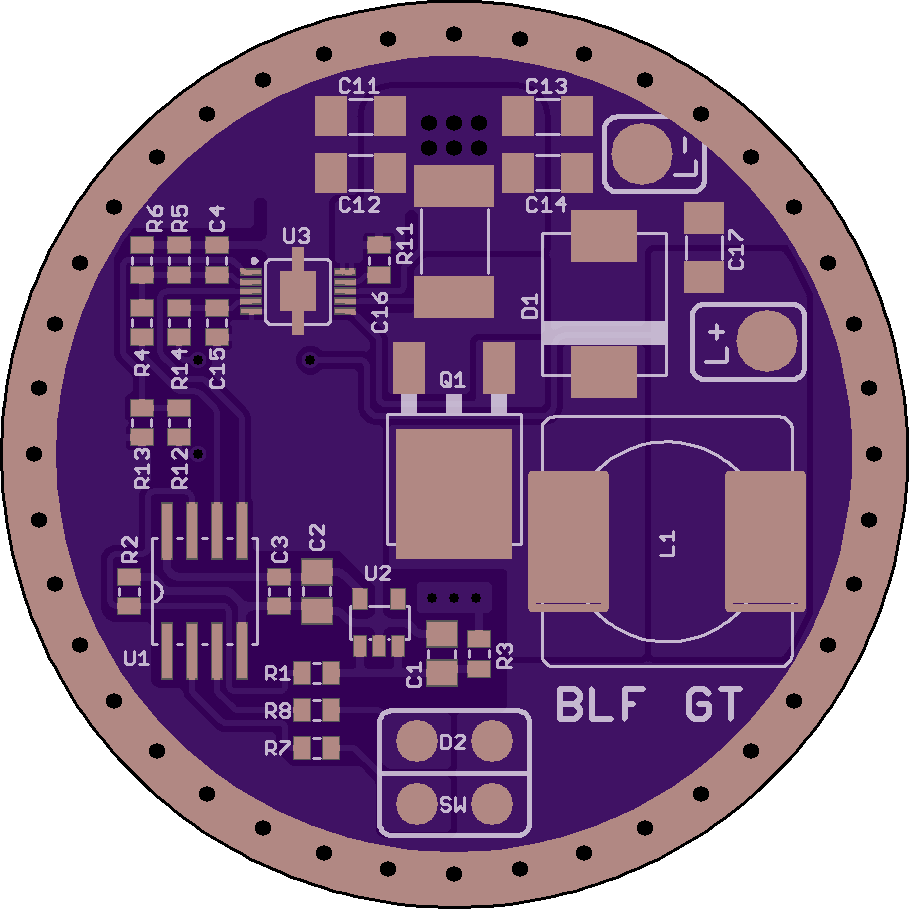

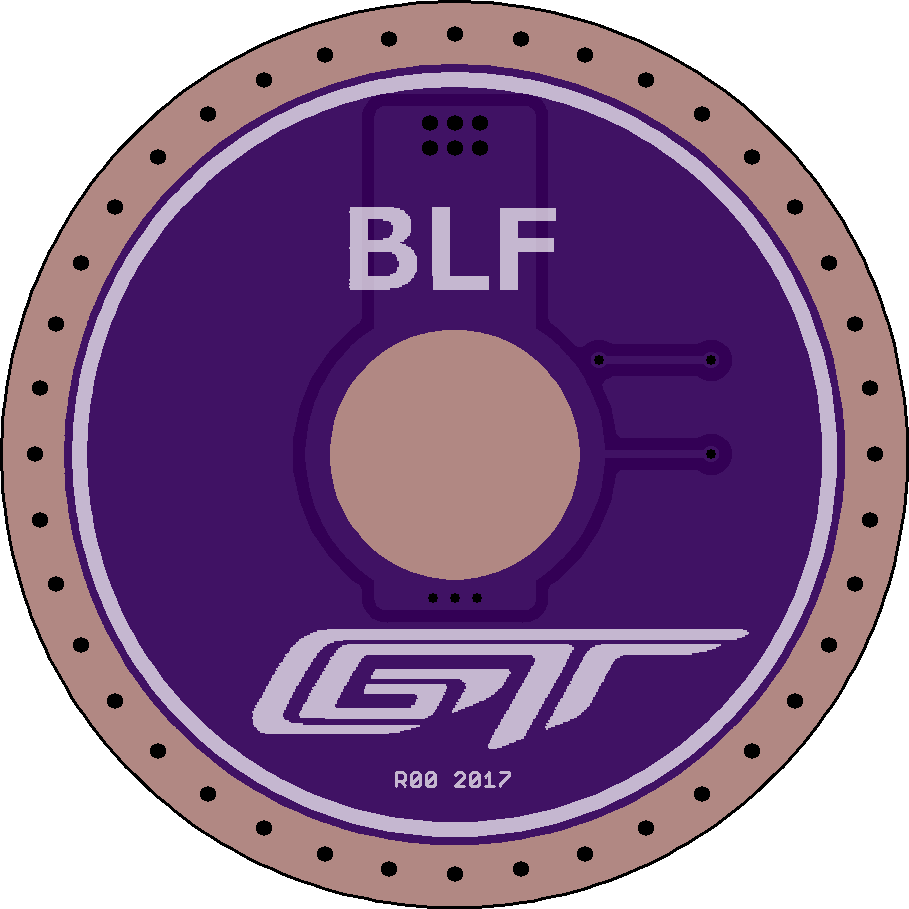

BLF GTbuck [Prototype rev00]
by
DEL.
2
layer board of
1.82x1.82
inches
(46.20x46.20
mm).
Shared on
May 12th, 2017 14:36.

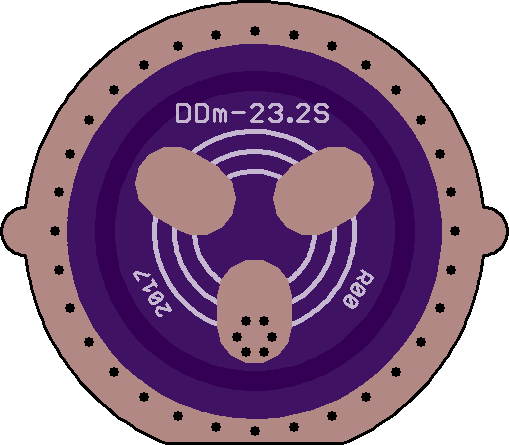

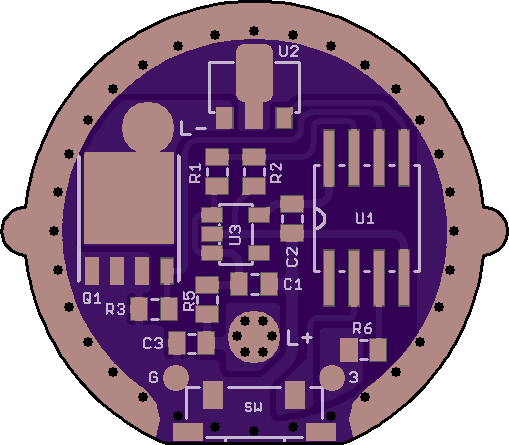

BLF driver DDm-23.2S [rev00a][untested]
by
DEL.
2
layer board of
1.02x0.89
inches
(25.86x22.63
mm).
Shared on
April 28th, 2017 01:17.
LDO version of the Yezl Y3 driver, for 2S lights.
- Suggested LDO: MIC5235-5.0, SOT23-5
- C1, C2, C3: 4.7 uF (but 2.2 - 10 uF is OK), X5R/X7R
- R5: 10 ohm

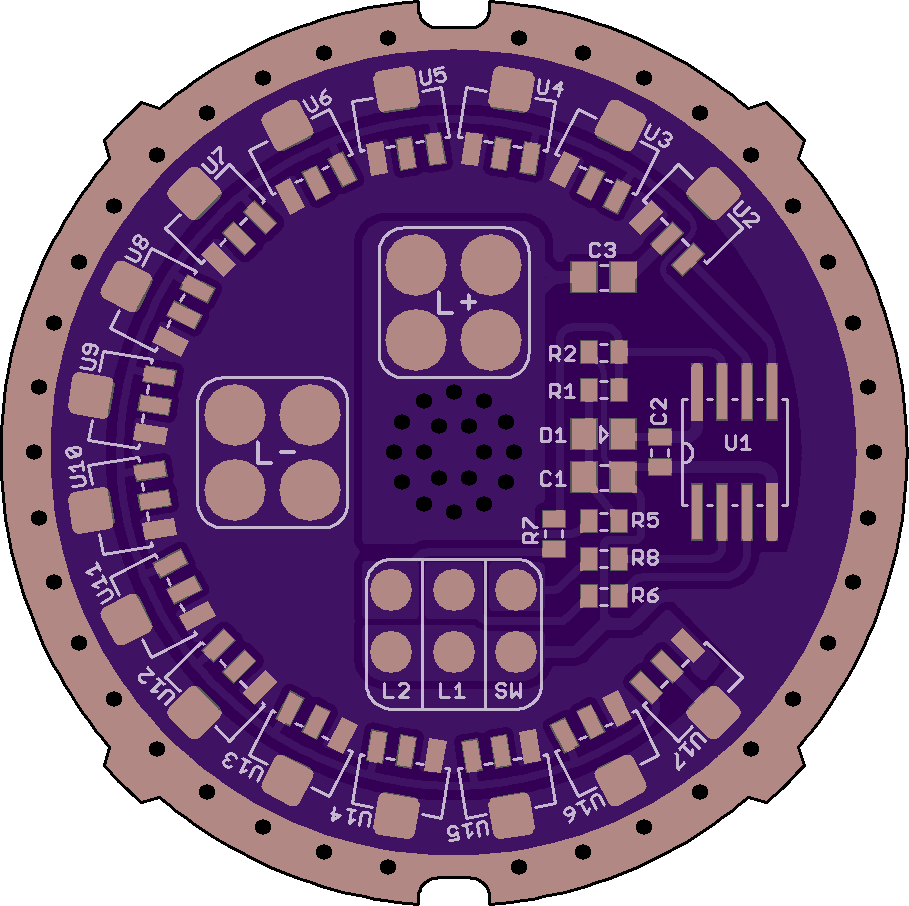

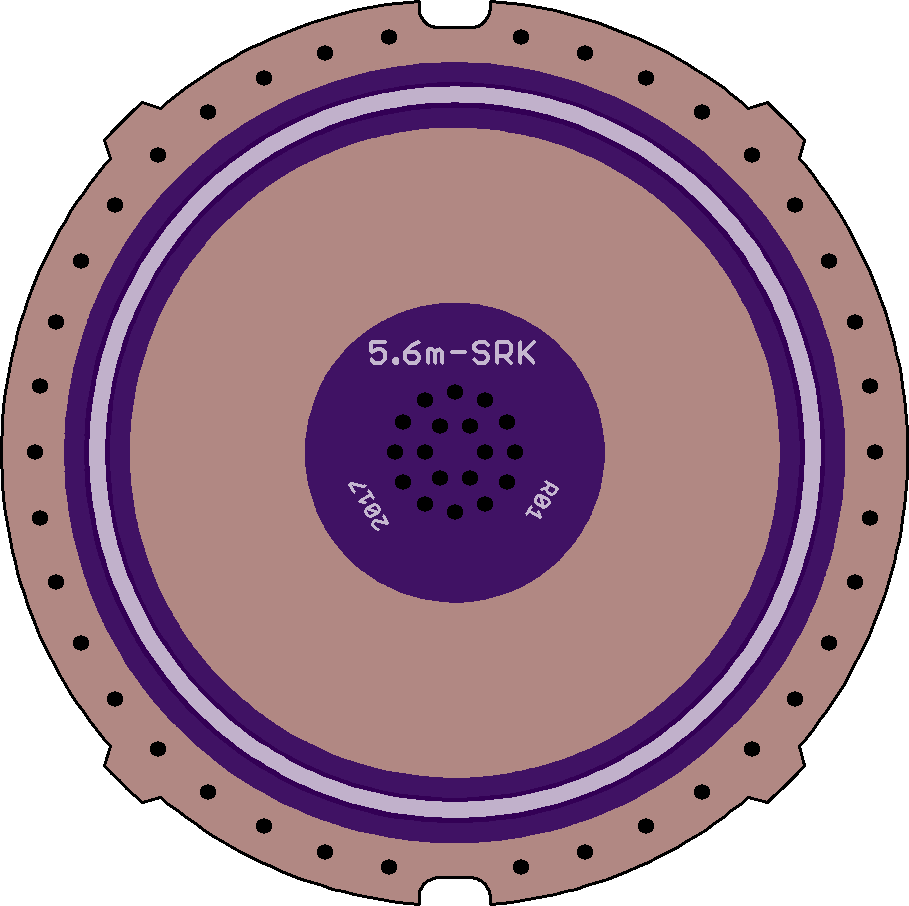

BLF driver 5.6m-SRK [rev01c][tried and tested]
by
DEL.
2
layer board of
1.82x1.81
inches
(46.20x46.05
mm).
Shared on
April 21st, 2017 23:30.
Rev00 + pick holes and sand-to-fit tabs + wider L- flood.

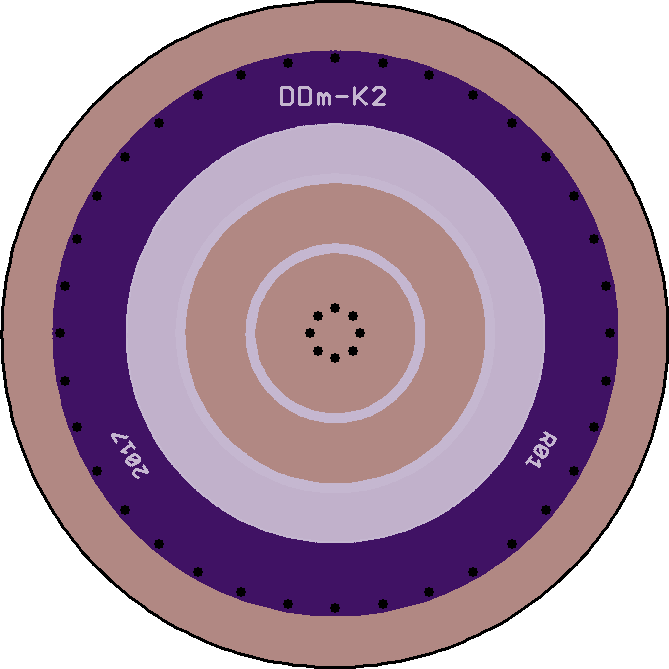

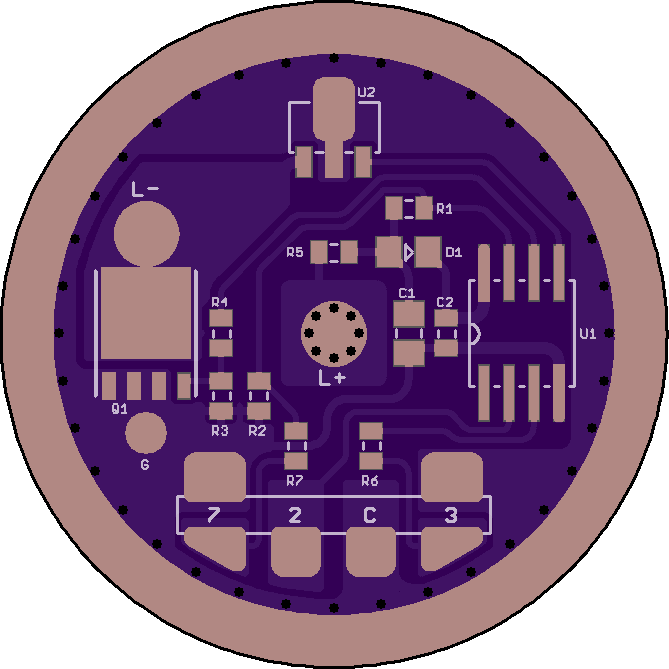

BLF driver DDm-K2 [rev01a][untested]
by
DEL.
2
layer board of
1.34x1.34
inches
(33.99x33.99
mm).
Shared on
April 2nd, 2017 17:32.
DDm driver for Solarstorm/Fandyfire K2 lights.
Revision changes
- Full size SOT-89 pads for the 7135
- Unmasked L+ vias, to be solder-filled
Needs the DDm-K2-SW daughter board for the tactile switch and indicator LEDs:
https://oshpark.com/shared_projects/E7YKjPjG
‘Standard’ DDm parts list, except for:
- R1 and R2 are populated if MCU pin 7 is used for cell voltage monitoring. This could, however, be done using the software-only method of Vcc vs. the internal 1.1 V reference.
- R7 is populated when re-purposing pin 7 to drive a second indicator LED, as per the stock driver.
- There is an R1 on the back of the switch board. A jumper here rewires the two indicator LEDs in parallel, both to be driven from MCU pin 3.
