BLF switch board DDm-K2-SW [rev00][untested]

by DEL.

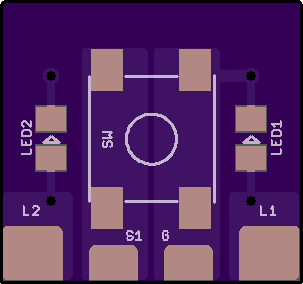

Top

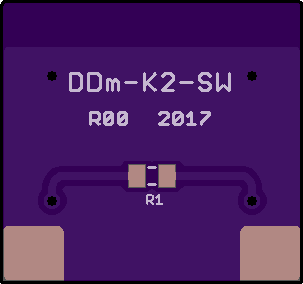

Bottom

2 layer board of 0.61x0.57 inches (15.39x14.45 mm).
Shared on March 11th, 2017 20:11.

Daughter board for the DDm-K2 driver board.

https://oshpark.com/shared_projects/oyuZ86Yz

The switch is a NO SMD 6.2x6.2x3.1 mm tactile type. The LEDs have 0805 footprints. Normally R1 is not populated. A jumper or small-value resistor here wires the two LEDs to be driven in parallel.
