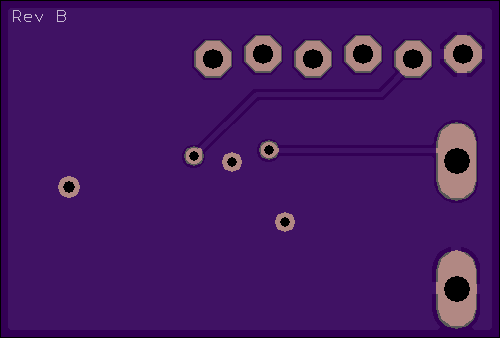

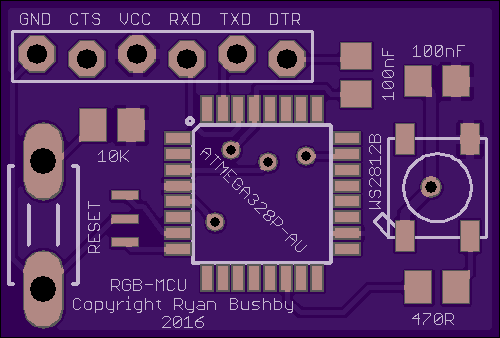

ATMEGA328+WS2812 Rev B

by HighInBC.
Top
Bottom

2 layer board of 1.00x0.68 inches (25.40x17.15 mm).
Shared on September 5th, 2016 13:41.

Testing FTDI auto flashing like nano and WS2812B

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

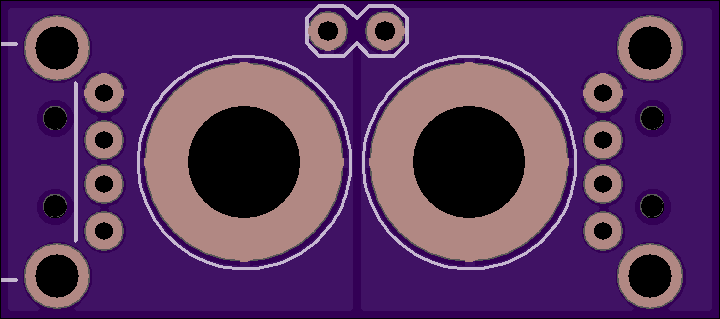

USB inline splice adapter

by HighInBC.

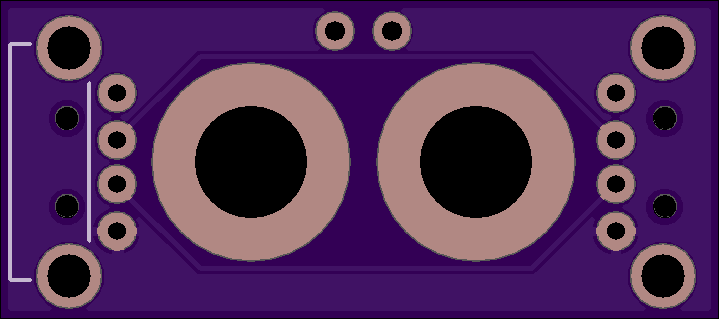

Top
Bottom

2 layer board of 1.44x0.64 inches (36.50x16.21 mm).
Shared on August 26th, 2016 14:57.

For getting your multimeter inline with usb power. Tested and working well.

Parts list:

  • USB Male Type-A Connector - www.ebay.ca/itm/291618618218
  • USB Female Type A Socket Connector - www.ebay.ca/itm/271422633585
  • Female 4mm Banana sockets - http://www.ebay.ca/itm/171883786665
  • Male pin header

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

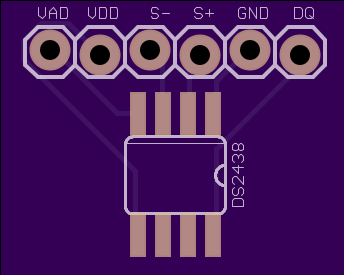

DS2438 breakout

by HighInBC.
Top
Bottom

2 layer board of 0.69x0.55 inches (17.48x13.97 mm).
Shared on May 20th, 2016 15:09.

Battery monitor IC

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

0805 LED and Resistor

by HighInBC.
Top
Bottom

2 layer board of 0.25x0.27 inches (6.35x6.86 mm).
Shared on February 11th, 2016 21:39.

0805 LED and Resistor

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

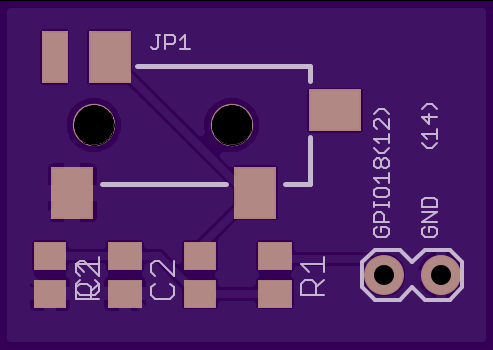

Pi Zero Mono Audio

by HighInBC.
Top
Bottom

2 layer board of 0.99x0.70 inches (25.07x17.78 mm).
Shared on February 5th, 2016 23:41.

UNTESTED

Order board. Download. Permalink. Embed order link.
