0805 adapter

2 layer board of 0.25x0.25 inches (6.35x6.35 mm).
Shared on January 11th, 2016 00:29.

0805 to breadboard adapter - Tested

Order board. Download. Permalink. Embed order link.

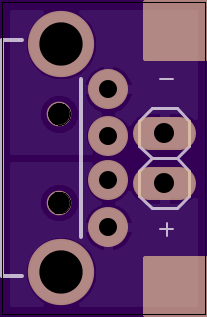

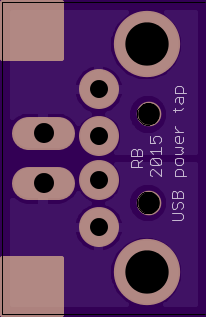

USB power tap

2 layer board of 0.41x0.63 inches (10.31x15.88 mm).
Shared on January 9th, 2016 01:49.

For grabbing 5V from a usb port

Order board. Download. Permalink. Embed order link.

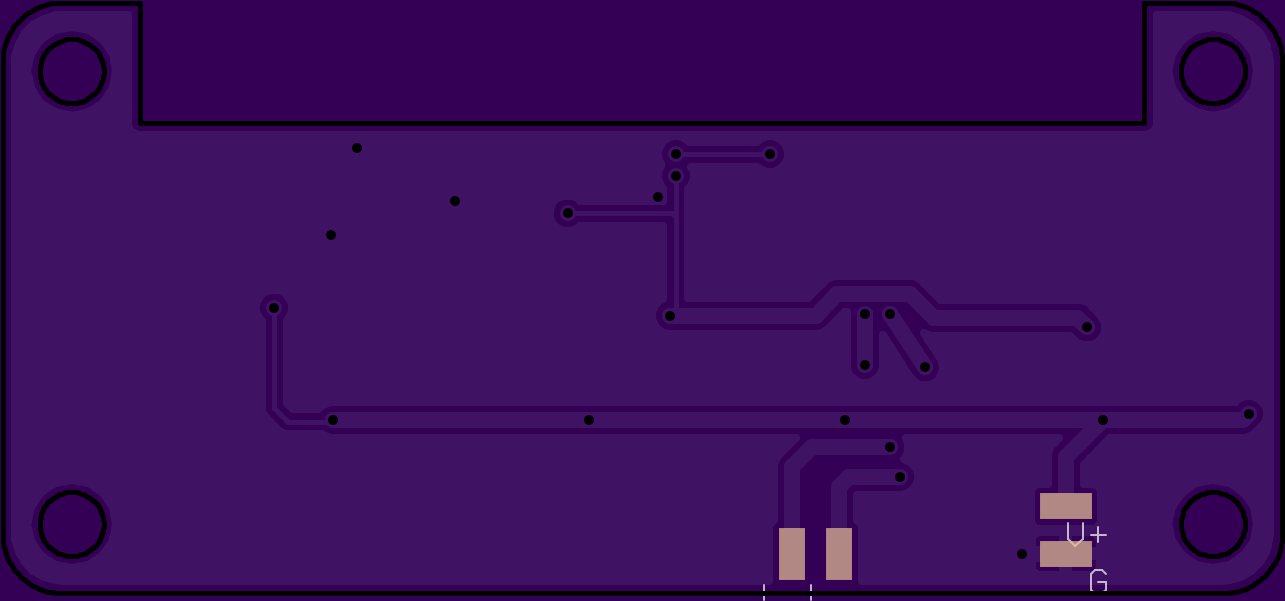

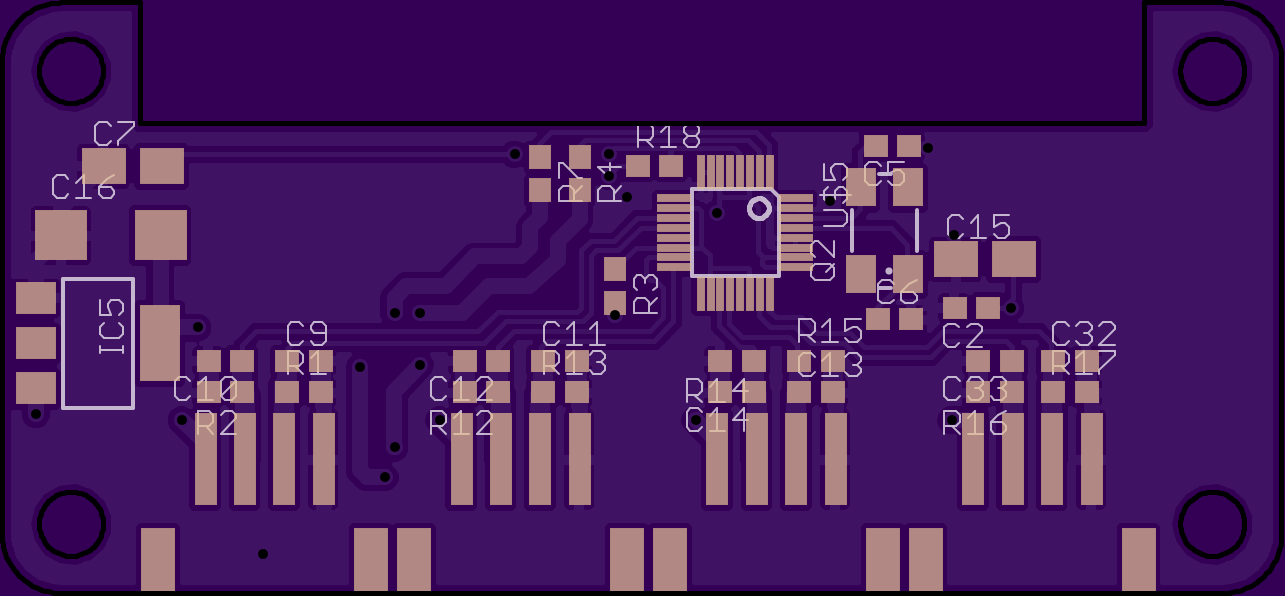

USB hub for Pi zero

2 layer board of 2.57x1.19 inches (65.28x30.28 mm).
Shared on December 22nd, 2015 21:48.

Taken from: https://github.com/openhardwarecoza/Rpi-Zero-USB-Hub

See https://openhardwarecoza.wordpress.com/2015/12/07/raspberry-pi-zero-4-port-usb-hub-open-source-pcb-design/ for BOM

Order board. Download. Permalink. Embed order link.

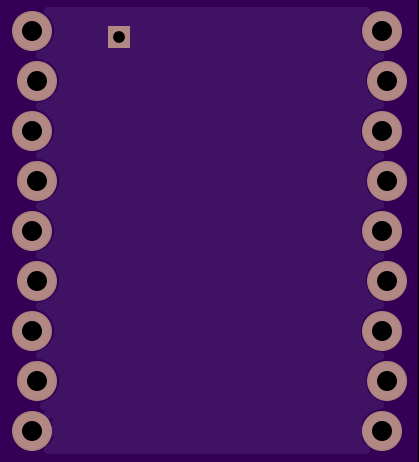

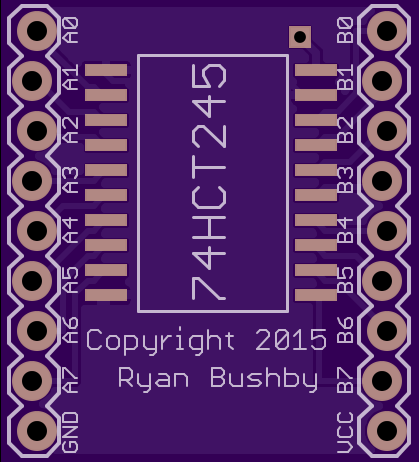

74HCT245 SO-20 breakout

2 layer board of 0.84x0.93 inches (21.29x23.49 mm).
Shared on October 11th, 2015 22:35.

Note: Not all pins available, DIR tied to GND.

Order board. Download. Permalink. Embed order link.

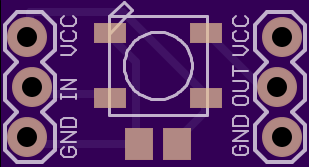

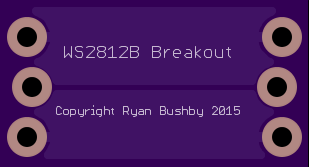

WS2812B breakout

2 layer board of 0.62x0.34 inches (15.72x8.51 mm).
Shared on October 11th, 2015 22:13.

With optional 0802 cap. Board will pass through VCC and GND even if LED is absent or damaged.

BOM:

• 1 x 0802 100nf capacitor
• 1 x 5050 WS2812B RGB LED
• 2 x 1x3 male pin header

Order board. Download. Permalink. Embed order link.
