Shared projects

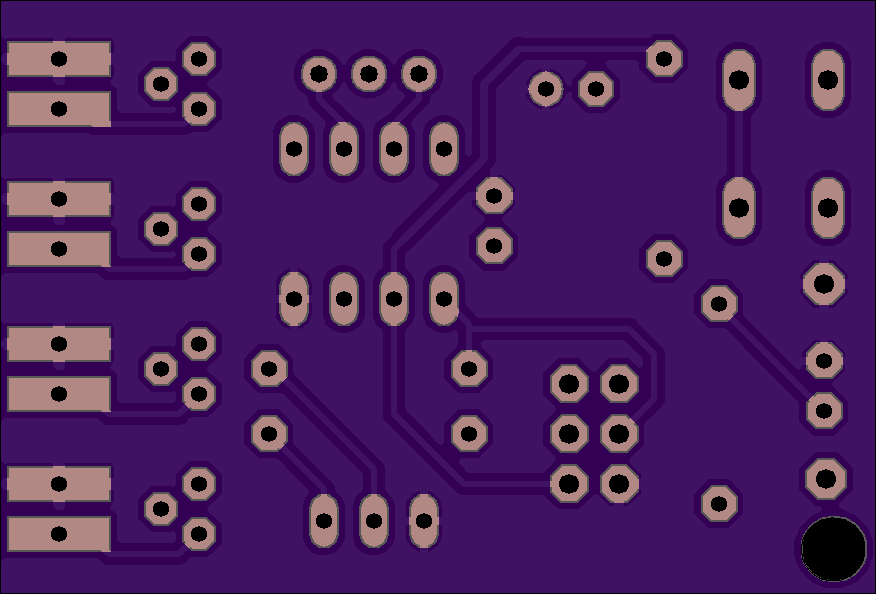

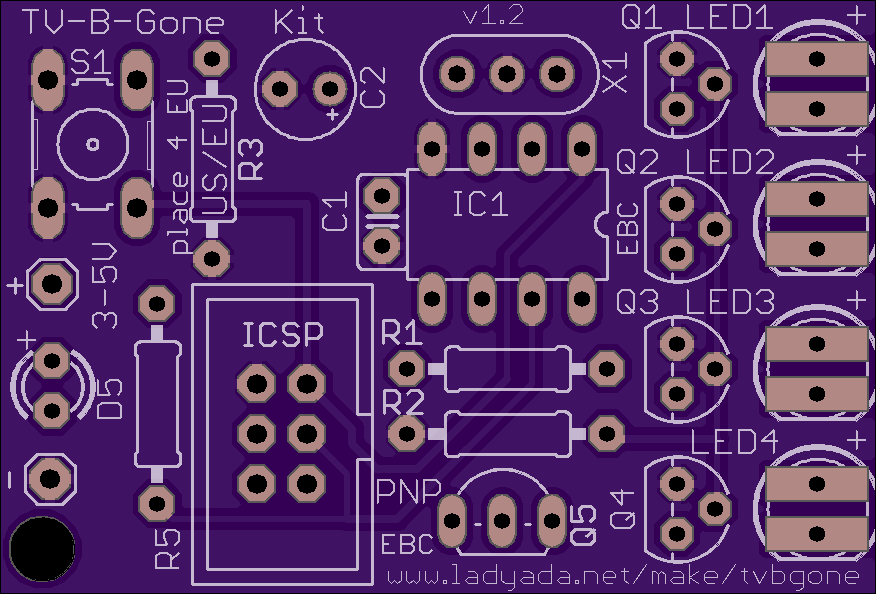

TV Be Gone

by HighInBC.
Top
Bottom

2 layer board of 1.75x1.19 inches (44.45x30.15 mm).
Shared on August 28th, 2015 17:49.

https://github.com/adafruit/TV-B-Gone-kit

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

8.5MM Square SMT Buzzer Breakout

by HighInBC.
Top
Bottom

2 layer board of 0.44x0.57 inches (11.10x14.60 mm).
Shared on August 28th, 2015 15:10.

Tested, works great

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

ATTINY13 breakout

by HighInBC.
Top
Bottom

2 layer board of 0.40x0.40 inches (10.26x10.26 mm).
Shared on June 27th, 2015 05:20.

breakout for attiny13 and other sop-8 packages

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

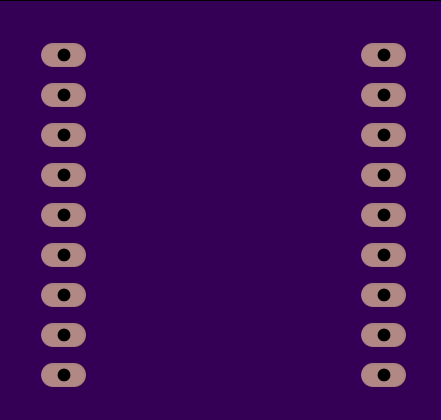

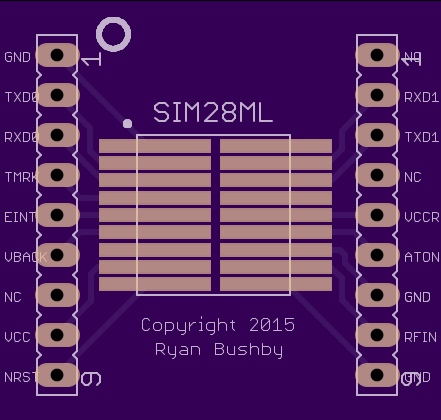

SIM28ML breakout

by HighInBC.
Top
Bottom

2 layer board of 1.10x1.05 inches (28.04x26.67 mm).
Shared on May 31st, 2015 04:22.

SIM28ML GPS chip breakout board with extra long pads for easier soldering.

Free to use for any purpose, untested.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project
