piezosounder.v01
by
PeskyProducts.
2
layer board of
0.46x0.49
inches
(11.58x12.34
mm).
Shared on
February 23rd, 2015 06:40.
Simple small board to test Murata’s 9 mm x 9 mm 4 kHz piezosounder.

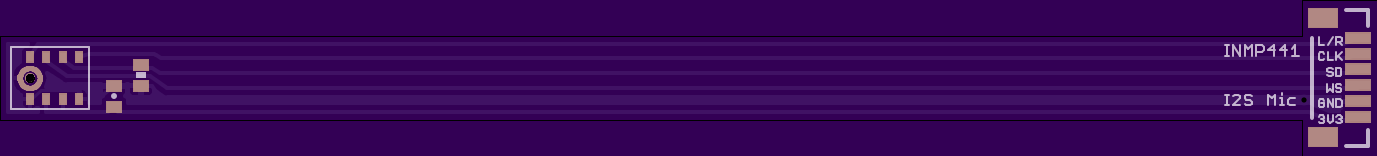

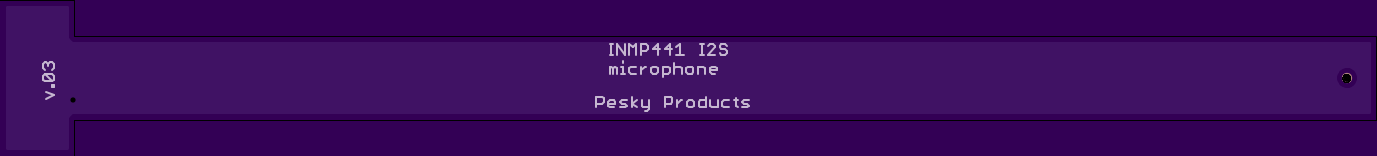

INMP441.I2SMicrophone.v03
by
PeskyProducts.
2
layer board of
3.44x0.39
inches
(87.48x9.93
mm).
Shared on
February 16th, 2015 05:21.
Test of INMP441 I2S microphone on flex cable.
INMP441.I2SMicrophone.v02
by
PeskyProducts.
2
layer board of
0.71x0.31
inches
(17.93x7.77
mm).
Shared on
February 15th, 2015 08:33.
Invensense’s bottom-ported MEMS digital microphones with an embedded ASIC which directly outputs 24-bit I2S serial data without the need of a CODEC. Board is intended as an add-on to the Teensy 3.x.
INMP441.I2SStereoMicrophones.v01z
by
PeskyProducts.
2
layer board of
0.71x0.31
inches
(17.93x7.77
mm).
Shared on
February 10th, 2015 07:49.
Invensense’s bottom-ported MEMS digital microphones with an embedded ASIC which directly outputs 24-bit I2S serial data without the need of a CODEC. Enlarged sound port holes. Board is intended for echo location (sonar) using the Teensy 3.x or Edison microcontrollers.
SPIFlashBoard.v01
by
PeskyProducts.
2
layer board of
0.71x0.31
inches
(17.91x7.75
mm).
Shared on
February 8th, 2015 07:44.
Appallingly small Teensy 3.x add-on board with 16 Mbytes of fast serial flash memory using an SPI communications interface. Pin out and 5 mm x 6 mm WSON package common to Spansion and Winbond flash chips so either can be used. Board mounts onto the non-USB end of Teensy 3.x or Teensy-LC.
