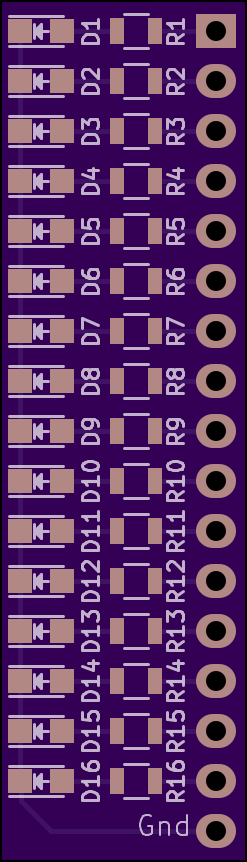

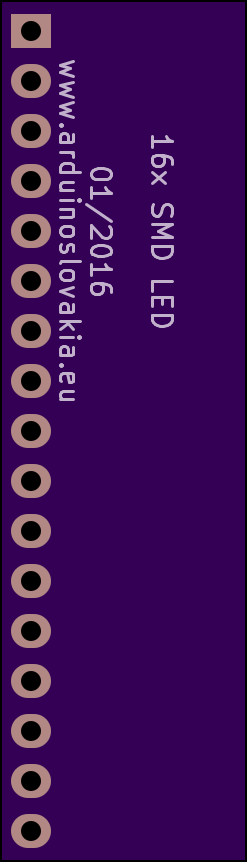

SMD LED16 Breakout Board
by
RoboUlbricht.
2
layer board of
0.49x1.72
inches
(12.55x43.79
mm).
Shared on
January 28th, 2016 20:03.

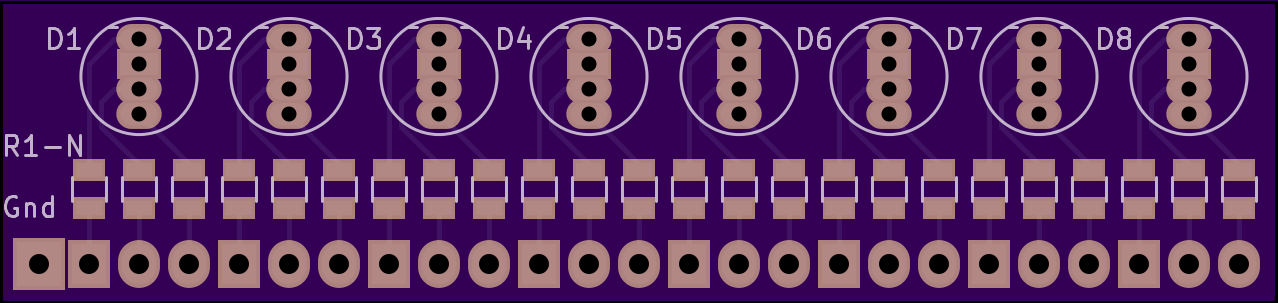

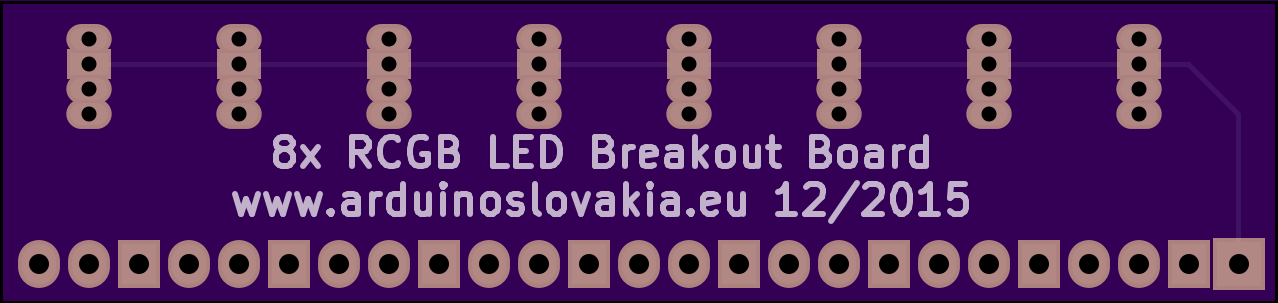

8x RGB LED Breakout Board
by
RoboUlbricht.
2
layer board of
2.56x0.61
inches
(64.92x15.39
mm).
Shared on
January 20th, 2016 20:18.
SWD Breakout Board
by
RoboUlbricht.
2
layer board of
0.41x0.51
inches
(10.31x12.85
mm).
Shared on
December 31st, 2015 08:31.

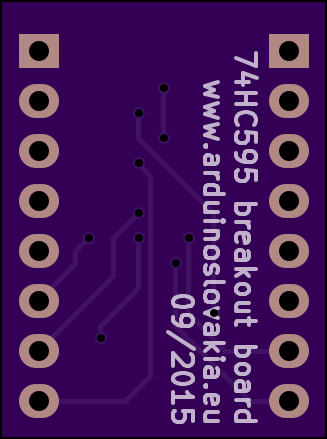

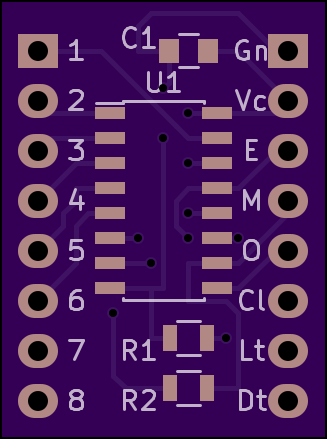

SMD 74HC595 breakout board (v. 2)
by
RoboUlbricht.
2
layer board of
0.65x0.88
inches
(16.61x22.33
mm).
Shared on
December 29th, 2015 11:39.
Simple shift register board for quick breadboard experiments.
- C1 - 0.1u 0805
- R1, R2 - 10k 0805
Images and video

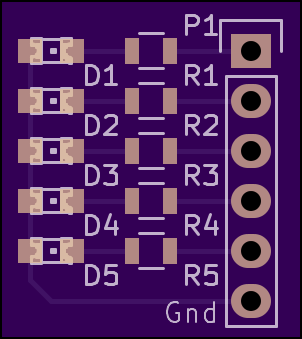

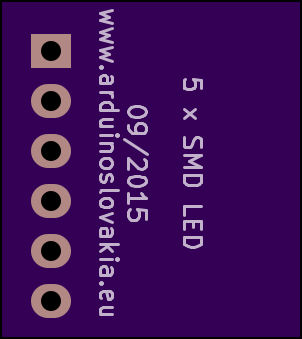

SMD LED5 breakout board
by
RoboUlbricht.
2
layer board of
0.60x0.68
inches
(15.34x17.25
mm).
Shared on
October 6th, 2015 13:33.
Simple 5 LED board for quick ATtiny85 breadboard experiments.
- 5 resistors 0805
- 5 LEDs 0805
- and 6 pins
For example blue LED + 1k resistor consumes 2.2 mA.
