SMD LED8 breakout board

by RoboUlbricht.

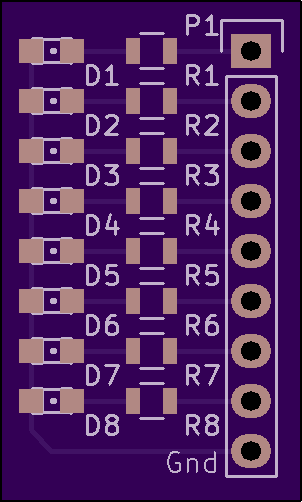

Top

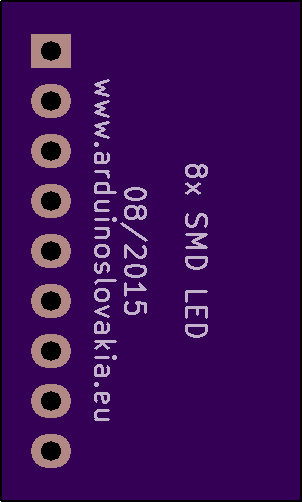

Bottom

2 layer board of 0.60x1.00 inches (15.34x25.50 mm).
Shared on September 5th, 2015 07:18.

Simple 8 LED board for quick Arduino breadboard experiments.

  • 8 resistors 0805
  • 8 LEDs 0805
  • and 9 pins

For example blue LED + 1k resistor consumes 2.2 mA.
