Profile for TimJC
Shared projects
EasyRaceLapTimer Through Hole Transponder
by
TimJC.
2
layer board of
0.63x0.86
inches
(15.95x21.84
mm).
Shared on
November 21st, 2015 16:59.

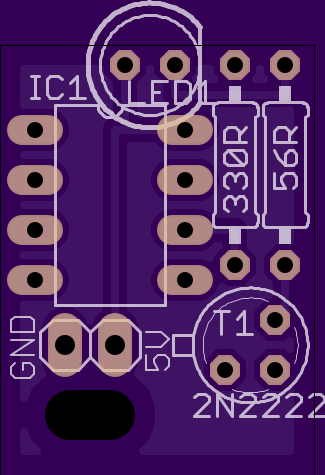

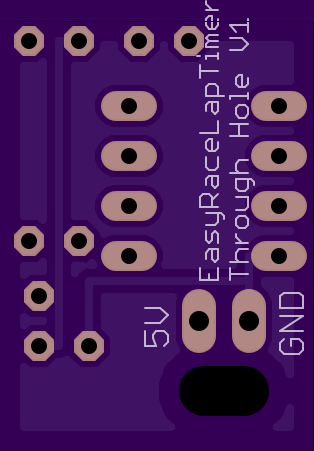

IR transponder for multirotor (drone) racing. The hole in the board is for cable strain relief. This board has not been tested.
For more informaiton visit:
36mm Power Distribution Board Rev1.1
by
TimJC.
2
layer board of
1.42x1.42
inches
(36.02x36.02
mm).
Shared on
August 19th, 2014 19:35.
36mm Multirotor PDB

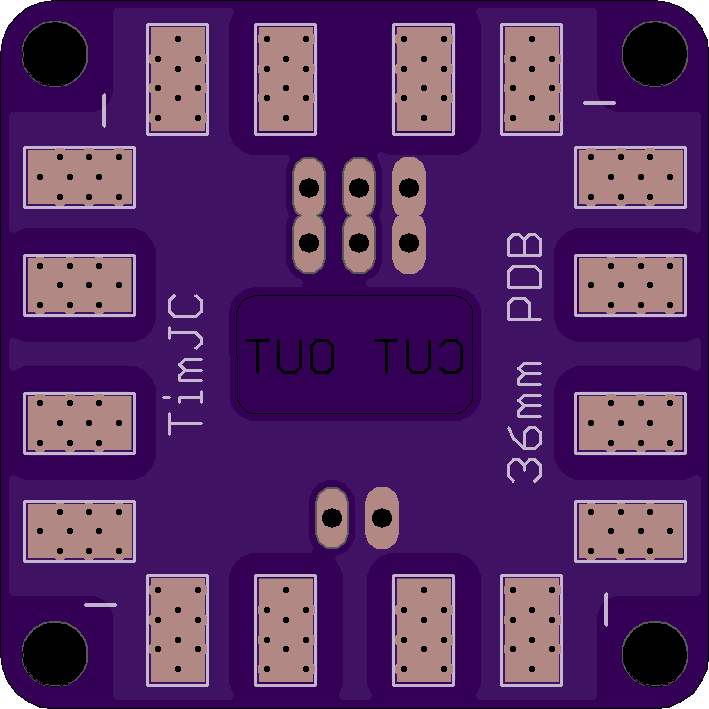

Ground terminals are located in the corners, and high current items (ESCs) should be soldered to the side with the minus symbol (-). The exposed ground pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).
Positive terminals are located on the sides of the board, and high current items (ESCs) should be soldered to the side with the plus symbol (+). The exposed positive pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).
The pin headers are added to allow the connection of a 5V UBEC to the pads above the cut out. The pads above that allow for ground, +V (~12v on 3S) and 5V out to power FPV cameras and/or video transmitter. The ground and +V pads at the bottom of the board are for supplying battery voltage to your flight controller for voltage monitoring (low battery alarm).
30.5mm M3 mounting holes for 36mm flight controllers like Naze32, Flip32, CC3d, etc.
Not compatible with 50mm FCs, like KK2.
For an option with less exposed solder pads, please see revision 2.1.
36mm Power Distribution Board Rev2.1
by
TimJC.
2
layer board of
1.42x1.42
inches
(36.02x36.02
mm).
Shared on
August 19th, 2014 12:32.

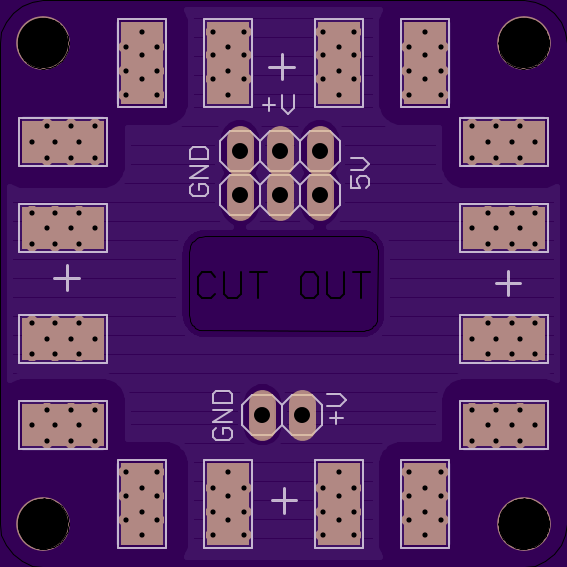

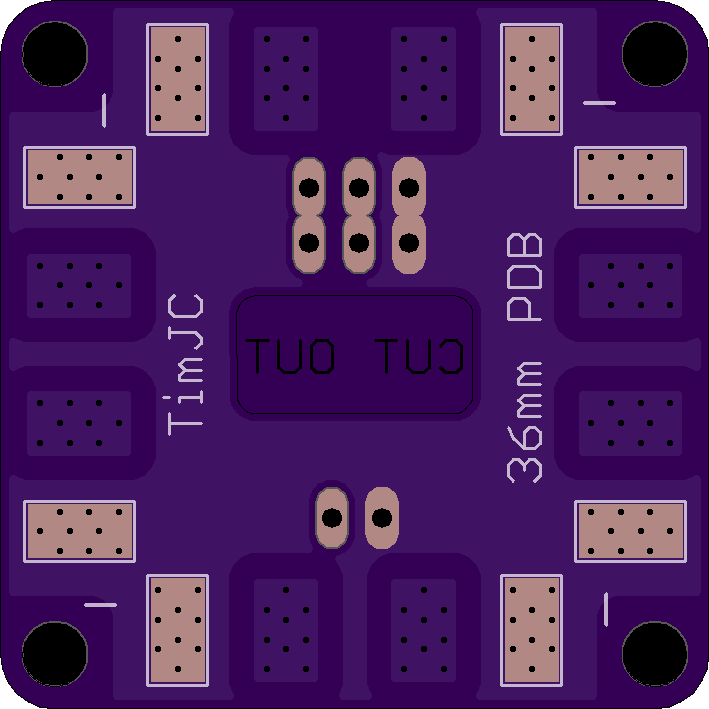

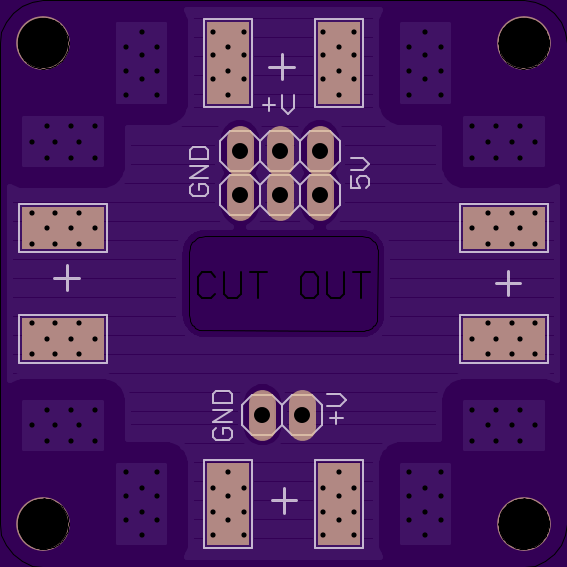

36mm Multirotor PDB
30.5mm M3 mounting holes for 36mm flight controllers like Naze32, Flip32, CC3d, etc.
Not compatible with 50mm FCs, like KK2.
The pin headers are added to allow the connection of a 5V UBEC to the pads above the cut out. The pads above that allow for ground, +V (~12v on 3S) and 5V out to power FPV cameras and/or video transmitter. The ground and +V pads at the bottom of the board are for supplying battery voltage to your flight controller for voltage monitoring (low battery alarm).
For an option with more exposed solder pads, please see revision 1.1.
S.Bus Inverter R2
by
TimJC.
2
layer board of
0.36x0.91
inches
(9.09x23.11
mm).
Shared on
August 17th, 2014 00:50.

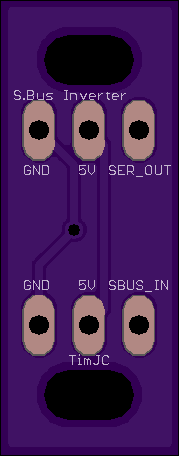

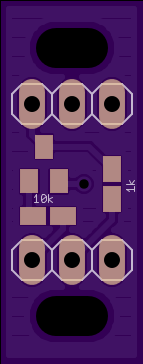

Futaba SBUS to serial inverter. This is used for connecting SBUS compatible RC RXs with Naze32/Flip32 multirotor flight controllers on input pin 4, and enabling “feature SERIALRX” in the Baseflight CLI. The holes in the board are for cable strain relief when used with standard 26AWG servo wire. The strain relief holes can be removed with flush/side cutters for mounting with pin headers instead. This is useful if you with to mount the inverter directly to the SBus output pins on the my Rx and/or input pins on the flight controller.
Parts:
DTFUHF 6ch RX - OpenLRSng
by
TimJC.
2
layer board of
1.53x0.76
inches
(38.74x19.20
mm).
Shared on
August 12th, 2014 12:15.

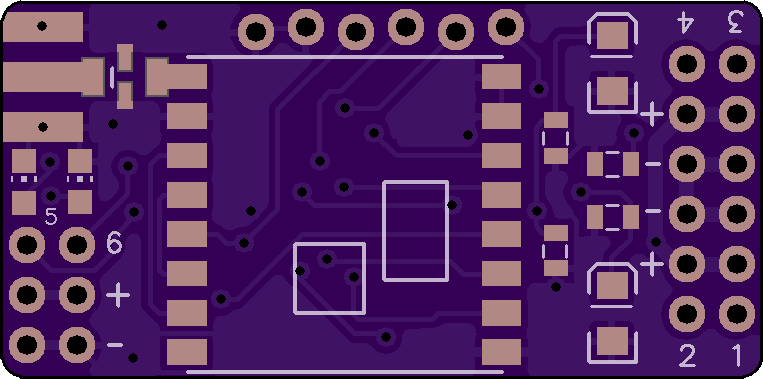

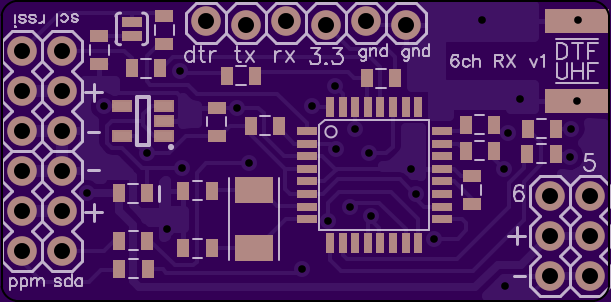

DTFUHF OpenLRSng 6ch Receiver
