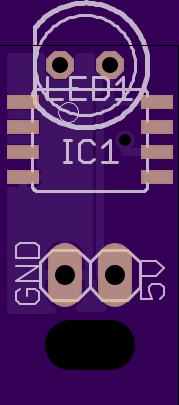

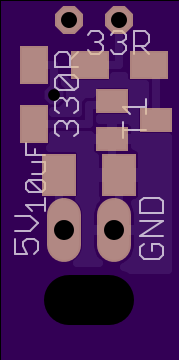

EasyRaceLapTimer Configurable Transponder SMD R1.3

by

2 layer board of 0.45x0.72 inches (11.38x18.29 mm).
Shared on February 21st, 2016 22:58.

Please check out R1.4fixes some difficult soldering issues - fixes some soldering issues with R1.3

This is a new updated version of the Alexander Bierbrauer’s IR transponder for multirotor (drone) racing with EasyRaceLapTimer system. This model has a button to allow changing the transponder code at the field. This minimizes transponder conflicts, especially when racing with other groups using the same ERLT system.

This board is intended to be powered by 5V from a spare servo connector on your receiver or flight controller. The hole in the board is for cable strain relief.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project. This board has not been tested.

Parts to populate each board:

Optional (but recommended):

10uF 1206 Capacitor

Helpful:

SOP-8 programming clip

For more informaiton visit:

EasyRaceLapTimer Base Station Raspberry Pi Hat

Old static transponders (must be reprogrammed to change transponder ID): 5V SMD R1.2 version 5V Through hole R1.1 version Battery balance port (7-8.4V) R1.2 version

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

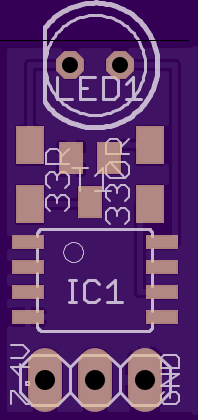

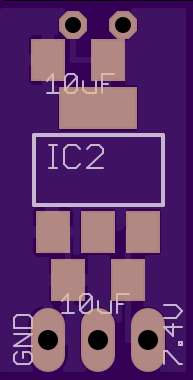

EasyRaceLapTimer Transponder SMD 1.2 for Balance Connector

by

TimJC.

2 layer board of 0.38x0.76 inches (9.58x19.30 mm).
Shared on December 10th, 2015 01:46.

IR transponder for multirotor (drone) racing with EasyRaceLapTimer system.

This board is designed to plug into the first two cells (7.4V) of the balance port on a LiPo battery, and is NOT limited to 2S batteries.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project.

This board has not been tested.

Parts to populate each board:

Helpful:

SOP-8 programming clip

For more informaiton visit:

5V Versions that can be powered by a spare servo port on receiver or flight controller:

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

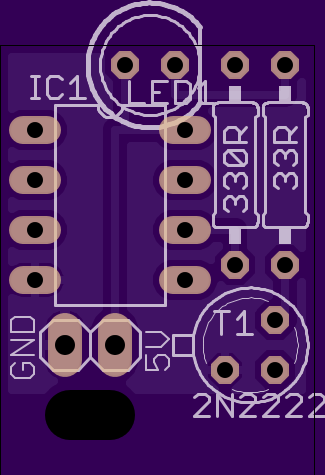

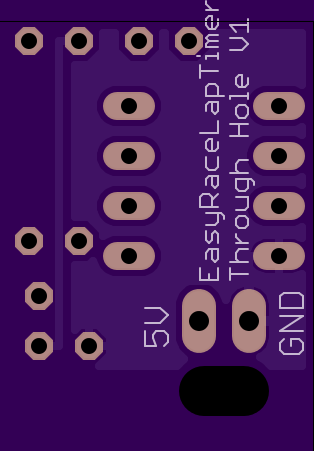

EasyRaceLapTimer Transponder Through Hole R1.1

by

TimJC.

2 layer board of 0.63x0.86 inches (15.95x21.84 mm).
Shared on December 10th, 2015 01:03.

IR transponder for multirotor (drone) racing with EasyRaceLapTimer system.

This board is intended to be powered by 5V from a spare servo connector on your receiver or flight controller. The hole in the board is for cable strain relief.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project.

This board has not been tested.

Parts to populate each board:

Optional (but recommended): - DIP-8 Socket

For more informaiton visit:

5V SMD R1.2 version

Battery balance port R1.2 version

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

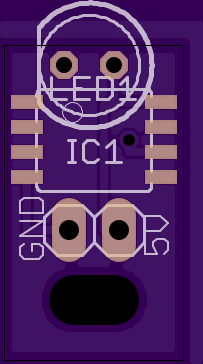

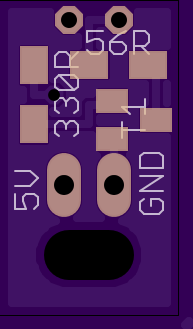

EasyRaceLapTimer Transponder SMD R1.2

by

TimJC.

2 layer board of 0.36x0.72 inches (9.09x18.29 mm).
Shared on December 10th, 2015 01:02.

Please check out R1.4

IR transponder for multirotor (drone) racing with EasyRaceLapTimer system.

This board is intended to be powered by 5V from a spare servo connector on your receiver or flight controller. The hole in the board is for cable strain relief.

Note: ATTiny85 needs to be programmed with applicable code from EasyRaceLapTimer project.

This board has not been tested.

Parts to populate each board:
