36mm PDB Rev2

by

TimJC.

2 layer board of 1.42x1.42 inches (36.02x36.02 mm).
Shared on August 11th, 2014 12:26.

36mm Multirotor PDB

30.5mm M3 mounting holes for 36mm flight controllers like Naze32, Flip32, CC3d, etc.

Not compatible with 50mm FCs, like KK2.

Mounting holes not suitable for metal hardware.

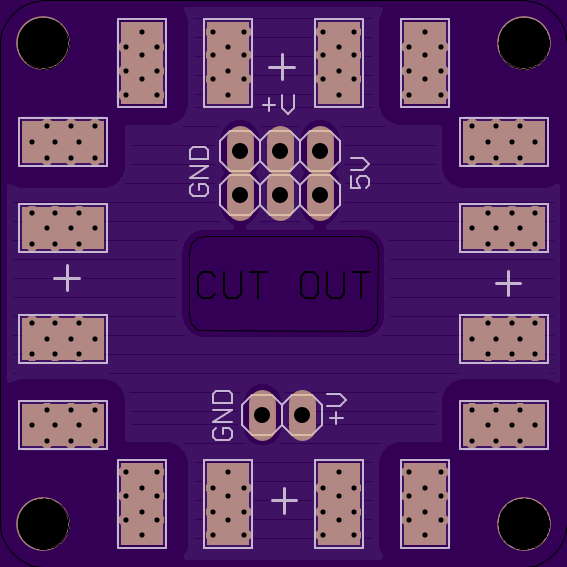

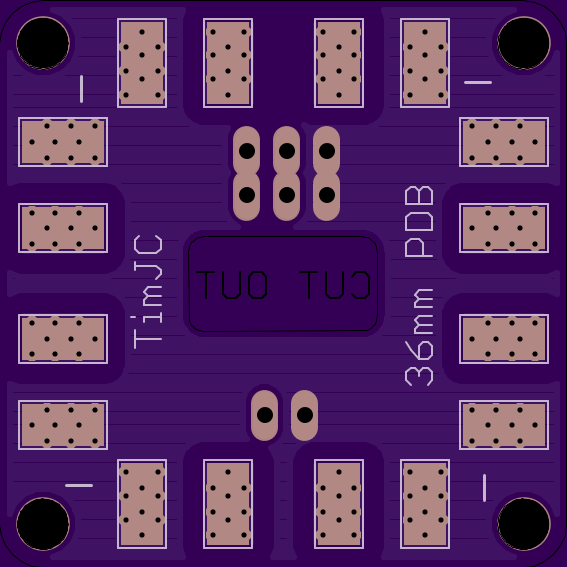

The pin headers are added to allow the connection of a 5V UBEC to the pads above the cut out. The pads above that allow for ground, +V (~12v on 3S) and 5V out to power FPV cameras and/or video transmitter. The ground and +V pads at the bottom of the board are for supplying battery voltage to your flight controller for voltage monitoring (low battery alarm).

Please see revision 2.1 for better isolation around mounting holes.

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

36mm Power Distribution Board

by

TimJC.

2 layer board of 1.42x1.42 inches (36.02x36.02 mm).
Shared on August 11th, 2014 02:21.

36mm Multirotor PDB

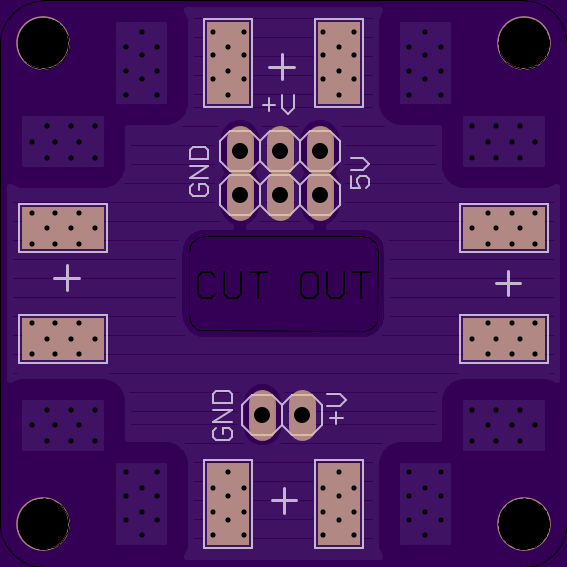

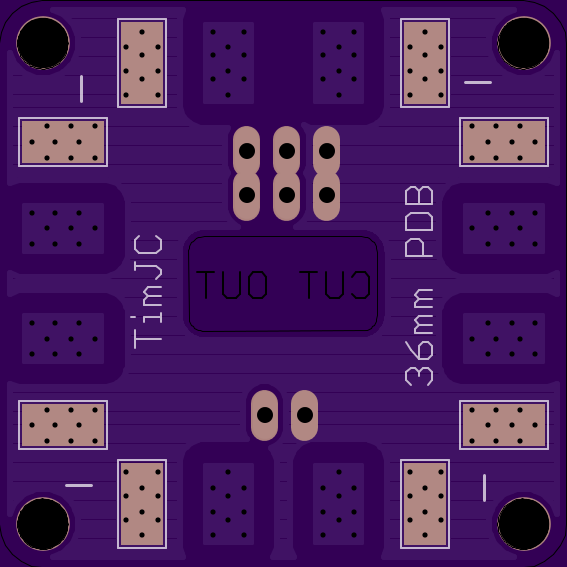

Ground terminals are located in the corners, and high current items (ESCs) should be soldered to the side with the minus symbol (-). The exposed ground pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).

Positive terminals are located on the sides of the board, and high current items (ESCs) should be soldered to the side with the plus symbol (+). The exposed positive pads on the opposite side of the board should only be used for low current draw applications (e.g. video equipment, 3.3/5/6V UBEC, LEDs).
