Shared projects
MakerBot single layer thermistor board
by
dnewman.
2
layer board of
1.00x1.13
inches
(25.43x28.60
mm).
Shared on
September 15th, 2014 23:09.
This is a thermistor board for use with MakerBot MightyBoard rev E, G, and H electronics. Use this board when connecting a third-party heater PCB (HBP) to your MightyBoard. The MakerBot HBP’s include the thermistor circuit. Most third-party boards do not. The four necessary components are listed on the silk screen. Use a three or four-wire CD-ROM audio cable to connect this board to the MightyBoard.

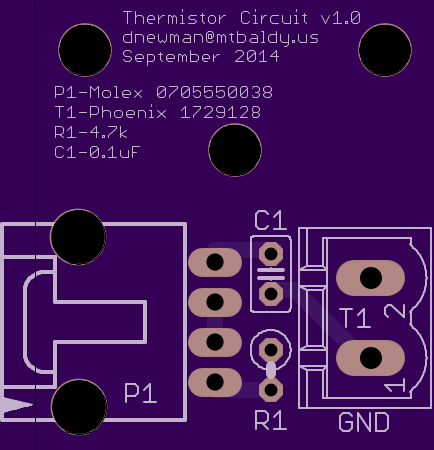

MakerBot Thermistor Circuit v1.0
by
dnewman.
2
layer board of
1.00x1.13
inches
(25.43x28.60
mm).
Shared on
September 15th, 2014 23:09.
This is a thermistor board for use with MakerBot MightyBoard rev E, G, and H electronics. Use this board when connecting a third-party heater PCB (HBP) to your MightyBoard. The MakerBot HBP’s include the thermistor circuit. Most third-party boards do not. The four necessary components are listed on the silk screen. Use a three or four-wire CD-ROM audio cable to connect this board to the MightyBoard.

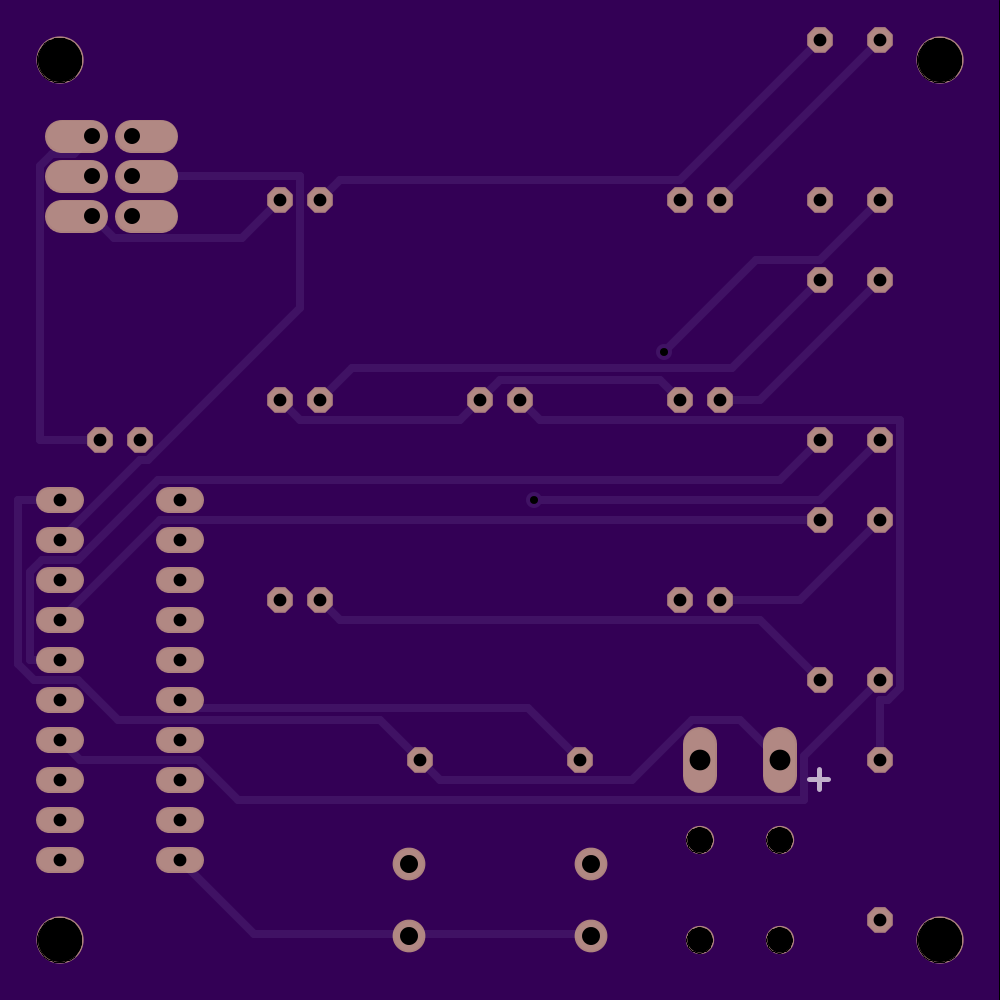

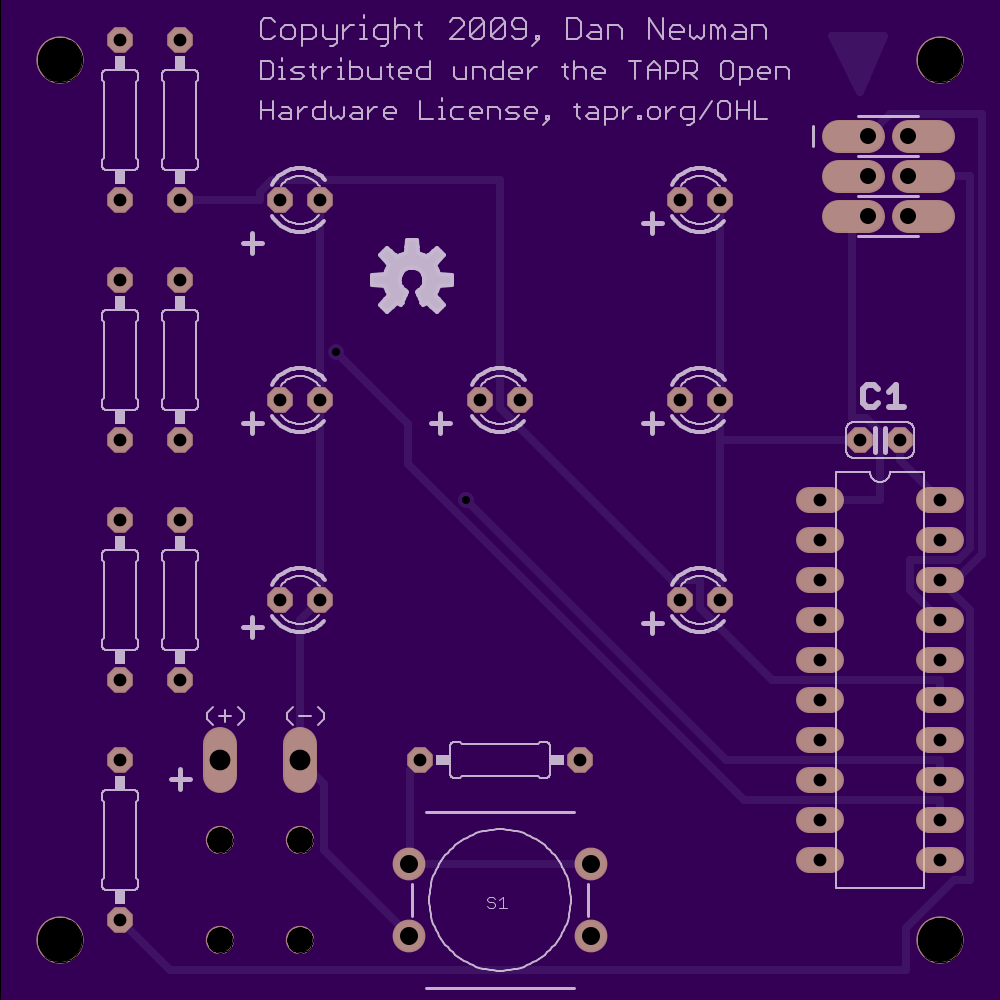

Digital Dice: Large Board
by
dnewman.
2
layer board of
2.50x2.50
inches
(63.50x63.50
mm).
Shared on
September 10th, 2014 18:19.
ATtiny2313 based digital dice (Thingiverse #24272)

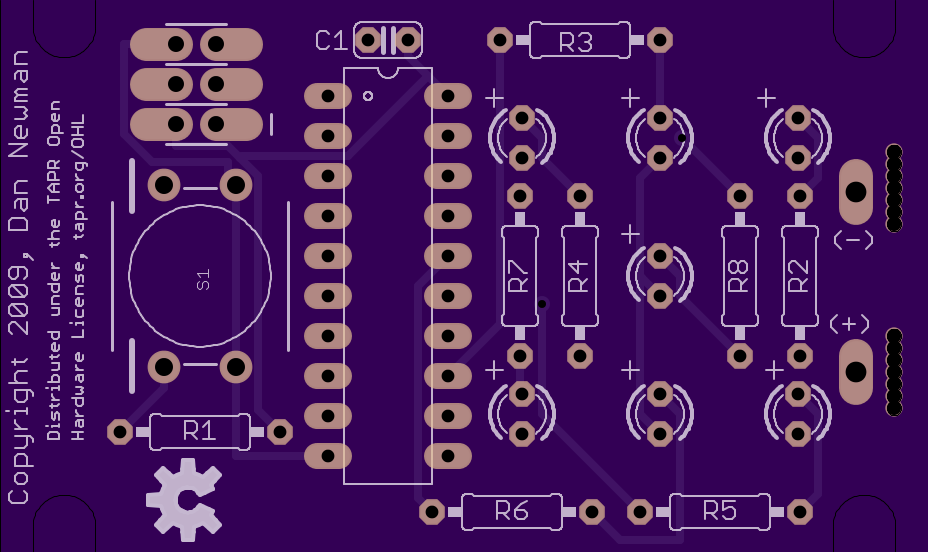

Digital Dice: Medium Board
by
dnewman.
2
layer board of
2.32x1.38
inches
(58.95x35.08
mm).
Shared on
September 10th, 2014 18:18.
ATtiny2313 based digital dice (Thingiverse #24272)

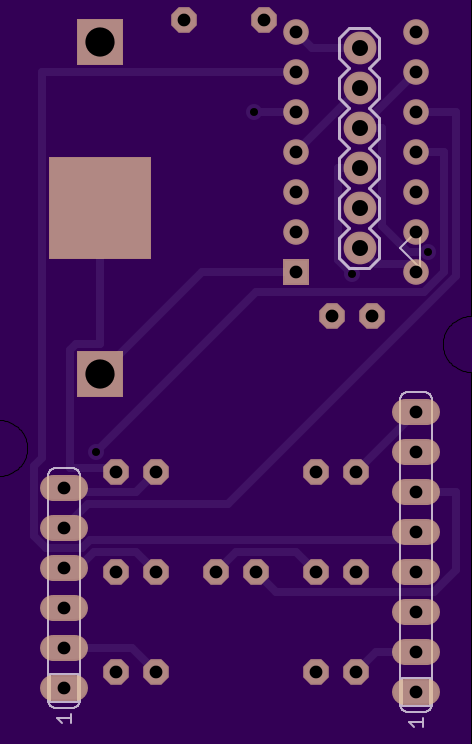

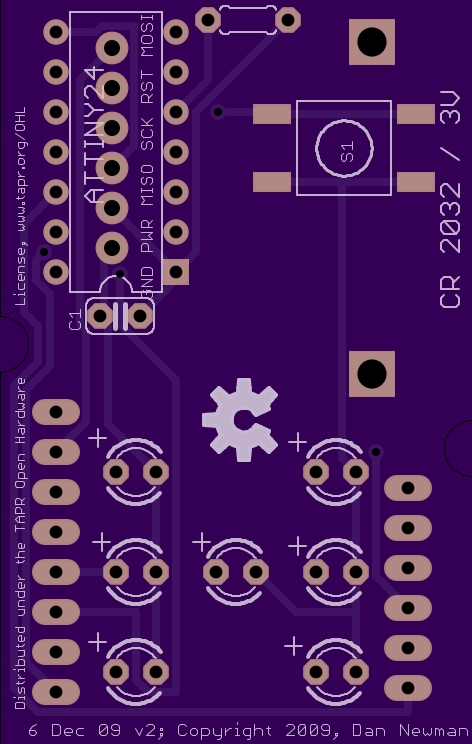

Digital Dice: Small Board
by
dnewman.
2
layer board of
1.18x1.86
inches
(29.97x47.24
mm).
Shared on
September 10th, 2014 18:18.
ATtiny24 based digital dice (Thingiverse #24272)
