MakerBot single layer thermistor board

by dnewman.

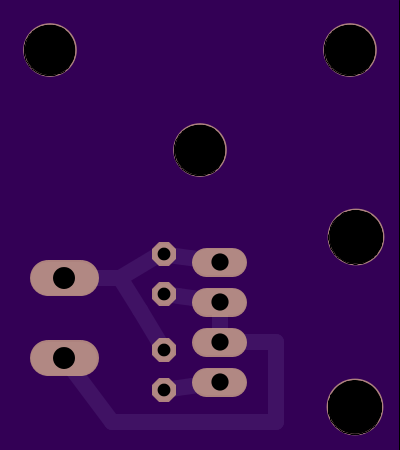

Top

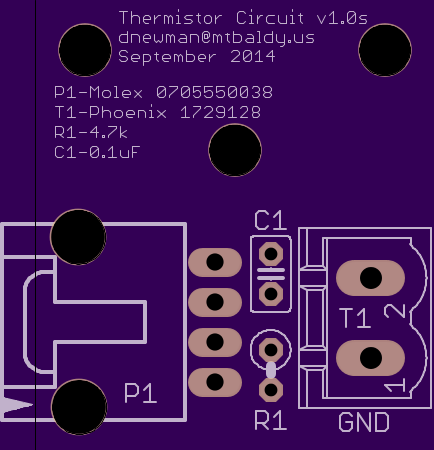

Bottom

2 layer board of 1.00x1.13 inches (25.43x28.60 mm).
Shared on September 15th, 2014 23:09.

This is a thermistor board for use with MakerBot MightyBoard rev E, G, and H electronics. Use this board when connecting a third-party heater PCB (HBP) to your MightyBoard. The MakerBot HBP’s include the thermistor circuit. Most third-party boards do not. The four necessary components are listed on the silk screen. Use a three or four-wire CD-ROM audio cable to connect this board to the MightyBoard.
