AVR ISP adapter

by nsayer.

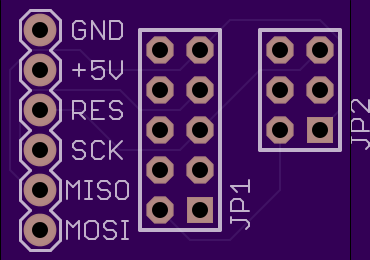

Top

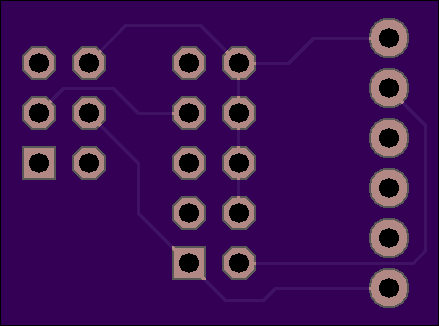

Bottom

2 layer board of 0.88x0.65 inches (22.23x16.54 mm).
Shared on November 23rd, 2013 17:27.

Adapt 6 and/or 10 pin AVR ISP to breadboard. This is essentially the same as SparkFun’s #8508, but it’s 93.3 cents instead of 95 cents a piece and free shipping! But, of course, you need to buy them 3 at a time…

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

J1772 Hydra, v1.6

by nsayer.
Top
Bottom

2 layer board of 3.86x2.41 inches (97.99x61.16 mm).
Shared on November 7th, 2013 03:52.

Charge two electric vehicles with a single EV charging station.

Visit The OpenEVSE wiki for full details

Order board. Download. Permalink. Embed order link.

Copy this HTML into your page to embed a link to order this shared project

EV Sim Mark II

by nsayer.
Top
Bottom

2 layer board of 1.66x1.86 inches (42.14x47.19 mm).
Shared on November 7th, 2013 03:50.

Electric Vehicle simulator for testing EVSEs. Includes microcontroller for pilot signal frequency and duty cycle analysis.

See the Open-EVSE wiki for details.
