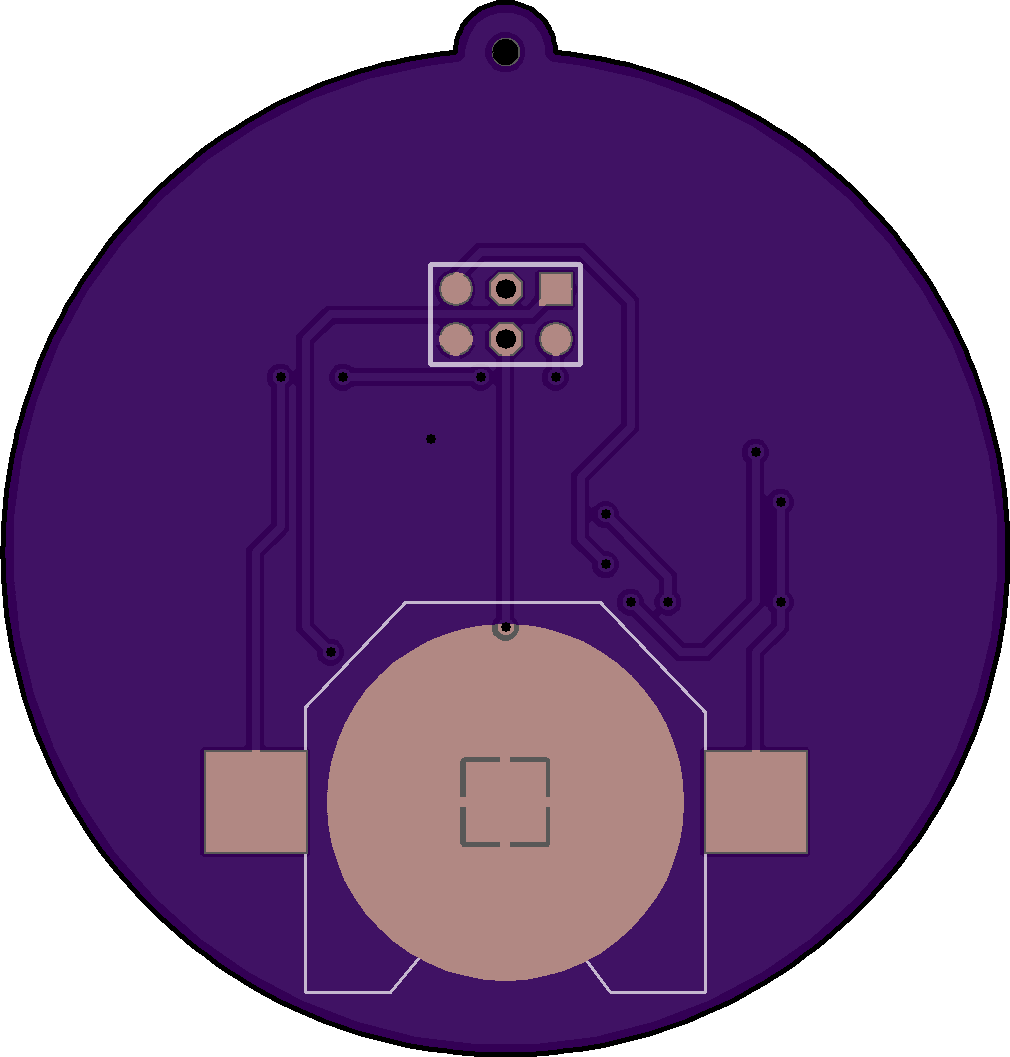

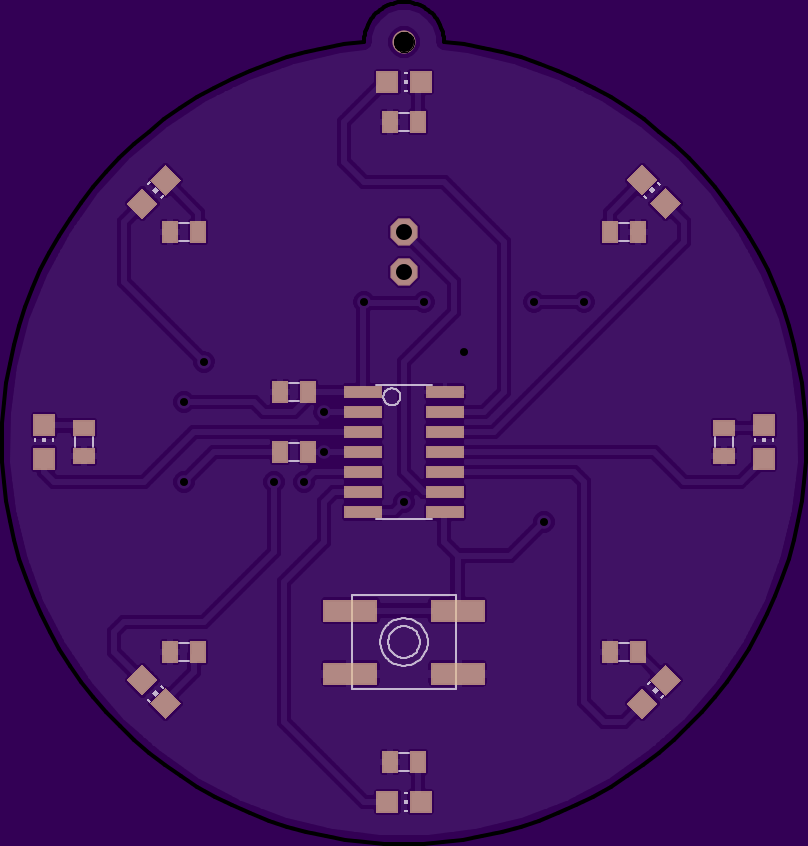

Round holiday ornament
by
nsayer.
2
layer board of
2.02x2.12
inches
(51.31x53.72
mm).
Shared on
December 10th, 2014 18:26.

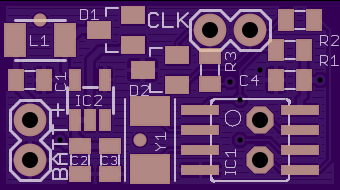

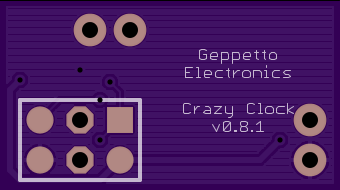

Crazy Clock v0.8.1
by
nsayer.
2
layer board of
0.85x0.48
inches
(21.62x12.09
mm).
Shared on
November 23rd, 2014 02:48.
Ticks randomly, but keeps “perfect” time.
A single AA battery will run it for 18 months-ish. Connect ‘clock’ terminals to a lavet stepper motor style clock movement.
NOTE: This version has incorrect crystal loading capacitance. It runs ~120 ppm fast. There is a more recent design that fixes this.
BOM:
- R1 - 10k
- R2 & R3 - 100R
- C1 - 10 µF
- C2 & C3 - 22 µF
- C4 - 0.1 µF
- D1 & D2 - BAT54A
- L1 - 47 µH
- IC1 - ATTiny45
- IC2 - NCP1402 3.3V
- Y1 - 32.768 kHz, 10 ppm

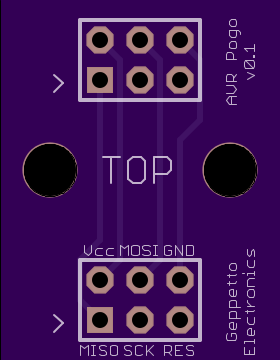

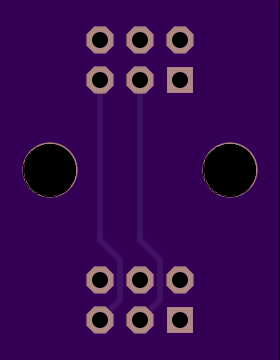

AVR ISP Pogo Adapter v0.1
by
nsayer.
2
layer board of
0.70x0.90
inches
(17.78x22.89
mm).
Shared on
October 7th, 2014 01:43.
Same as Sparkfun’s, but without the extra junk.

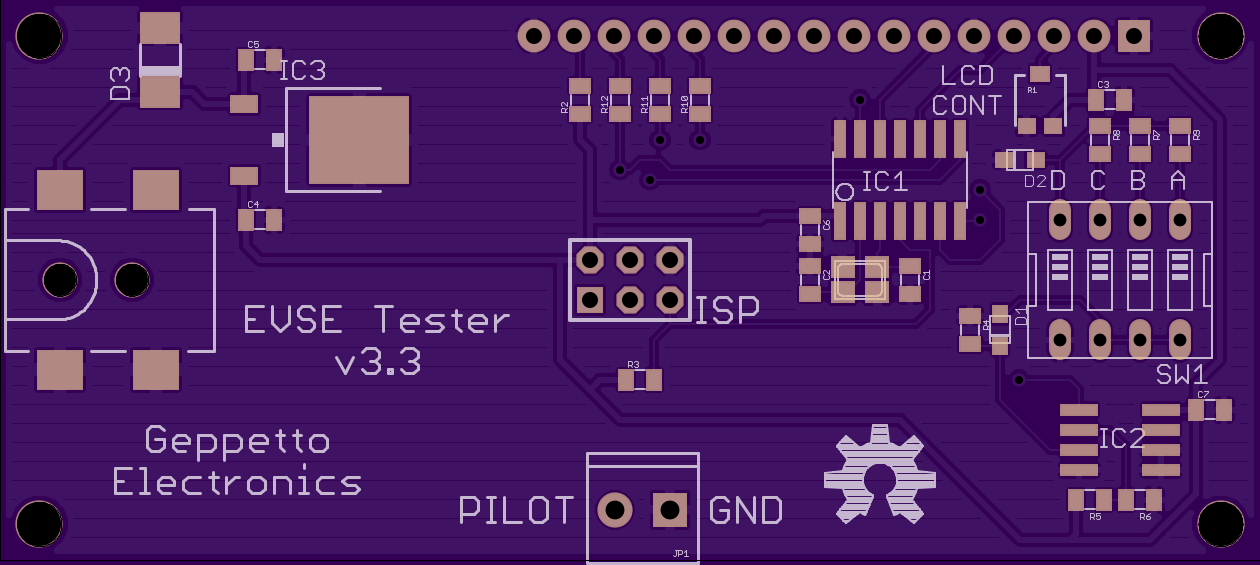

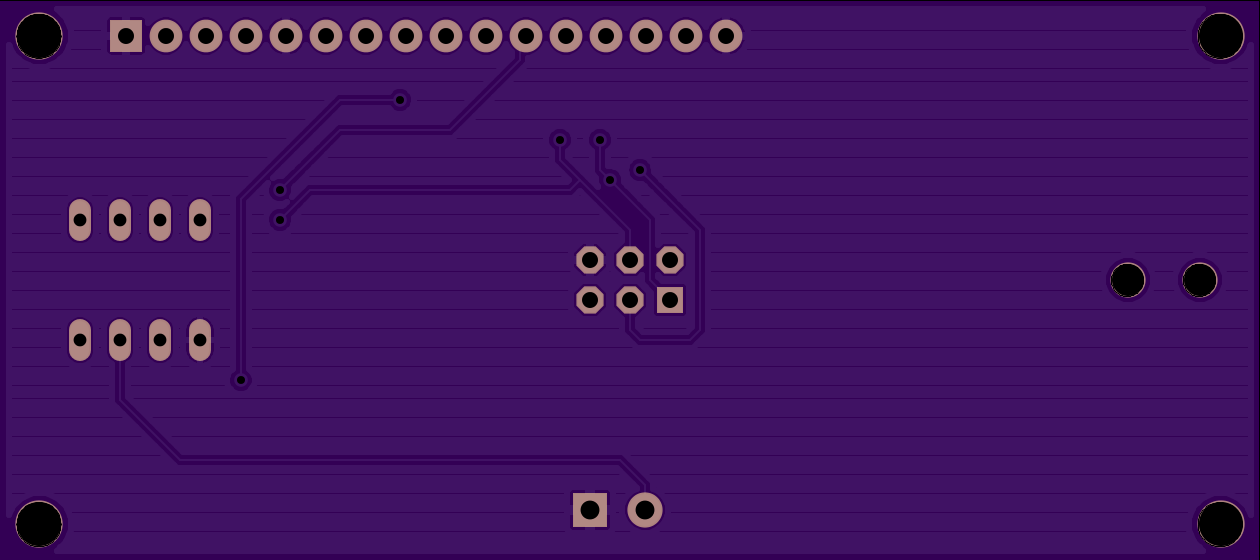

EVSE Tester v3.3
by
nsayer.
2
layer board of
3.15x1.40
inches
(80.04x35.59
mm).
Shared on
July 28th, 2014 20:45.
An EV Simulator, with a controller to analyze the incoming pilot

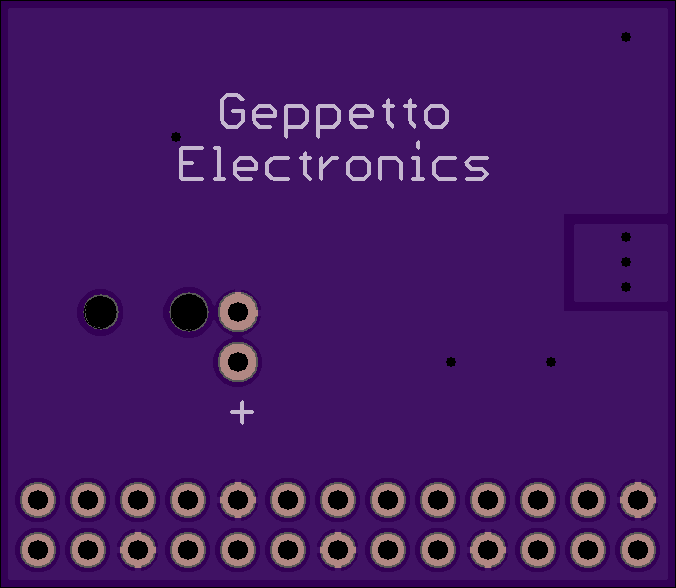

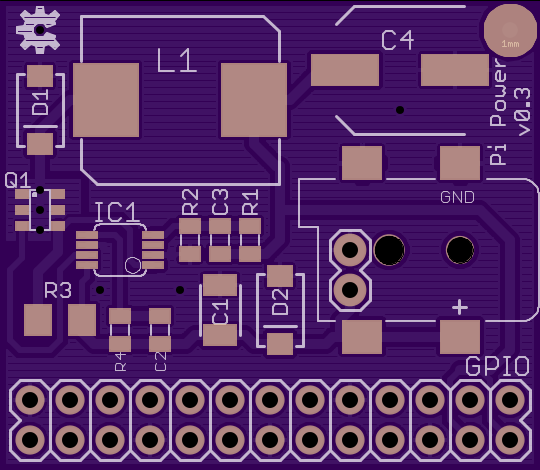

Pi Power v0.3
by
nsayer.
2
layer board of
1.35x1.18
inches
(34.29x29.85
mm).
Shared on
July 24th, 2014 21:38.
A 6-12 VDC in, 5V @ 2A out power supply for R-Pi.
