Divide-by-3
by
nsayer.
2
layer board of
1.00x1.25
inches
(25.43x31.78
mm).
Shared on
June 8th, 2016 02:20.
This one doesn’t work. Try this one instead.

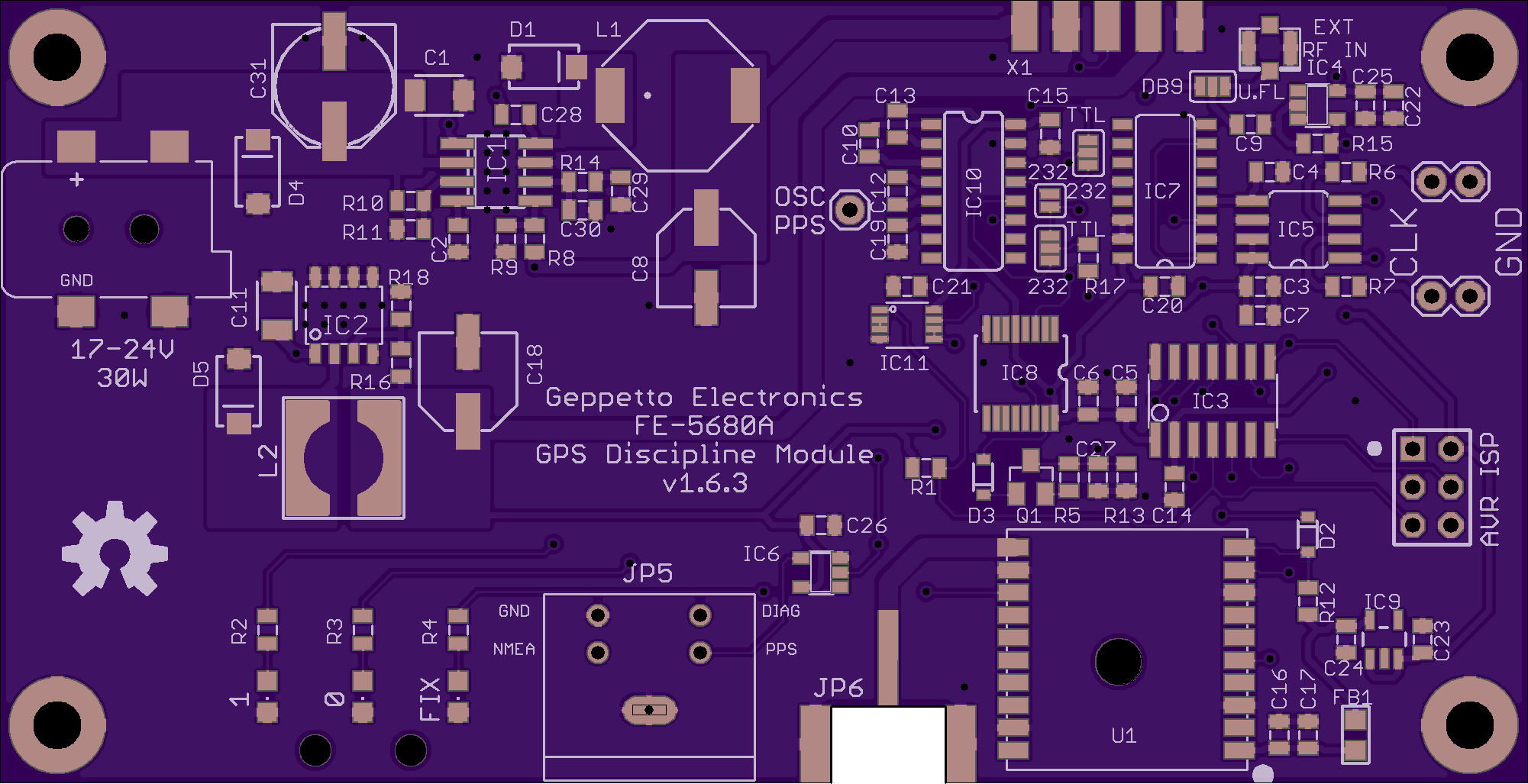

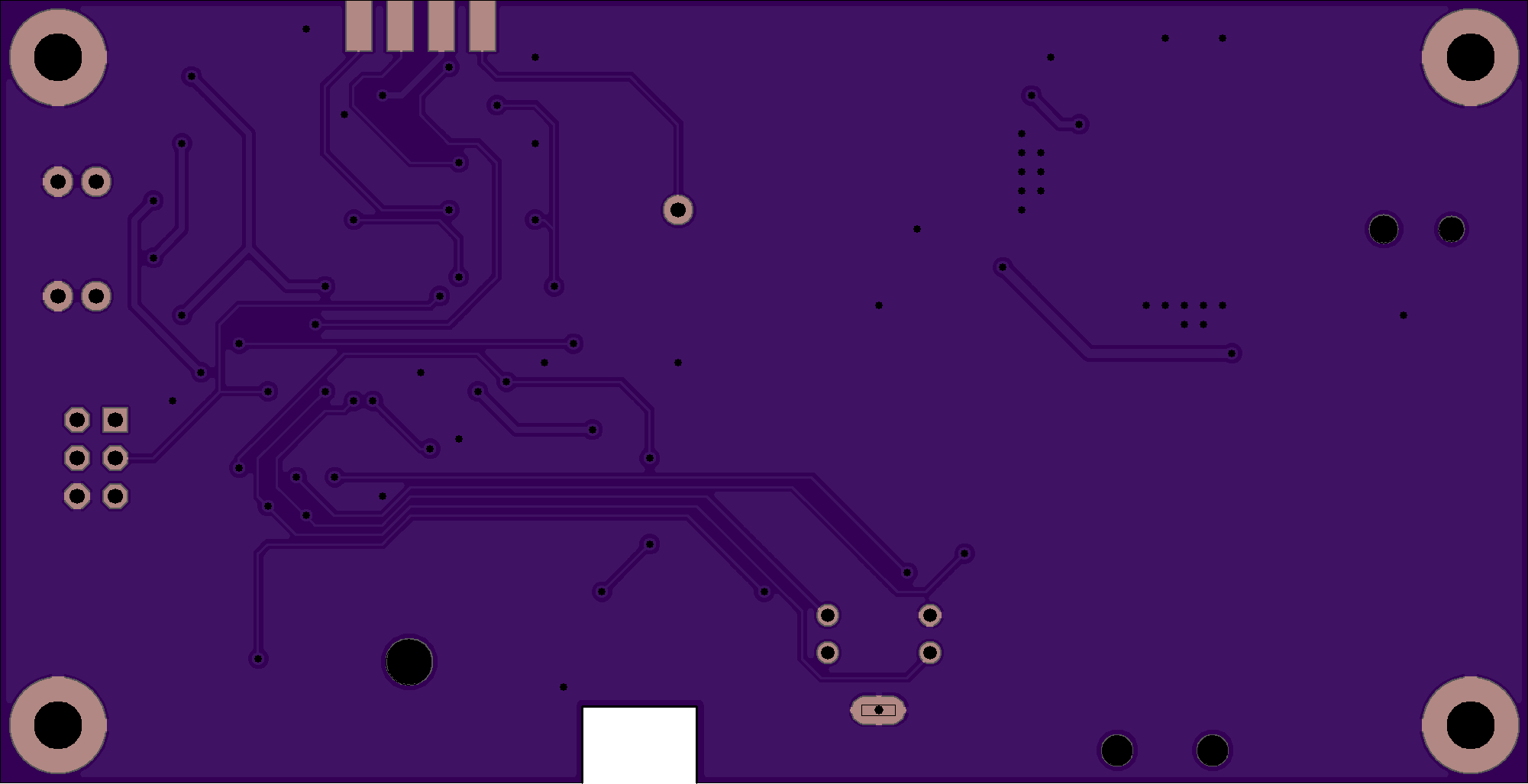

FE-5680A GPS Discipline Module v1.6.3
by
nsayer.
2
layer board of
4.00x2.05
inches
(101.60x52.15
mm).
Shared on
June 7th, 2016 14:51.
See the Hackaday project page.
Electrically no different than v1.6.1, but has legible part labels for all parts.

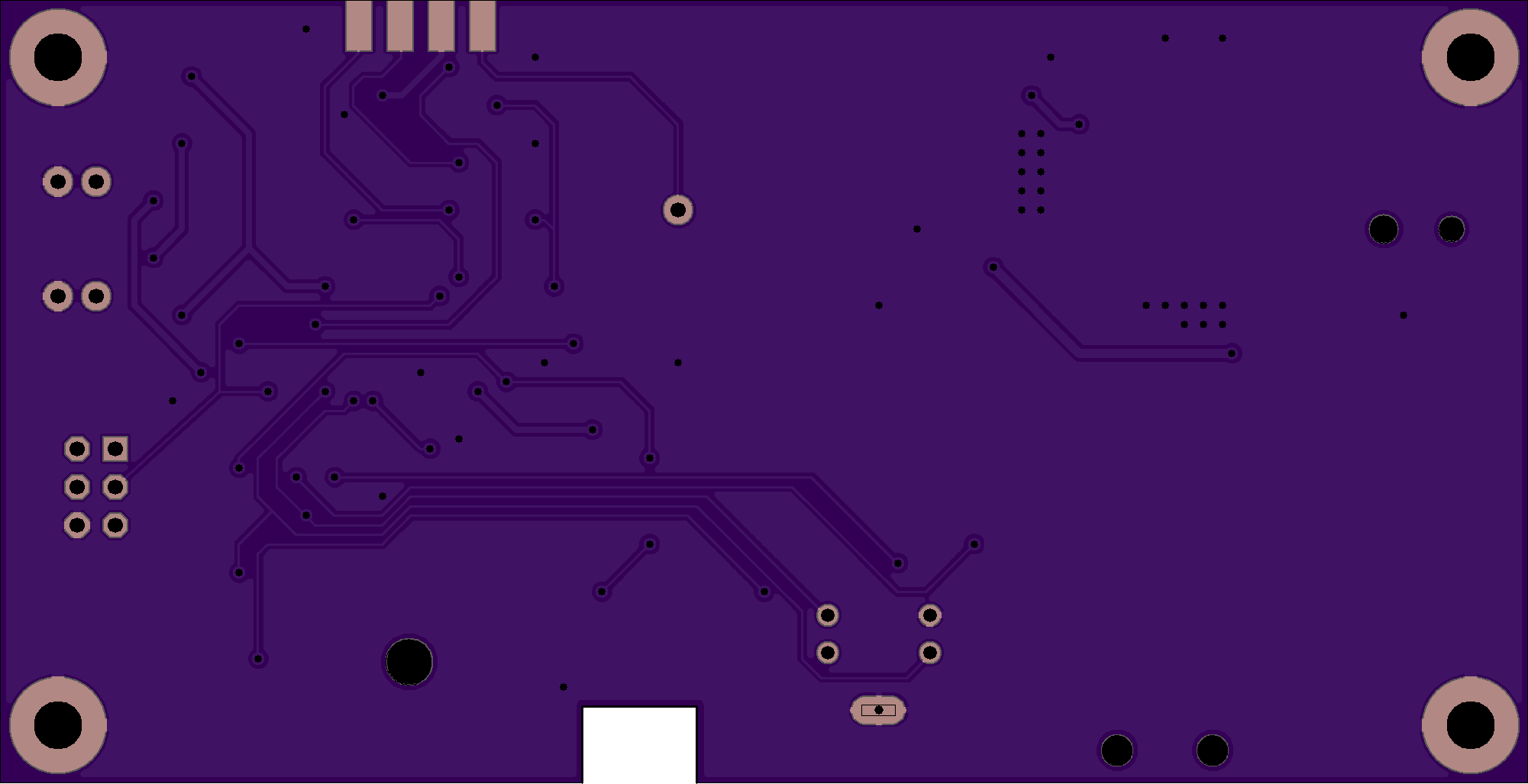

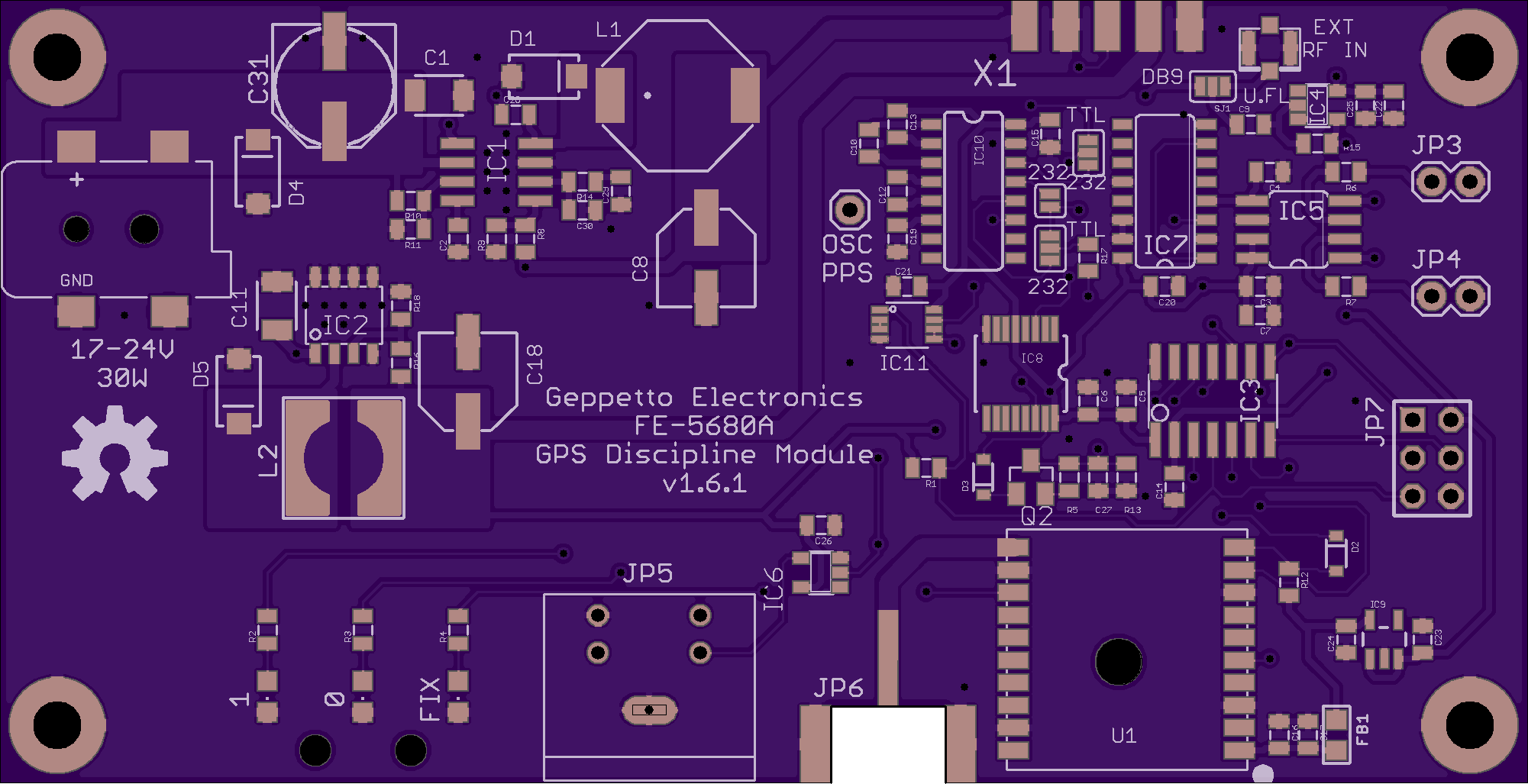

FE-5680A GPS Discipline Module v1.6.1
by
nsayer.
2
layer board of
4.00x2.05
inches
(101.60x52.15
mm).
Shared on
June 1st, 2016 00:07.

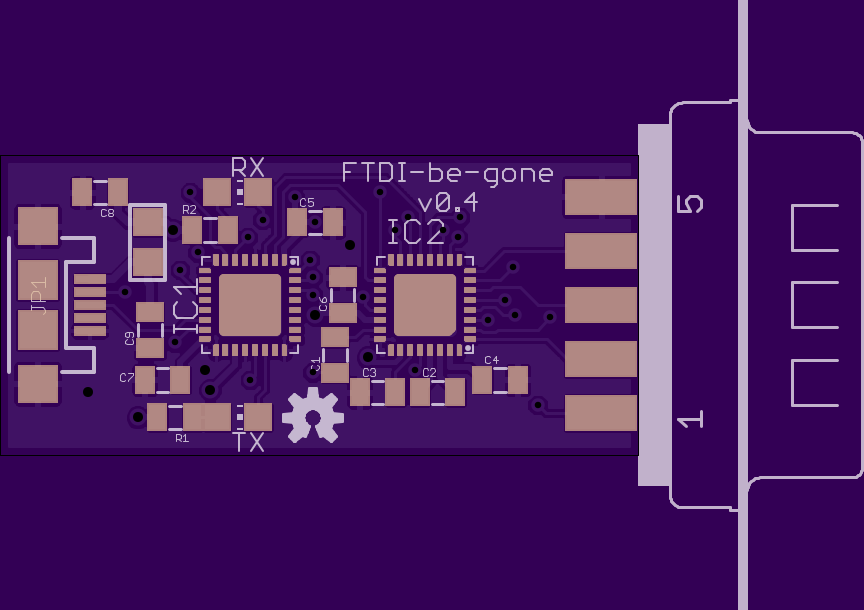

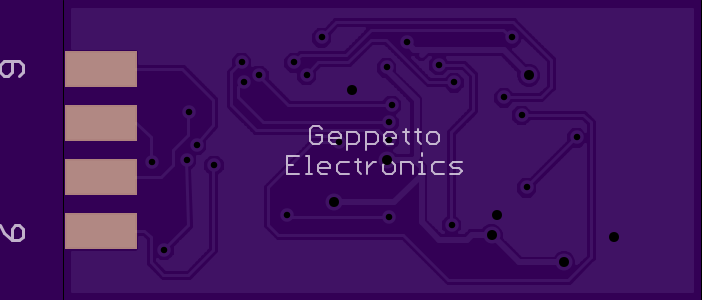

FTDI-be-gone v0.4
by
nsayer.
2
layer board of
1.28x0.60
inches
(32.41x15.27
mm).
Shared on
February 27th, 2016 08:16.
This board will take a Cypress Semi CY7C65213 USB UART and a MAX3243ECRHBR RS-232 level converter. The Cypress Semi part uses USB class drivers built-in to the OS, so there’s no opportunity for vendor driver shenanigans like “FTDI-gate.”

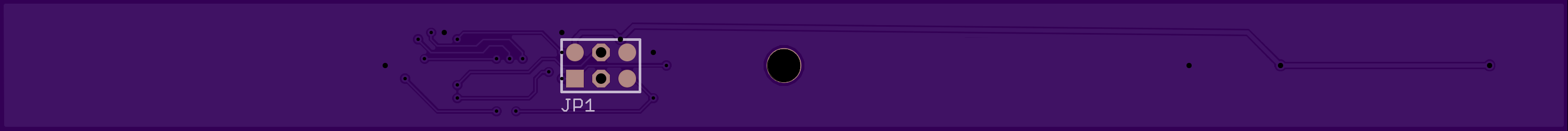

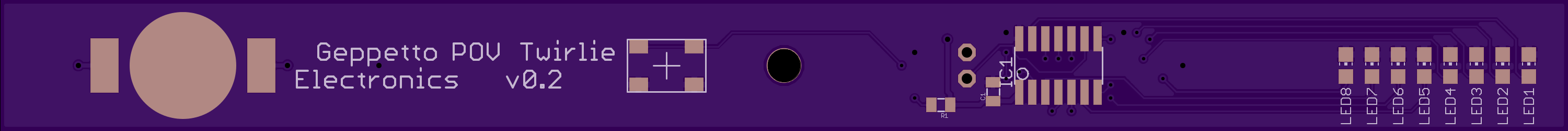

POV Twirlie v0.2
by
nsayer.
2
layer board of
6.00x0.50
inches
(152.40x12.70
mm).
Shared on
December 30th, 2015 18:01.
Uses the same firmware as the Tiny Blinky. Mount it on a dowel and twirl it between your hands and watch the lights trace out POV patterns.
This version moves the battery inwards slightly to try and improve the balance, and moves the LEDs closer together to make better patterns.
