sn-7xfinalrevBgerb.zip

by sharedmu2p.
Top
Bottom

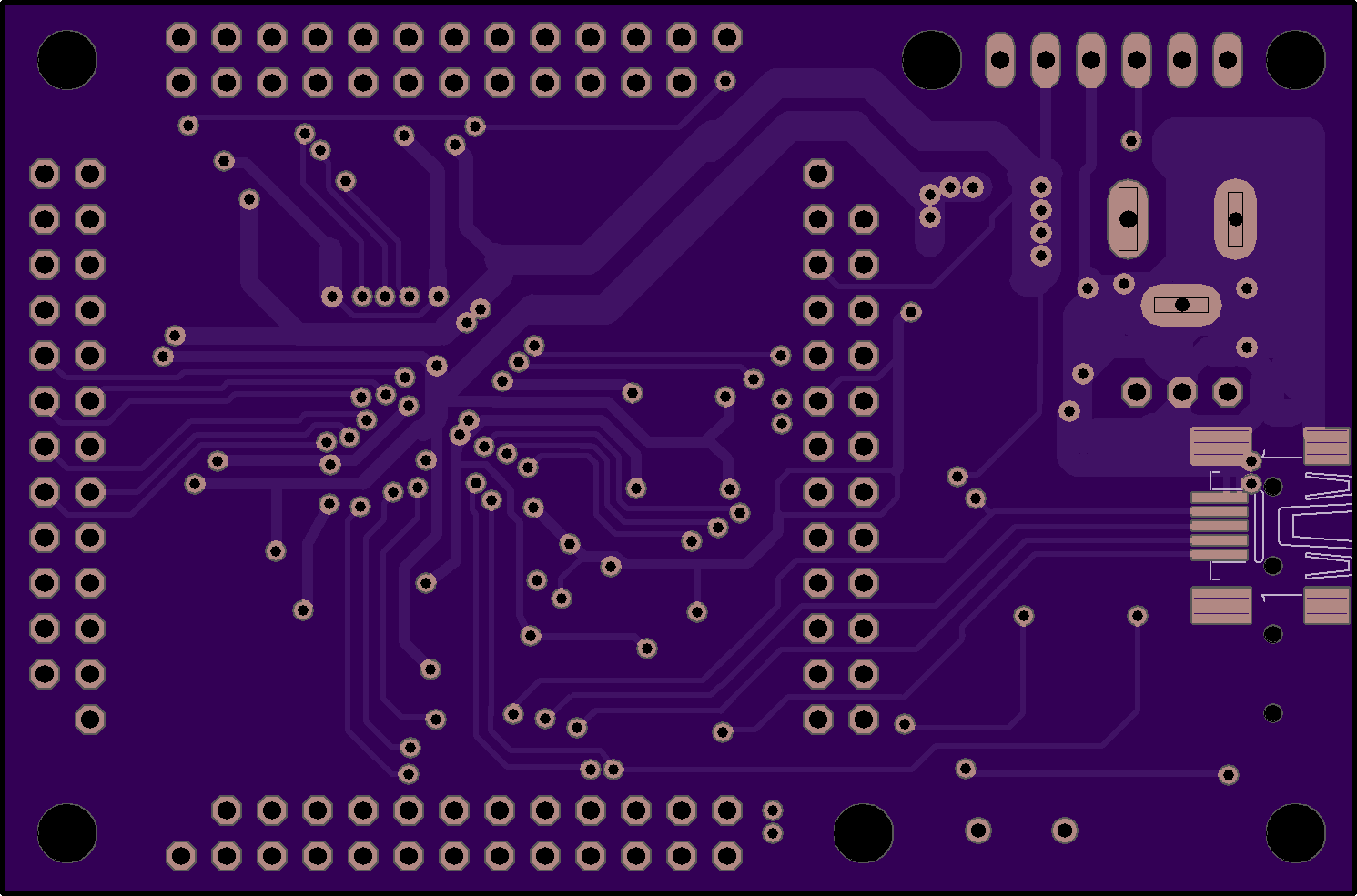

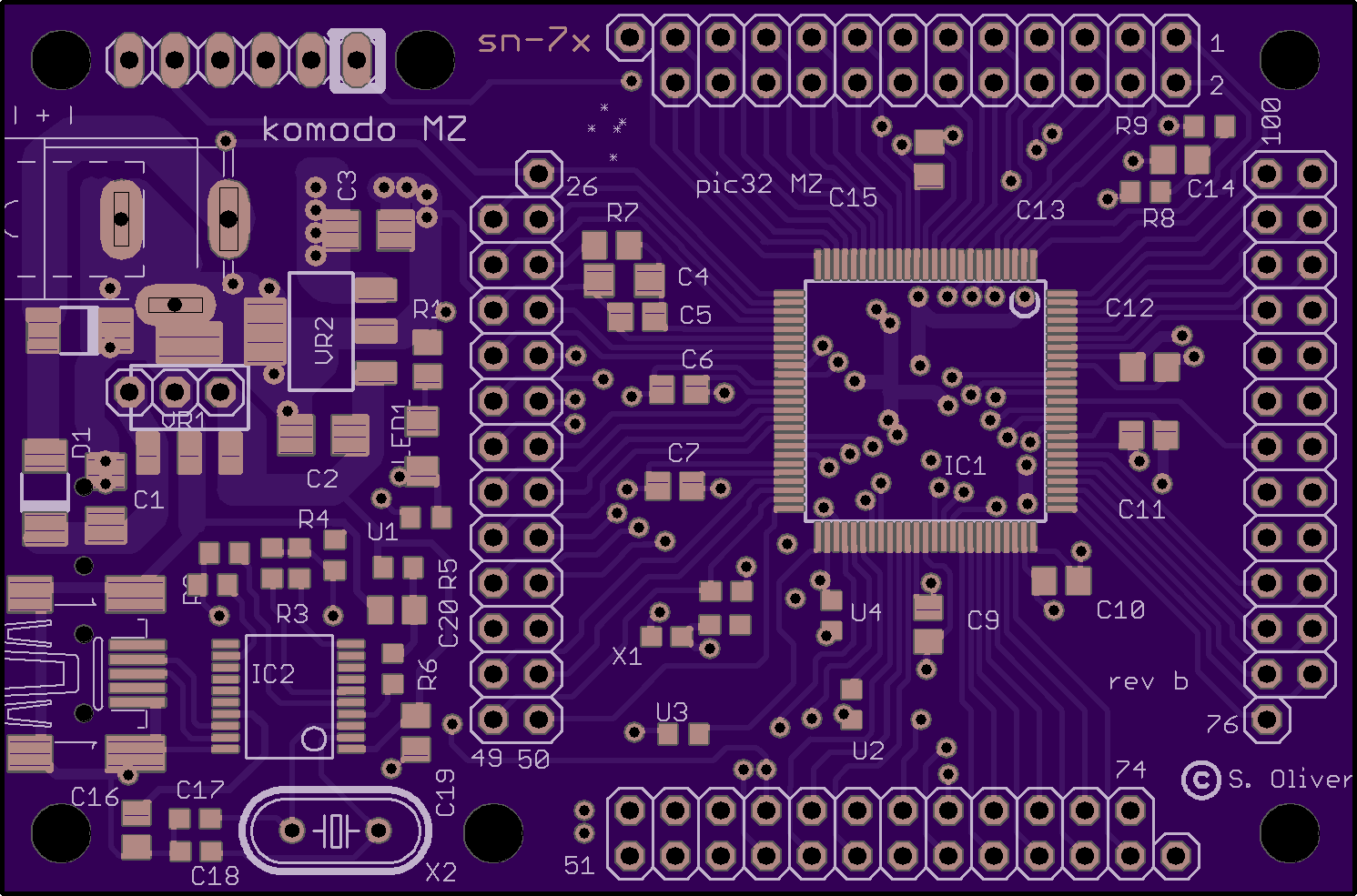

2 layer board of 2.98x1.97 inches (75.77x50.04 mm).
Shared on January 3rd, 2017 01:27.

pic32MZ EF 100 pin 200Mhz sbc, mcp 2221 or mcp 2200 serial link + usb direct, 24Mhz osc, power supply with pcb or TO-220 regulator for high temp/voltage, tested and works ok.

More details at http://www.thebackshed.com/forum/forum_posts.asp?TID=9245&PN=1&TPN=1

[PS there is provision for usb-hosting using usbid which is not tested yet]
