PID Controller Board

by mechanicalamit.

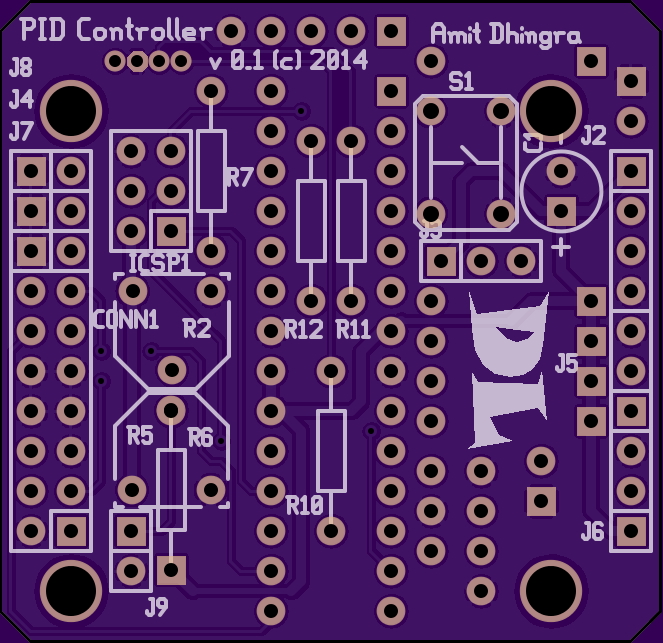

Top

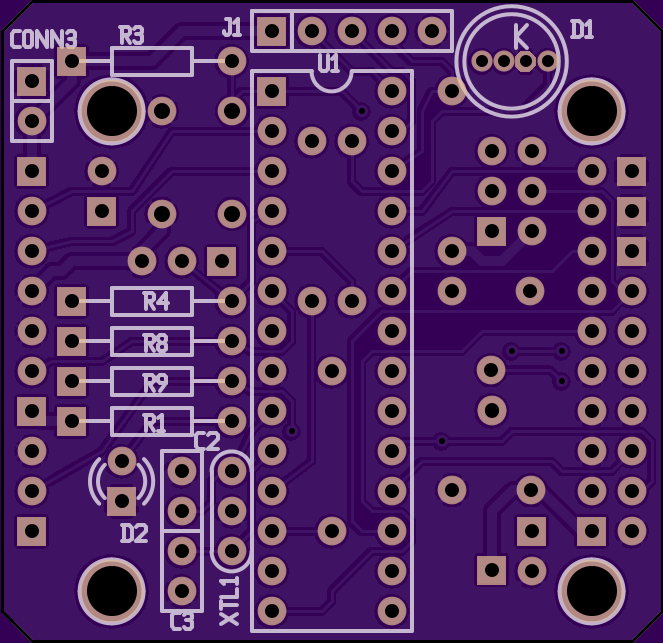

Bottom

2 layer board of 1.66x1.61 inches (42.14x40.84 mm).
Shared on August 8th, 2014 20:13.

Well, its a generic development board.

Atmega328 with adafruit joystick and click for input, 4 bit lcd interface, rgb led for mode output, gpio with pullups, gpio paired with groud for outlets.

LCD interface trimmers pots for contrast and backlight.

ICSP 6 pin header.

Serial header

External Resonator/Crystal option.
