Chimera Laser Cutter Control 1.3

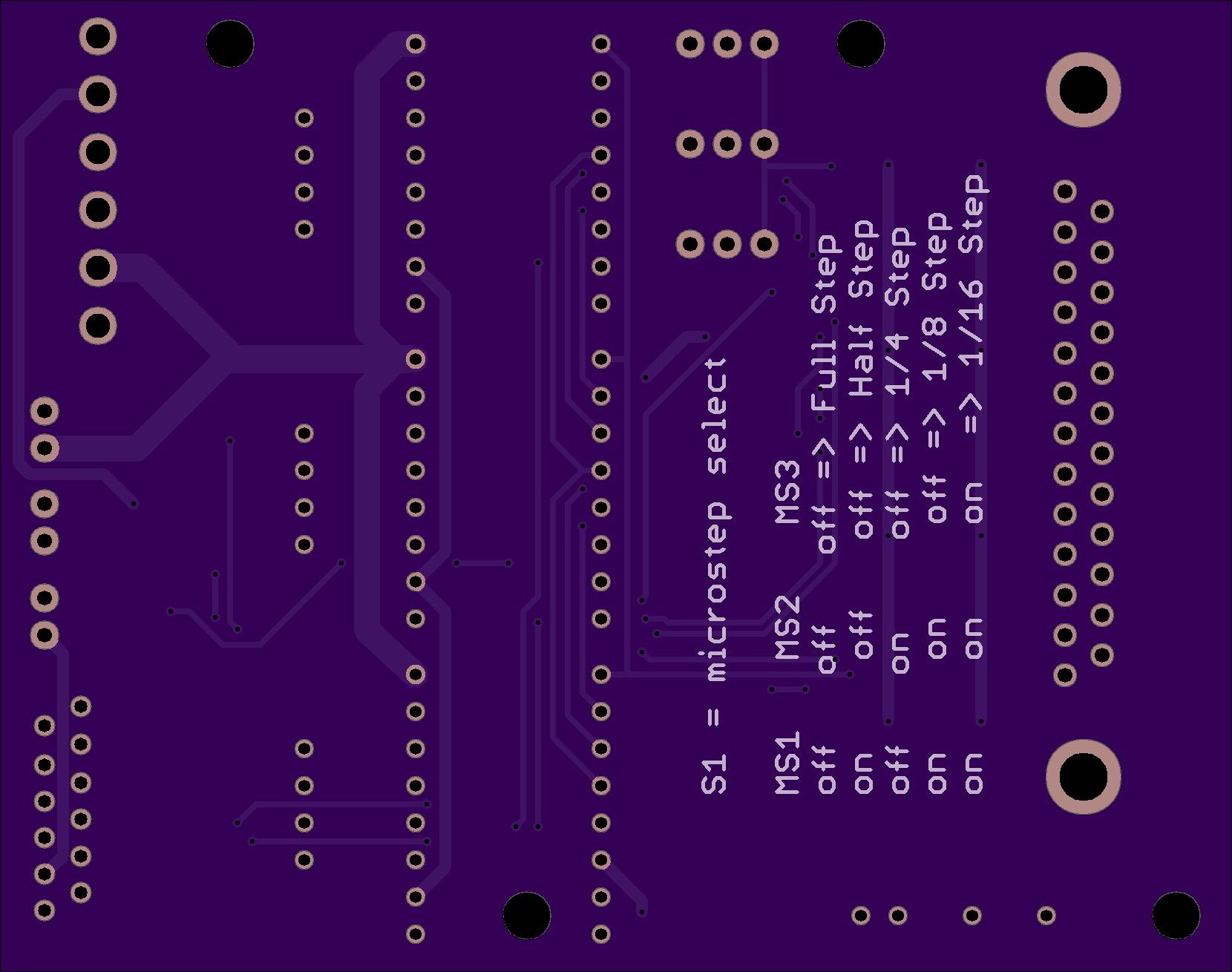

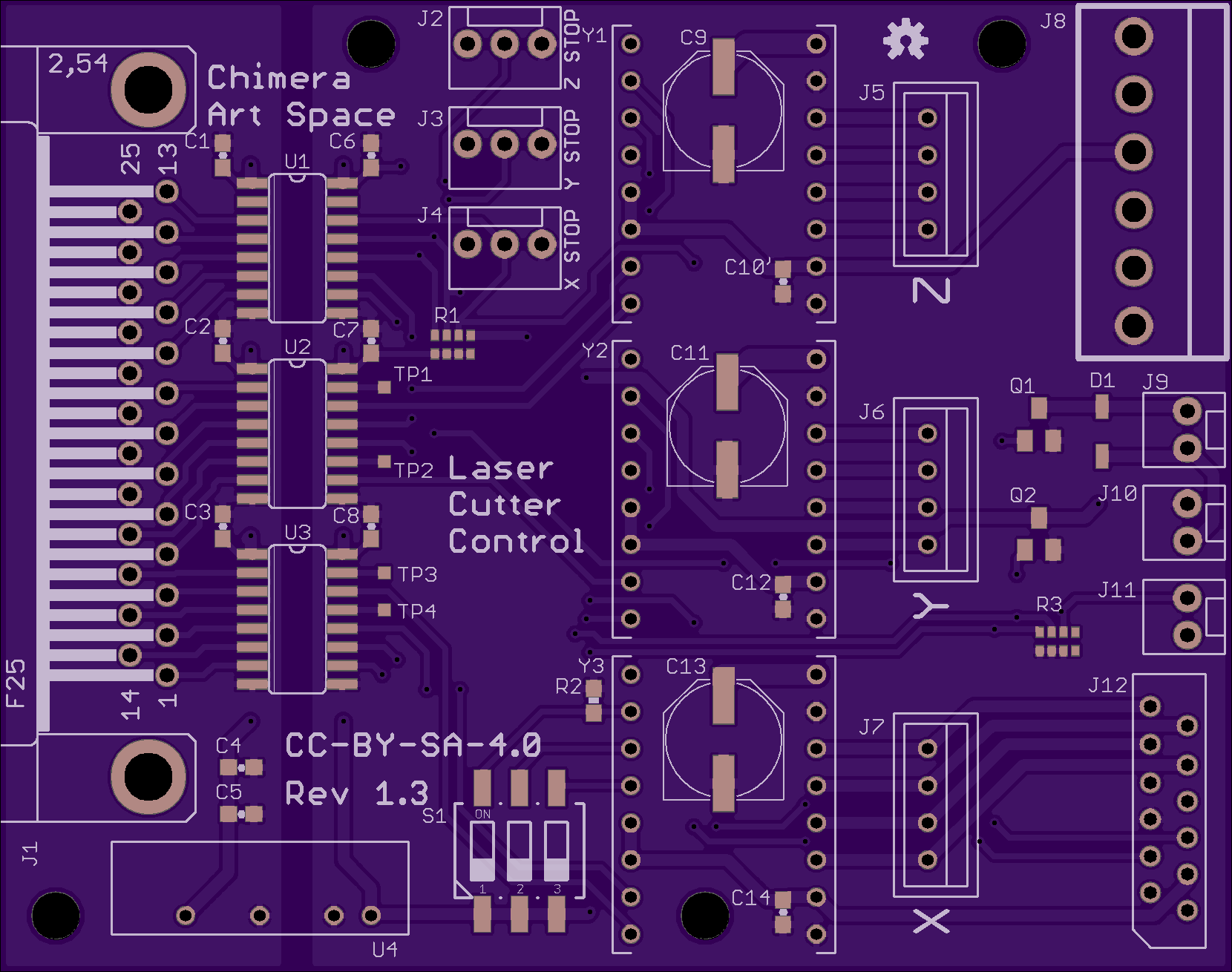

2 layer board of 3.32x2.62 inches (84.28x66.55 mm).
Shared on November 27th, 2014 08:15.

NOTE: You probably shouldn’t order this board, it has known issues and will be unshared as soon as a replacement board is figured out

This is the full-sized version of the laser cutter control board, inspired by (and possibly improved on) the original Chris Jones design so famously sold out by being featured on Hack-A-Day in 2012 (or was it 2013?). A minimum of two stepper drivers from Pololu are required, as is a handful of other parts, all available to read up on at Github: https://github.com/chimera/laser-cutter-control
