LCD adapter Plate

by mechanicalamit.

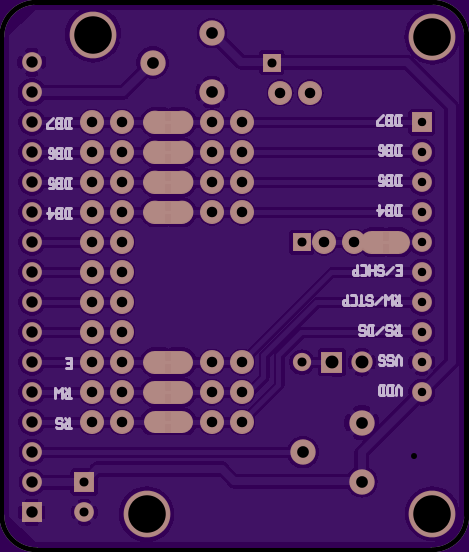

Top

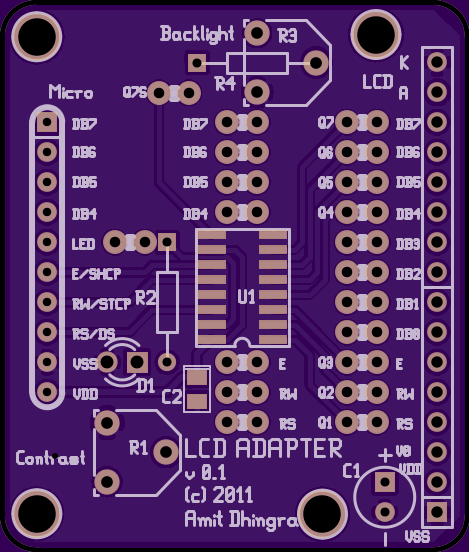

Bottom

2 layer board of 1.57x1.84 inches (39.75x46.74 mm).
Shared on August 4th, 2014 19:49.

Connect your LCD directly in 8 bit mode or 4 bit mode using a shift register (595 SOIC 16)
