mu-3p

by sharedmu2p.

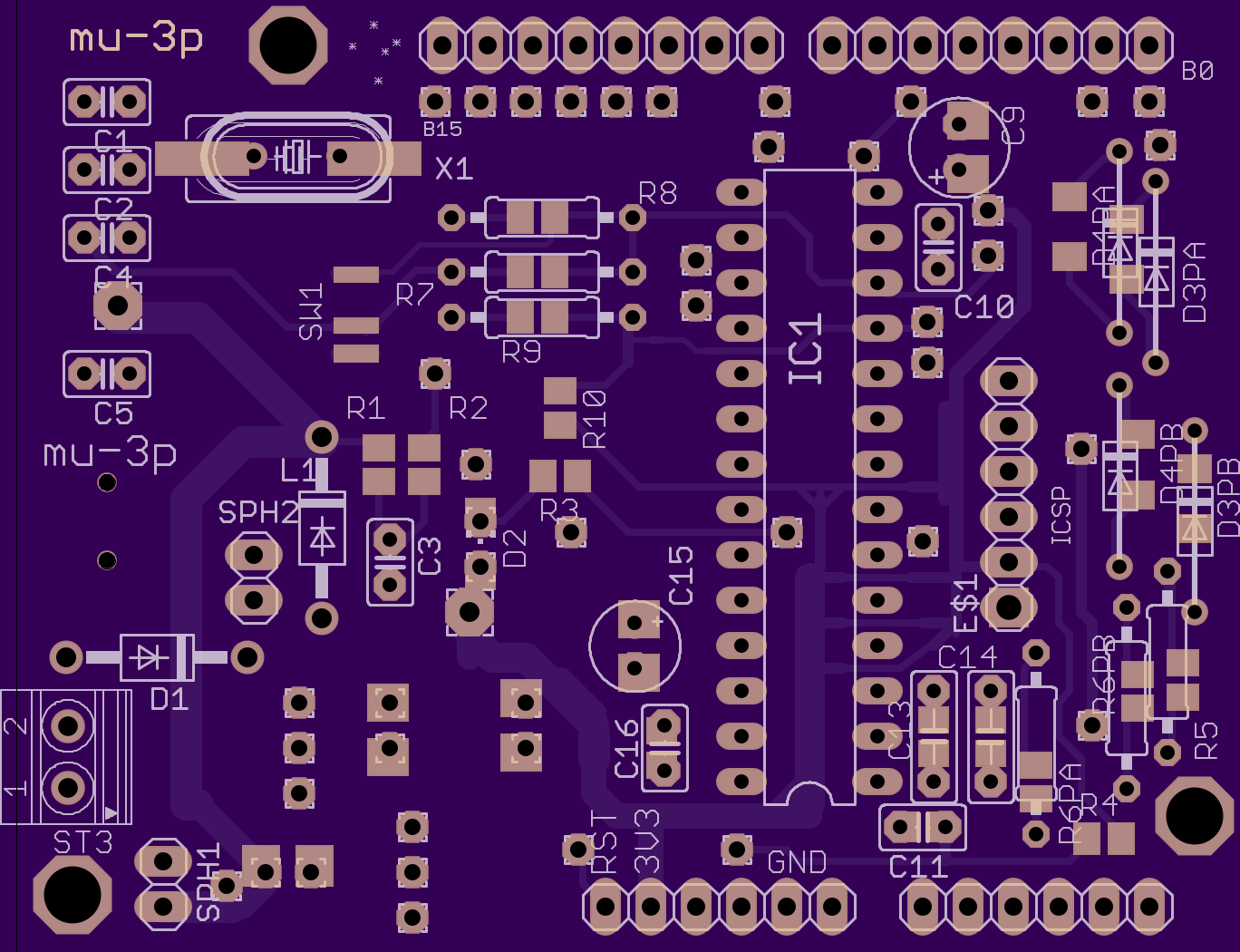

Top

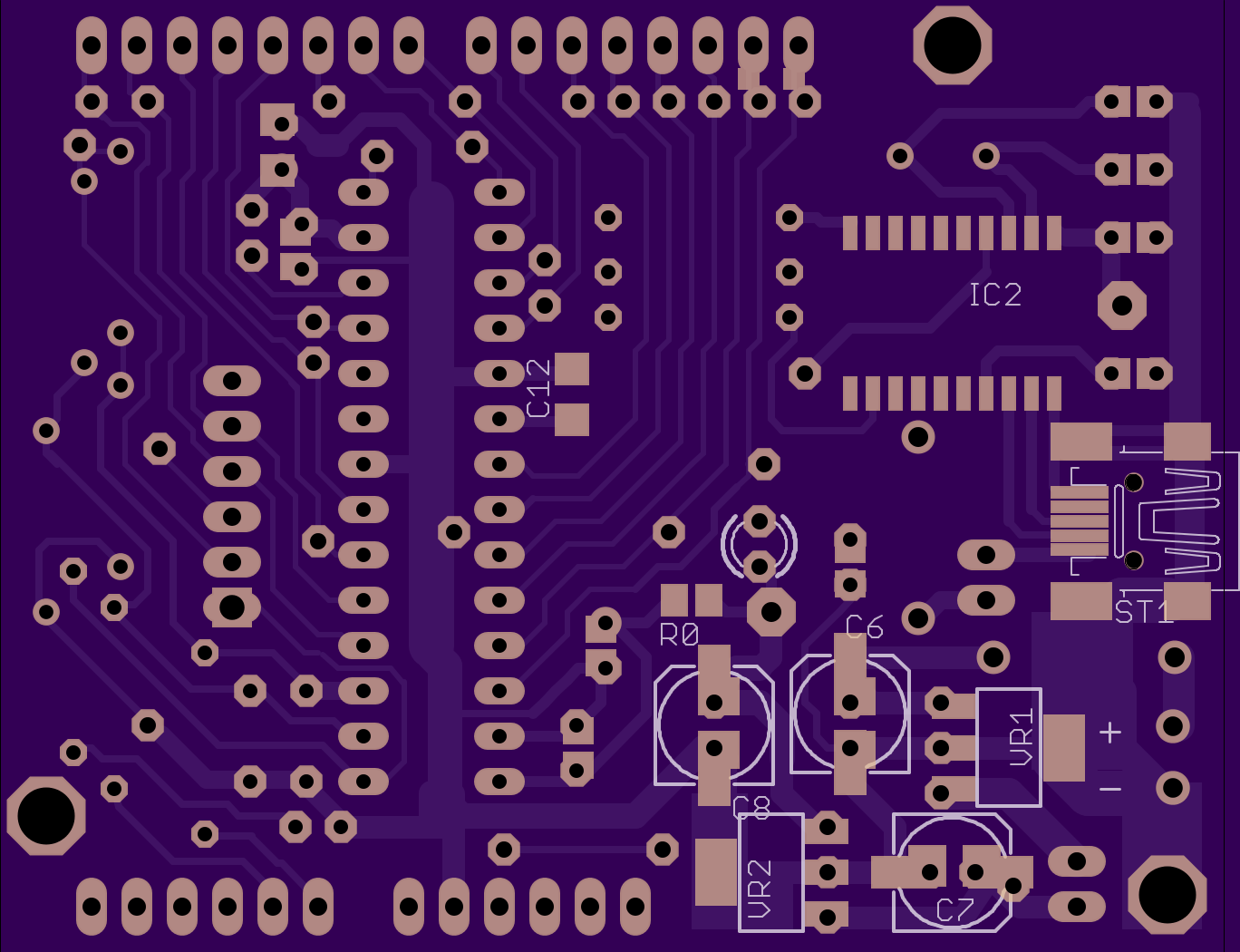

Bottom

2 layer board of 2.70x2.10 inches (68.58x53.37 mm).
Shared on June 1st, 2016 06:24.

Update of previous mu-2b [ sbc pic32mx170b + usb-serial ]

Tested and works well. Small slide switch added, switches picmx serial input to ground, ie sets auto-run for standalone use. Silkscreen updated.
