UU - MIND with STM32

by Firebirduino.

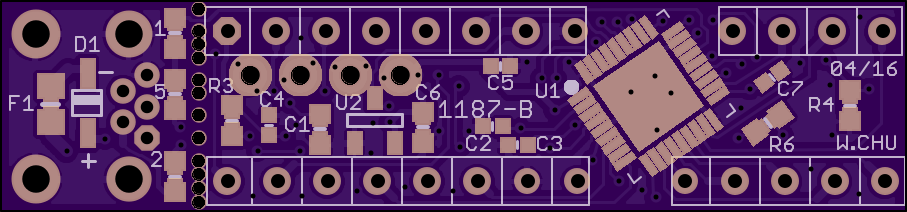

Top

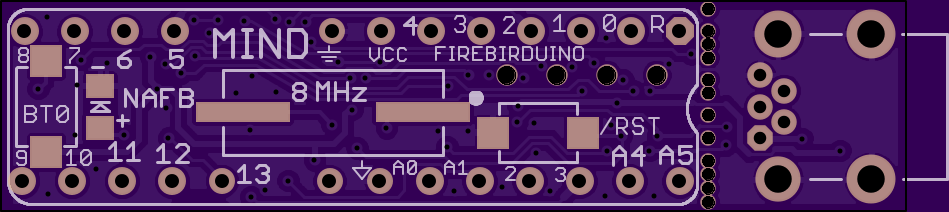

Bottom

2 layer board of 1.82x0.43 inches (46.10x10.80 mm).
Shared on April 9th, 2016 23:42.

DIY UNO Upgrade with the STM32F103TBU6,
72 MHz STM32, Cortex M3, fastest ARM controller in the UNO form factor.

ATMEGA328P DIP drop-in replacement.

Schematic and BOM available at www.firebirduino.com
