AVR Dragon ATtiny 2313, 4313 Adapter

by funkfinger.

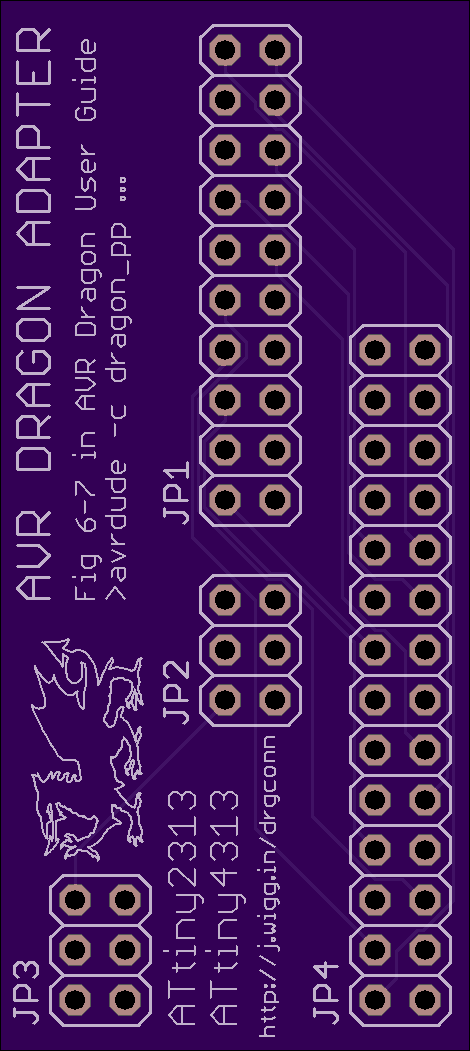

Top

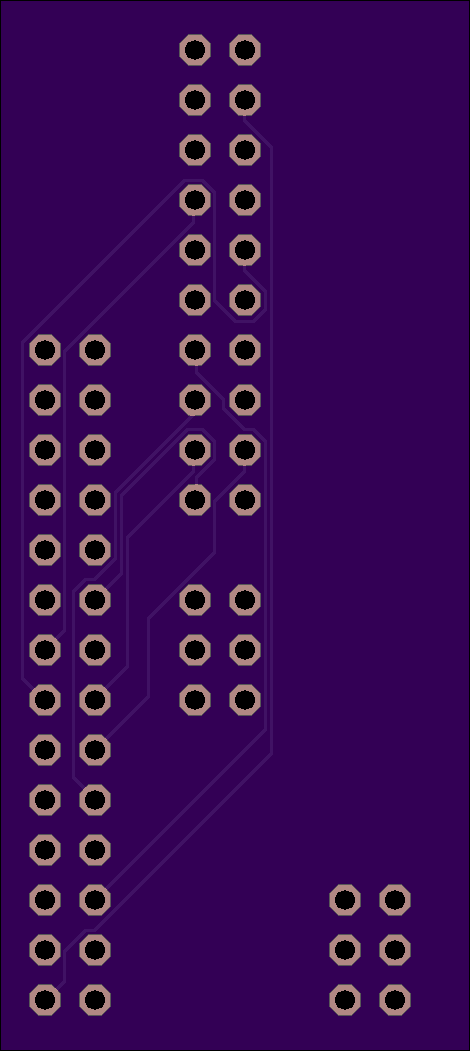

Bottom

2 layer board of 0.94x2.10 inches (23.83x53.34 mm).
Shared on November 30th, 2016 05:04.

quick connection to program an ATtiny2313, ATtiny4313 (and possibly others) with an AVR Dragon in PP mode - TESTED but not guaranteed - see Fig 6-7 in AVR Dragon User Guide

my setup

>avrdude -c dragon_pp ...
