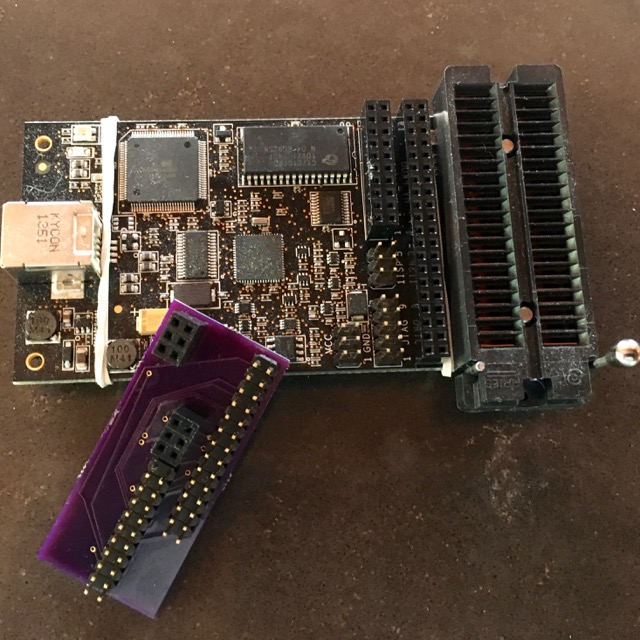

AVR Dragon ATtiny13, ATtiny85, 45, 25 Adapter
by
funkfinger.
2
layer board of
0.94x2.10
inches
(23.83x53.34
mm).
Shared on
November 30th, 2016 05:05.
quick connection to program an ATtiny13, ATtiny85, 45, 25 (and others) with an AVR Dragon in HVSP mode - TESTED but not guaranteed - see Fig 6-9 in AVR Dragon User Guide
>avrdude -c dragon_hvsp ...
I tiny more info is here.

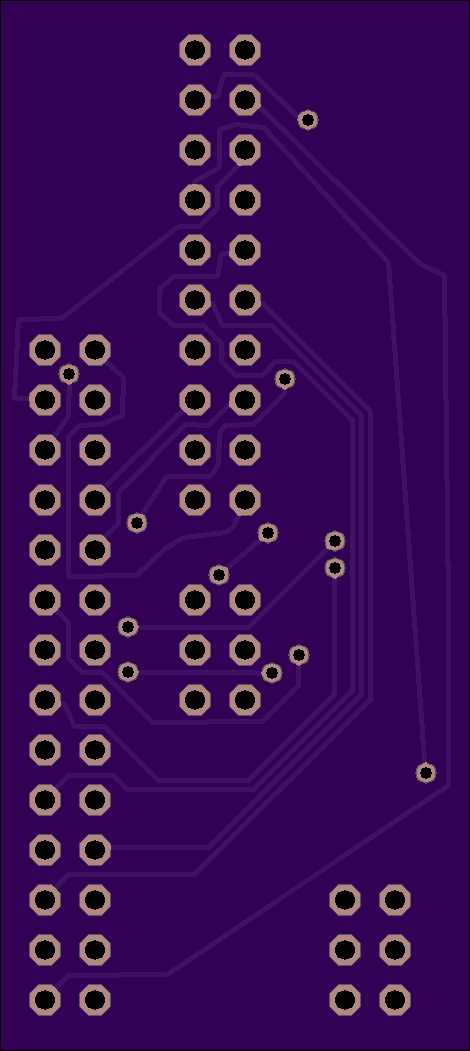

AVR Dragon ATtiny 2313, 4313 Adapter
by
funkfinger.
2
layer board of
0.94x2.10
inches
(23.83x53.34
mm).
Shared on
November 30th, 2016 05:04.
quick connection to program an ATtiny2313, ATtiny4313 (and possibly others) with an AVR Dragon in PP mode - TESTED but not guaranteed - see Fig 6-7 in AVR Dragon User Guide
>avrdude -c dragon_pp ...
I tiny more info is here.

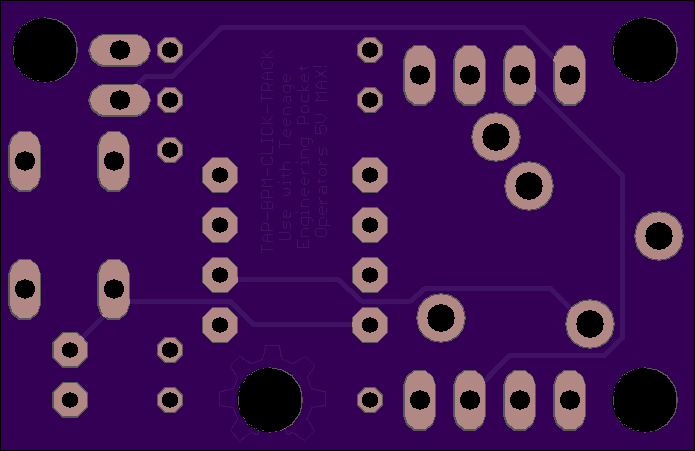

Teenage Engineering PO TAP-BPM-CLICK-TRACK
by
funkfinger.
2
layer board of
1.39x0.90
inches
(35.26x22.86
mm).
Shared on
May 2nd, 2016 22:45.
Teenage Engineering PO TAP-BPM-CLICK-TRACK - TESTED but no guarantees see this and this for more info…

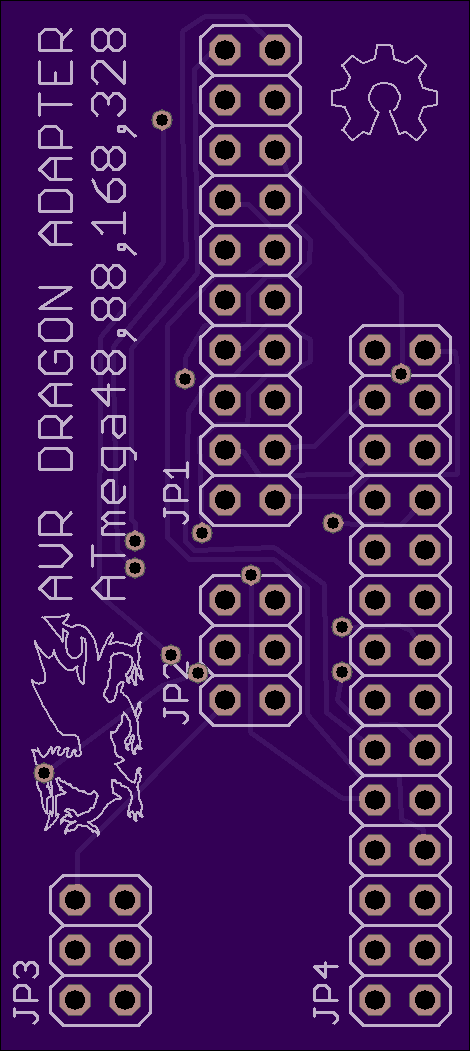

AVR Dragon ATmega 328 Adapter
by
funkfinger.
2
layer board of
0.94x2.10
inches
(23.83x53.34
mm).
Shared on
May 2nd, 2016 00:07.
quick connection to program an ATmega 328 (and others) with an AVR Dragon in parallel programming mode - TESTED but not guaranteed - see Fig 6-5 in AVR Dragon User Guide
>avrdude -c dragon_pp ...
I tiny more info is here.
