Mini Stick V3 - Atmega 328P Ardweeny style

by Firebirduino.

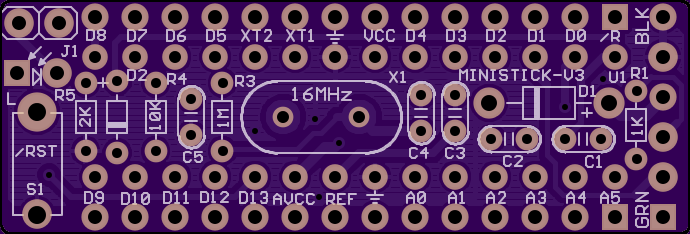

Top

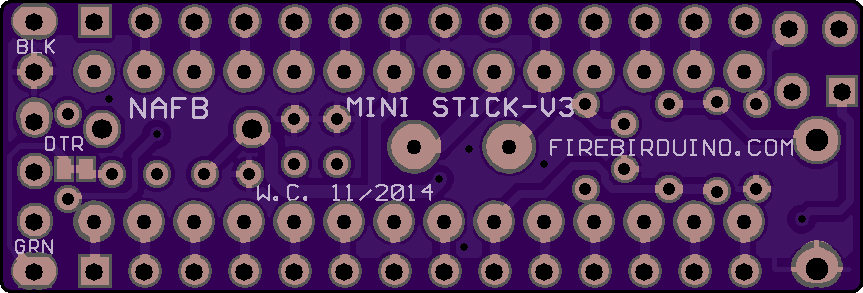

Bottom

2 layer board of 1.73x0.59 inches (43.84x14.91 mm).
Shared on November 15th, 2014 03:11.

Low cost version of the Mini Stick using low cost socket strips. Atmega328P DIP module in Ardweeny style for prototyping, Arduino UNO compatible, made with all through hole parts, including a16 MHz crystal and a reverse polarity protection diode for USB port. No soldering is required on Atmega328P’s pins.

See details at: http://www.firebirduino.com/mini_stick/
