Radio Nano Module with nRF24L01+

by Firebirduino.

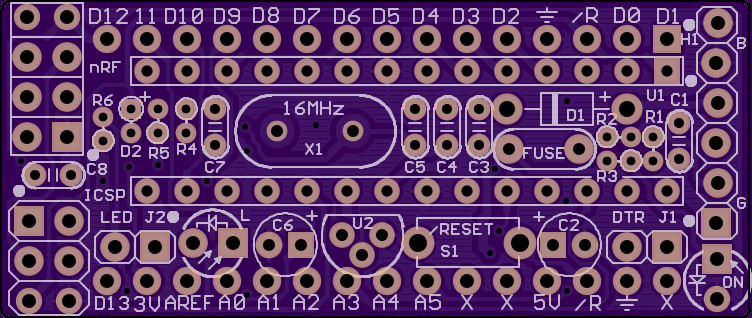

Top

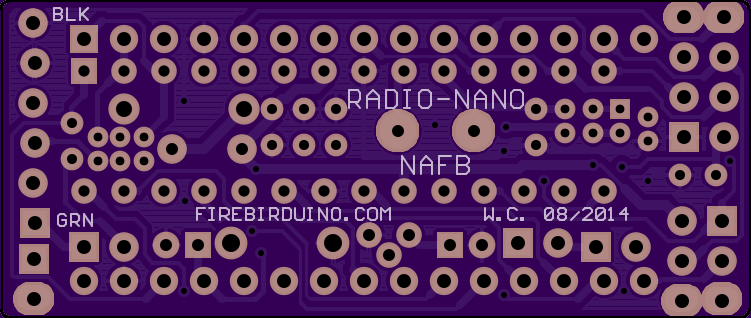

Bottom

2 layer board of 1.88x0.80 inches (47.70x20.22 mm).
Shared on September 9th, 2014 14:00.

Atmega 328P DIP module with nRF24L01+ interface in Arduino Nano footprint.

All through hole components, 16Mhz crystal, ICSP header and built-in interface header for nRF24L01 module.

See details at: http://www.firebirduino.com/radio_nano/
