New Mighty 1284P Stick -V2, A 40-pin DIP module

by Firebirduino.

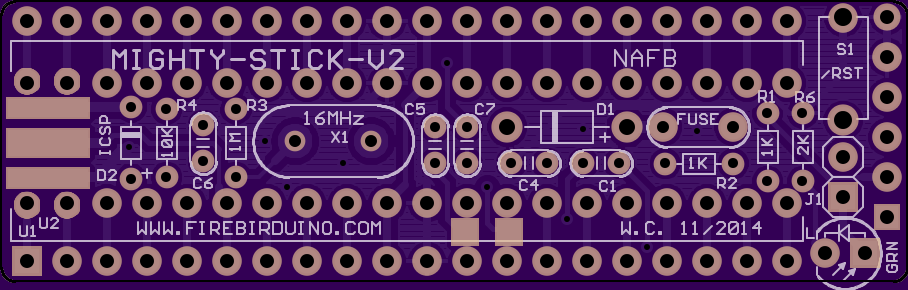

Top

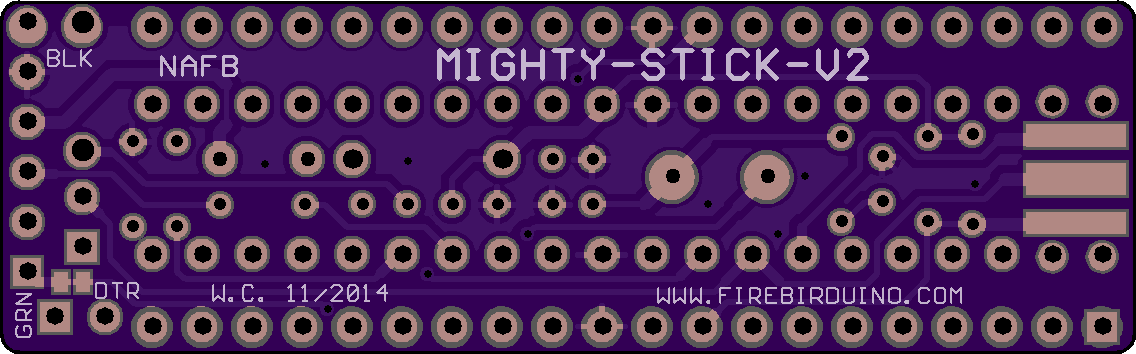

Bottom

2 layer board of 2.27x0.71 inches (57.71x17.96 mm).
Shared on November 14th, 2014 18:09.

The NEW, low cost and easy to make Mighty1284P DIP Module for breadboard prototyping. Made with all through hole components. Use the new core and exact same pinout of the original maniacbug Mighty 1284P 16MHz prototype board. Other features include the ICSP connector, resettable fuse, reset button, and D13 LED indicator.

See details at: http://www.firebirduino.com/mighty_stick/
