MinNazaOSD v3

by irun4fundotca.
Top
Bottom

2 layer board of 2.34x0.95 inches (59.36x24.13 mm).
Shared on June 29th, 2015 13:21.

MinNaza OSD v3 By 1orgar @ RCGroups

Board: Board

BOM: http://www.rcgroups.com/forums/showatt.php?attachmentid=6745855&d=1399486874

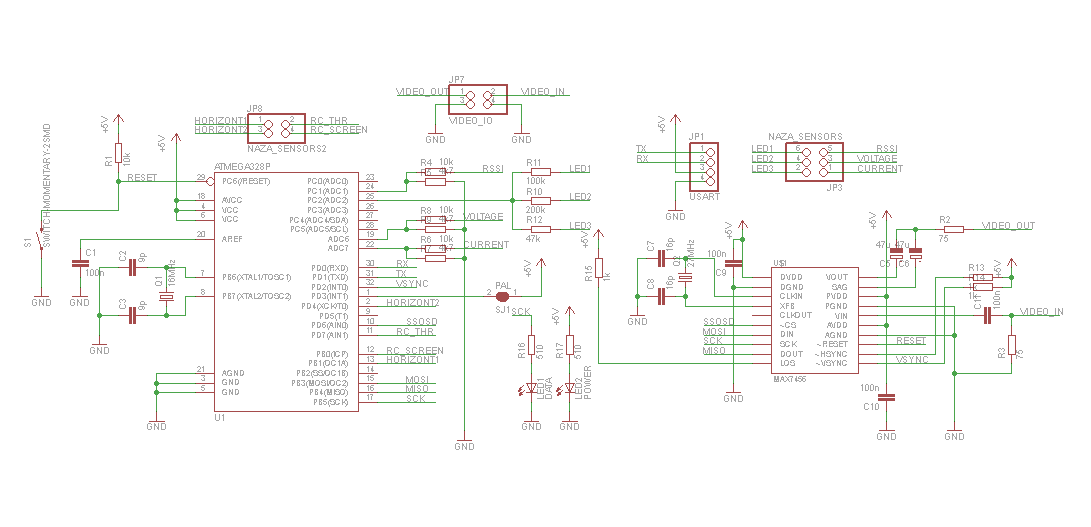

Schematic: Schematic

SJ1 on back side must be disconnected by default. This is a PAL solder switch used for calibration
