Shared projects

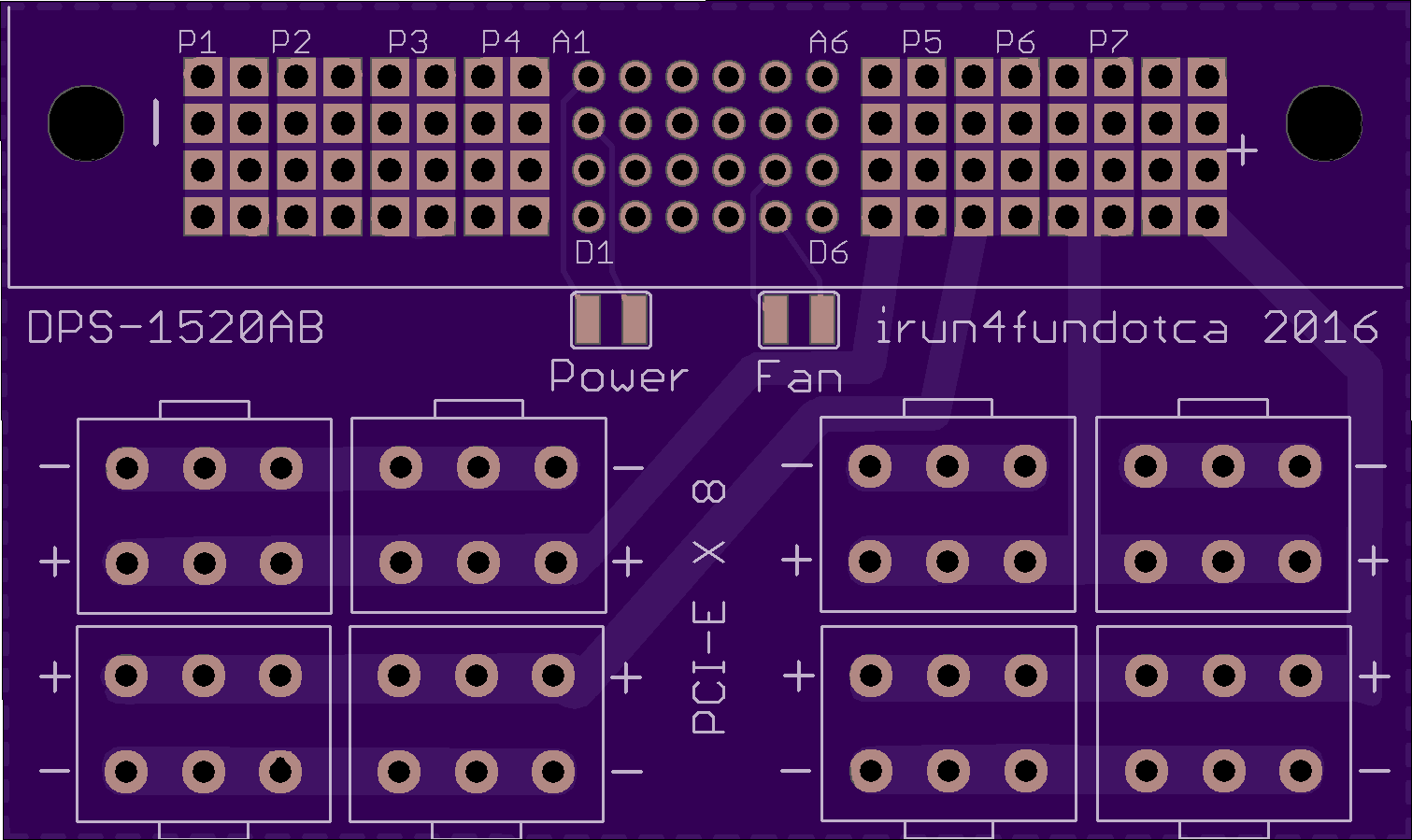

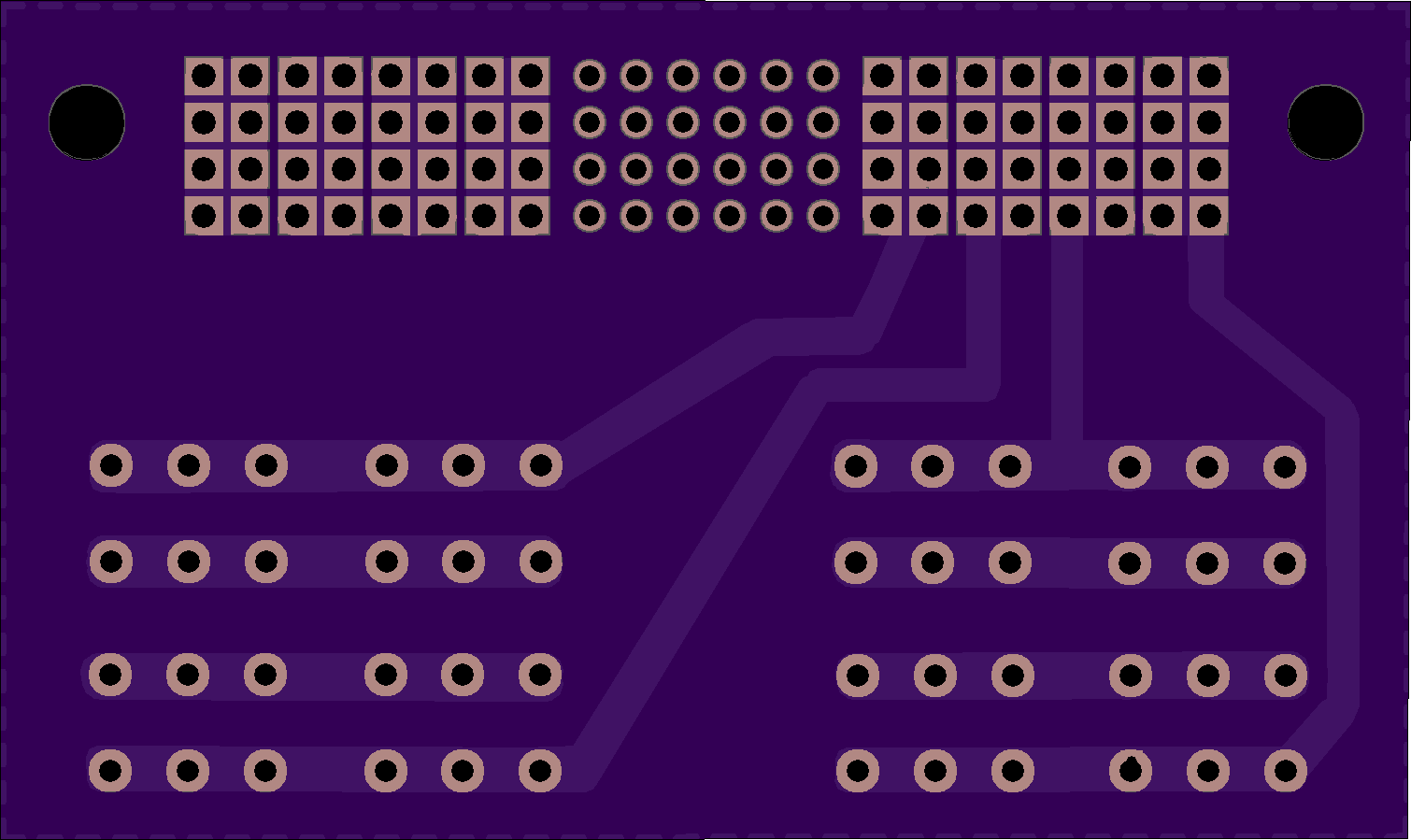

DPS-1520AB Supply 8xPCI-E Breakout v8
by
irun4fundotca.
2
layer board of
3.02x1.80
inches
(76.71x45.64
mm).
Shared on
July 1st, 2016 19:57.

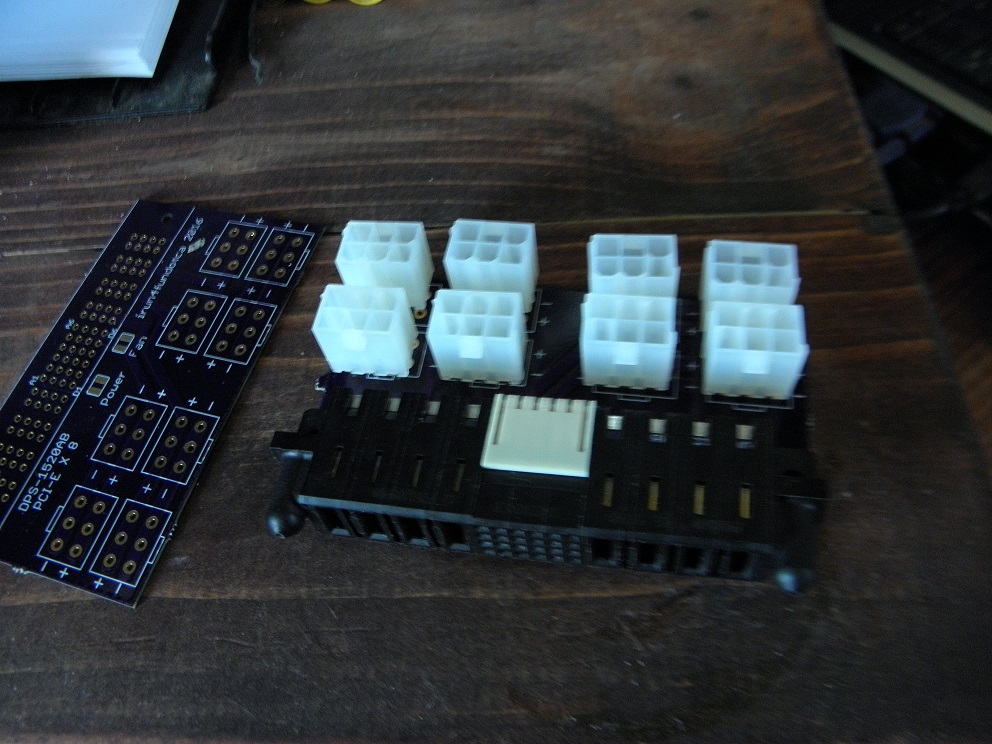

DPS-1520AB server supply hot swap breakout For Bitcoin hashing miners or RC Charging
-=FIXED Hole Spacing & Sizes=-
Supply: IBM Delta Electronics 1440W Server Power Supply (P/N: DPS-1520AB A, 39Y7354)
hot swap connectors: MOQ 200 from Amphenol FCI Part: 51939-104LF trying to find some old stock
6pin pci-e connectors: http://www.digikey.com/product-detail/en/molex-llc/0039281063/WM3802-ND/61404
Pic:
3.02x1.8 inches (77x46mm). $27.10

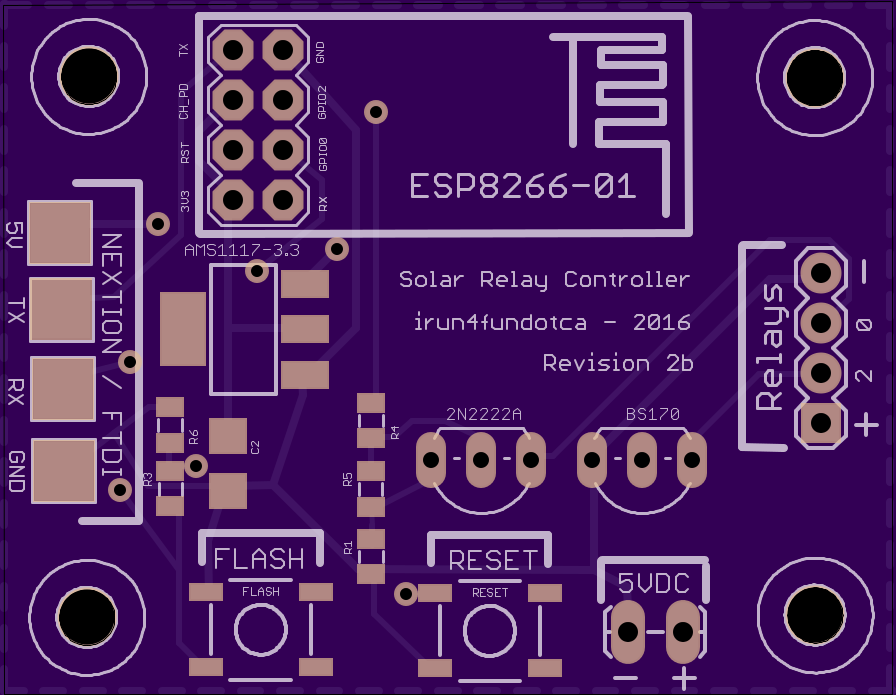

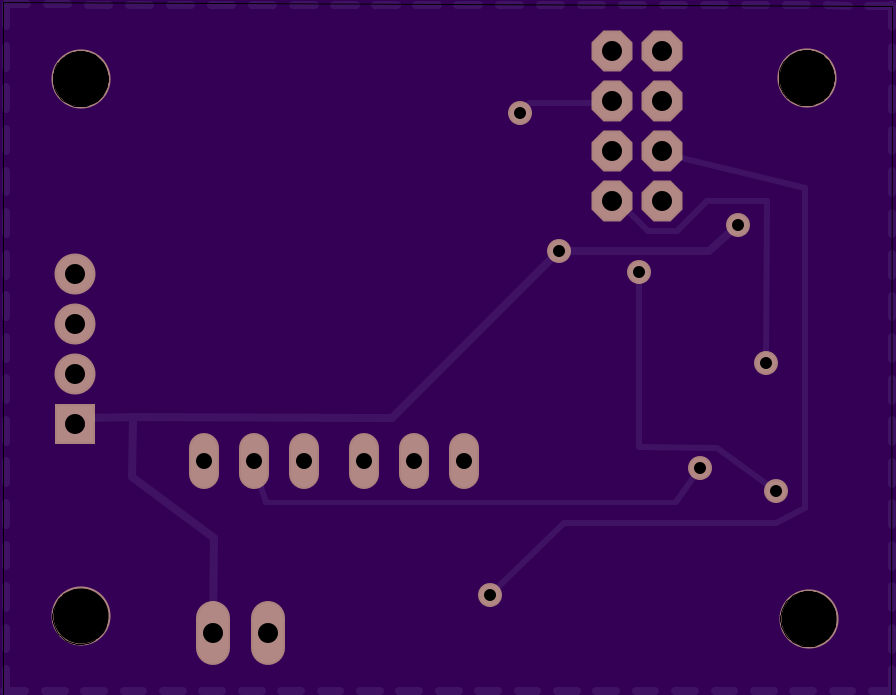

IOT- ESP8266 Dual Relay Shield v2B - Semi-tested
by
irun4fundotca.
2
layer board of
1.78x1.39
inches
(45.19x35.23
mm).
Shared on
April 25th, 2016 22:43.
Changed NPN1
More info: https://hackaday.io/project/10192-iot-esp8266-dual-relay-module-controller-shield
And: http://www.rcgroups.com/forums/showpost.php?p=33907540&postcount=132
45x35mm. $12.30 for three.

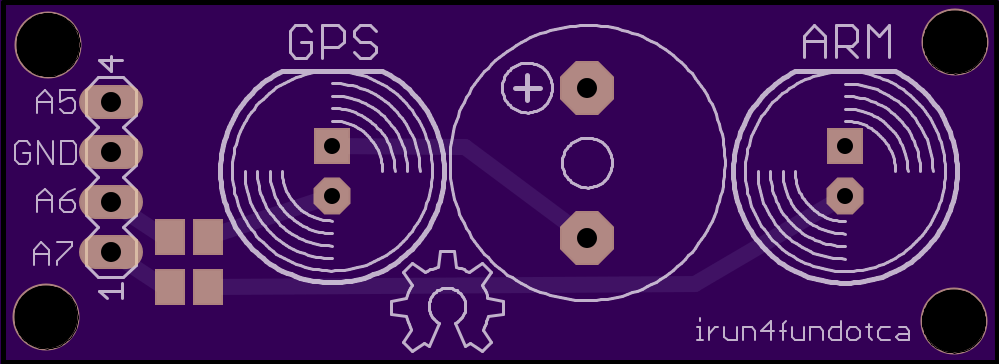

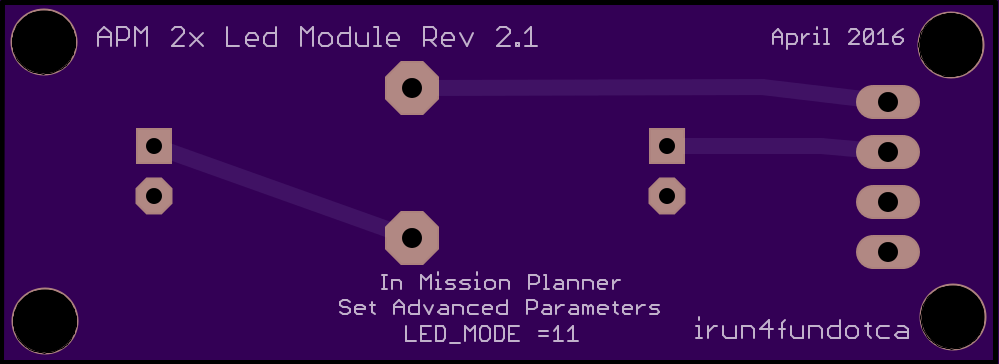

APM LED Buzzer Module v2.1
by
irun4fundotca.
2
layer board of
2.00x0.73
inches
(50.75x18.52
mm).
Shared on
April 3rd, 2016 15:41.
APM 2.x led & buzzer module v2 Provides ARM & GPS Status & Buzzer Will work with both APM2.x & KK2.x (tested)
More info: http://www.rcgroups.com/forums/showpost.php?p=25792108&postcount=95
2x0.73 inches (51x19mm). $7.25 for three.

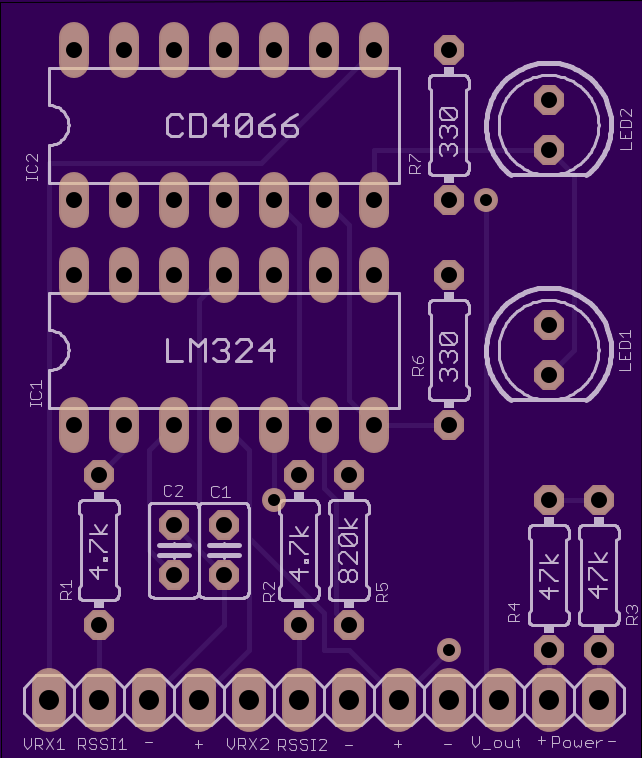

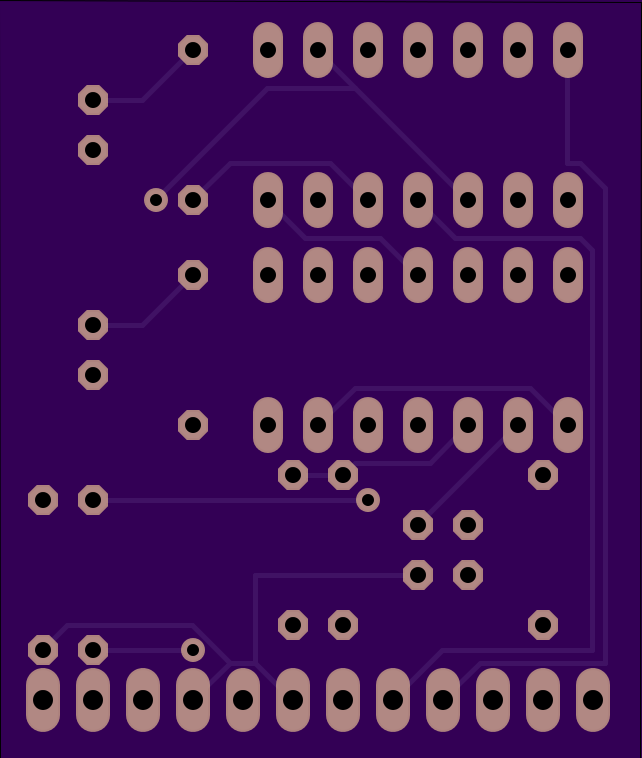

diversity brd fix
by
irun4fundotca.
2
layer board of
1.28x1.52
inches
(32.61x38.51
mm).
Shared on
April 1st, 2016 04:16.
fix traces “autorouted”

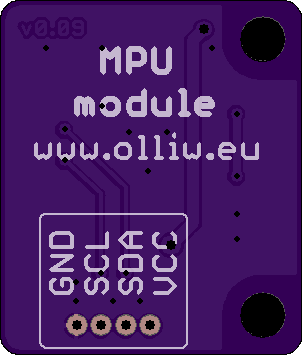

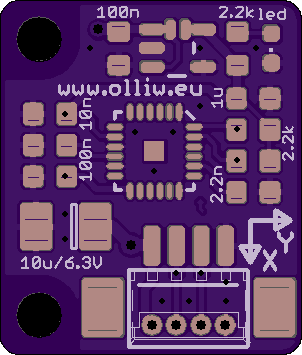

Storm32 BGC MPU v0.09
by
irun4fundotca.
2
layer board of
0.60x0.71
inches
(15.34x18.01
mm).
Shared on
July 1st, 2015 12:48.
$2.10 for three
