555 IR Repeater

by mechanicalamit.
Top
Bottom

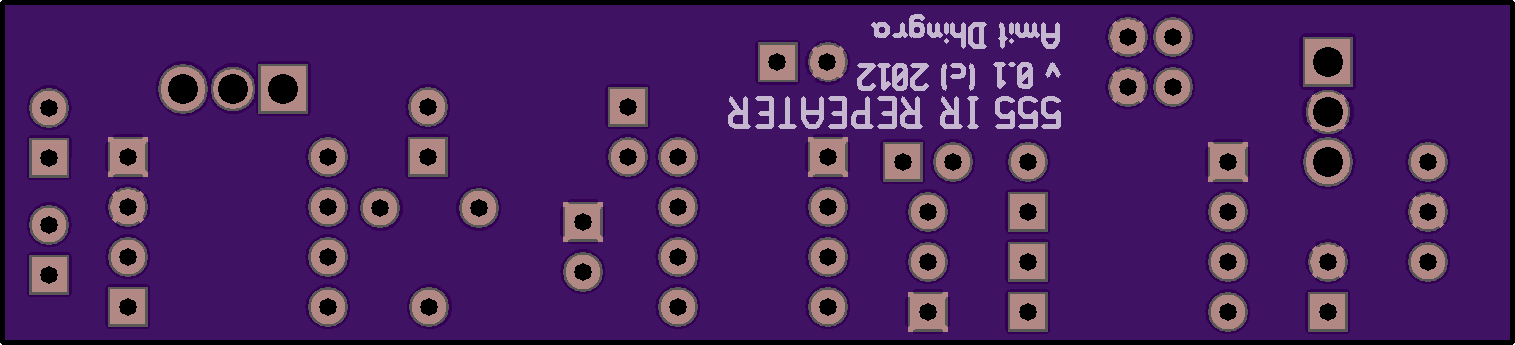

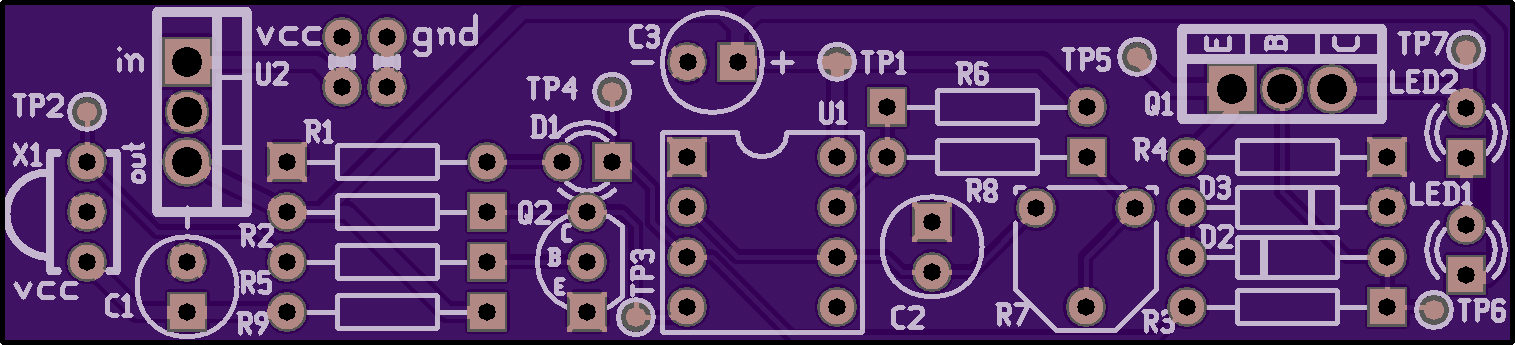

2 layer board of 3.03x0.69 inches (76.96x17.53 mm).
Shared on August 4th, 2014 19:49.

Read in IR using a TSOP sensor and output via two constant current IR LEDs. Frequency can be calibrated using a POT.

Detector and IR LEDs should be out of sign of each other.
