sn-5xgfinalkmderb.zip

by sharedmu2p.

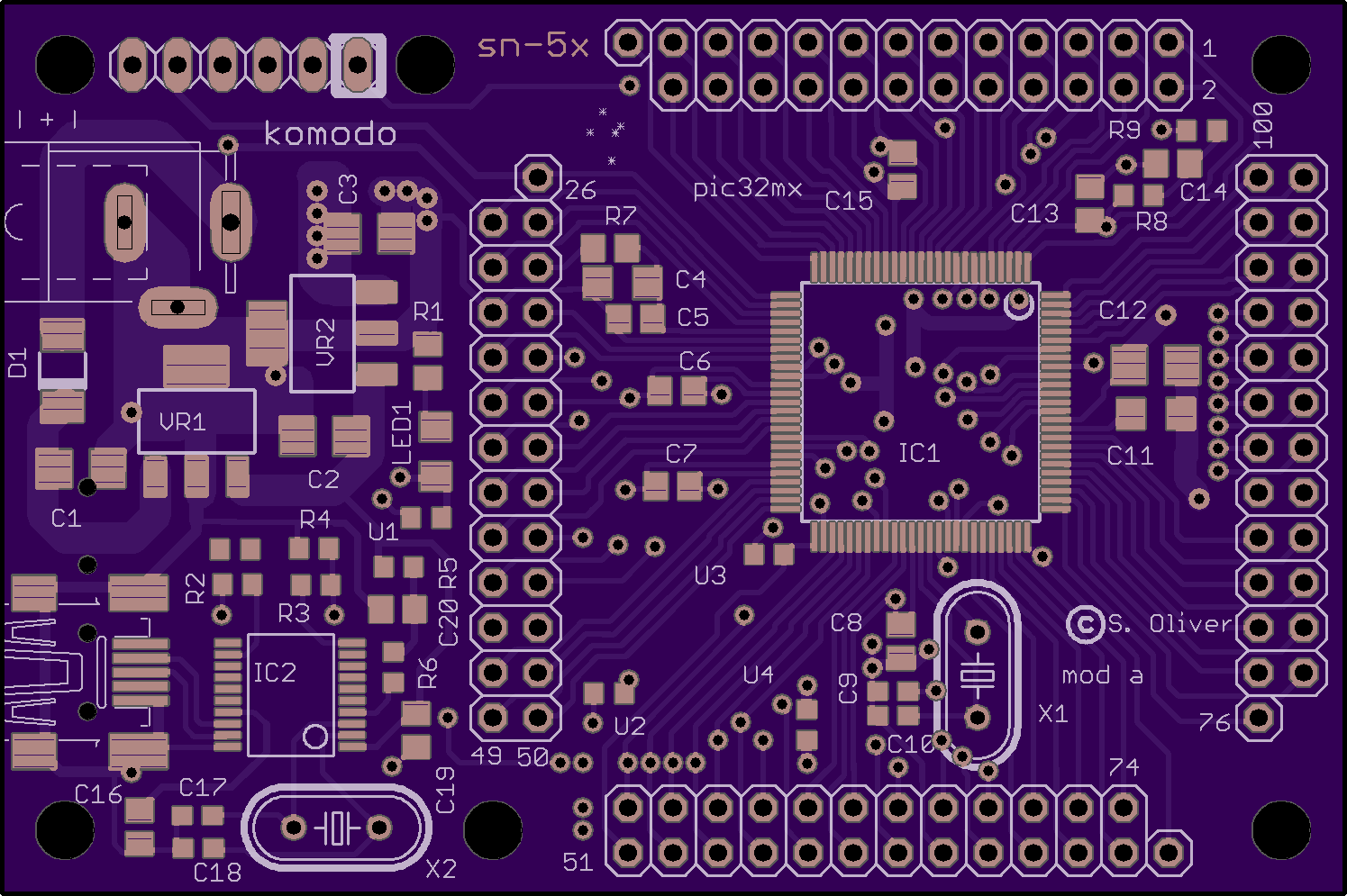

Top

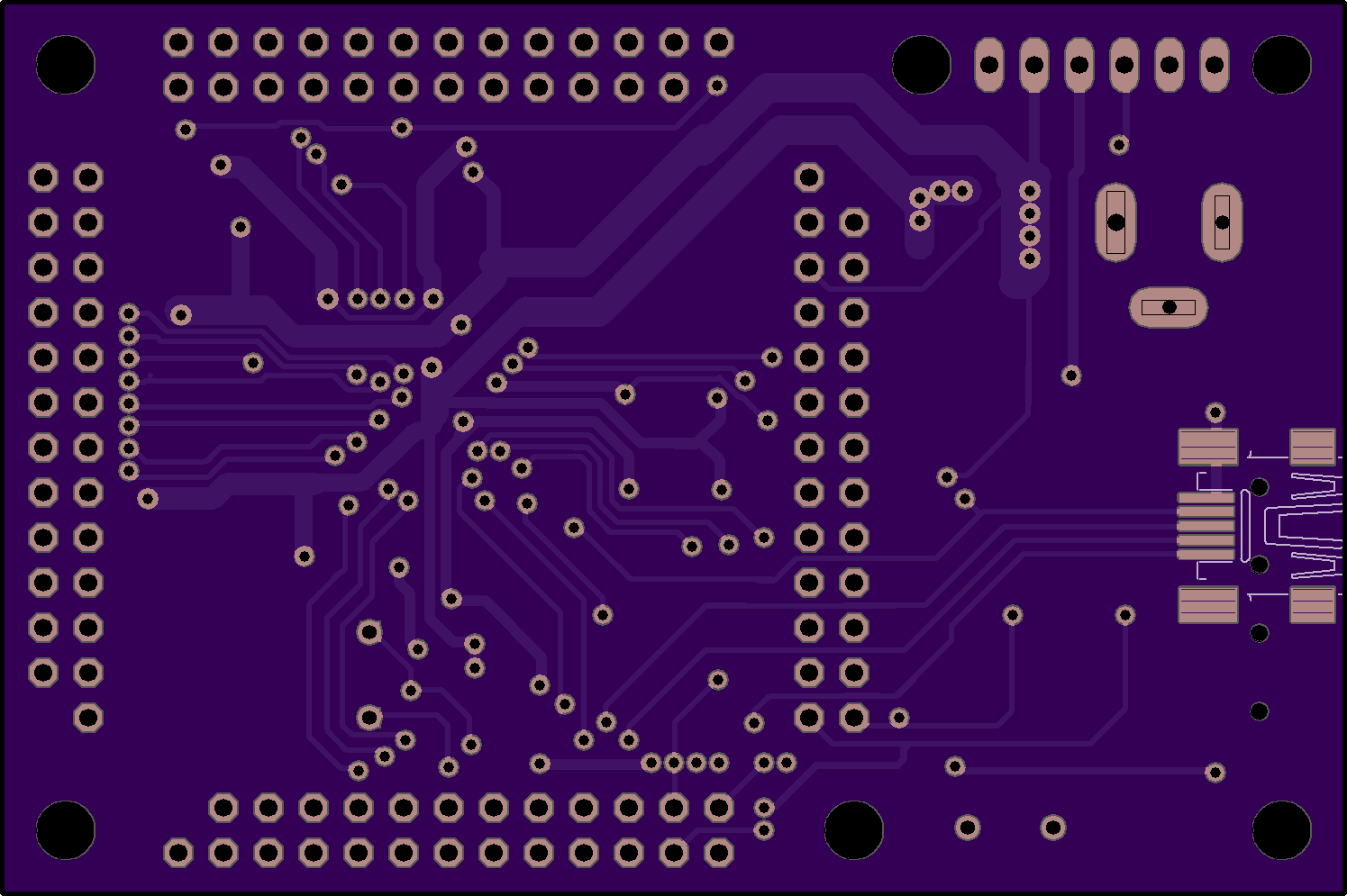

Bottom

2 layer board of 2.99x1.99 inches (75.95x50.57 mm).
Shared on December 27th, 2016 02:34.

Simple sbc/breakout for pic32mx470 or pic32mx795 100 pin 14mm, has icsp, mcp2200 usb serial link + usb direct + power supply, final sn-5x. Tested and works ok, maybe add heatsinking.

[ No guarantees whatsoever - use at your own risk only :) ] Pic24 and dsPic 100 pin ic’s would probably work as well. [This was the precursor to Pic32 MZ version sn-7x which is working as prototype.]

More info http://www.thebackshed.com/forum/forum_posts.asp?TID=9231&PN=1
