AVR Dragon ATtiny13, ATtiny85, 45, 25 Adapter

by funkfinger.

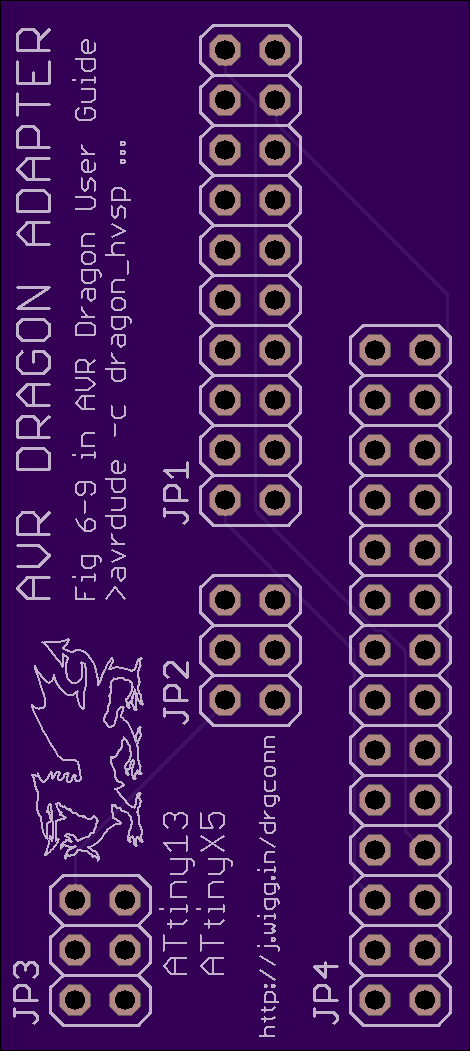

Top

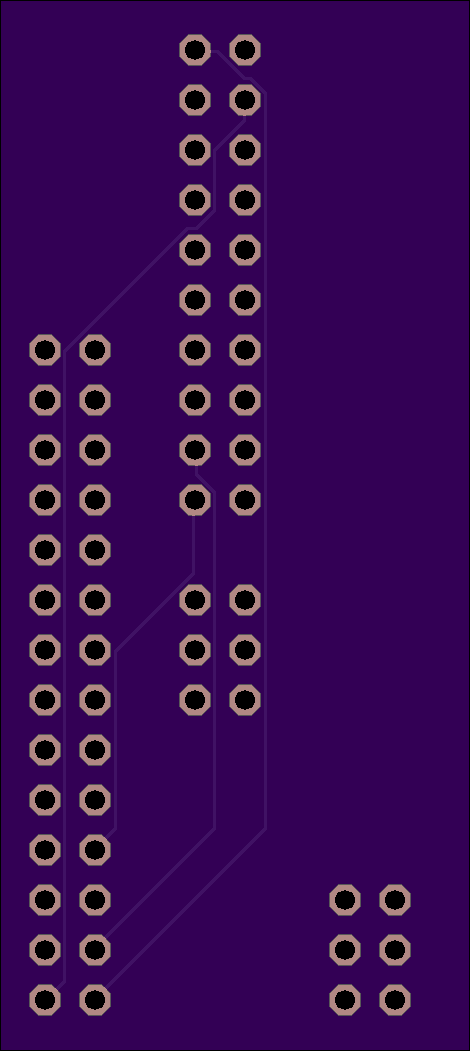

Bottom

2 layer board of 0.94x2.10 inches (23.83x53.34 mm).
Shared on November 30th, 2016 05:05.

quick connection to program an ATtiny13, ATtiny85, 45, 25 (and others) with an AVR Dragon in HVSP mode - TESTED but not guaranteed - see Fig 6-9 in AVR Dragon User Guide

my setup

>avrdude -c dragon_hvsp ...

I tiny more info is here.
