odyssey2-composite-rev2.brd

by grips03.

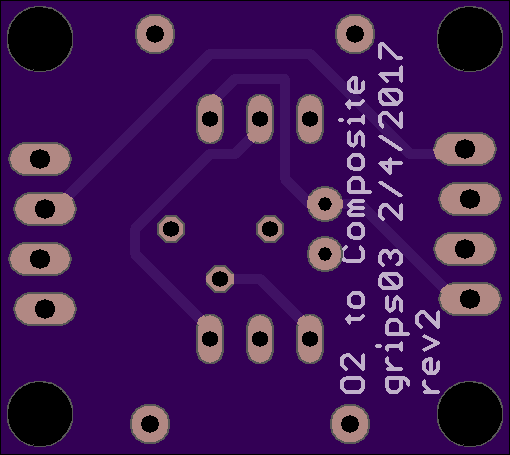

Top

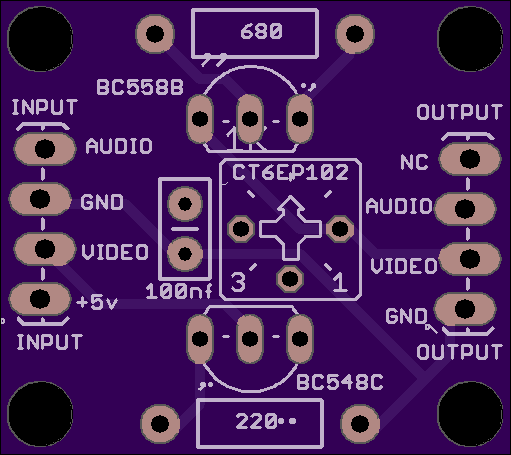

Bottom

2 layer board of 1.02x0.91 inches (25.91x23.04 mm).
Shared on February 5th, 2017 23:28.

PCB to add Composite Video to Odyssey 2 console.

Please don’t make to sell on eBay, etc. This is for non-commercial use only.

Parts list:

CT6EP102 (1K pot)

BC558B

BC548C

680 ohm .25 watt resistor

220 ohm .25 watt resistor

100nf cap

You adjust 1K POT on this PCB and R4 (on the O2 system board) until you are happy with output. Default setting is 400ohms.

Video in = junction of C44 and R7 on system board GND = Ground +5v = easy enough to find with multimeter Audio in = junction of C45 and R49 on system board

Put RCA jacks on the lower left hand side of the bottom shell.  This way they are out of way of system board and voice module.
