Sleeping Beauty Bare Bone V3 - 1284P

by Firebirduino.
Top
Bottom

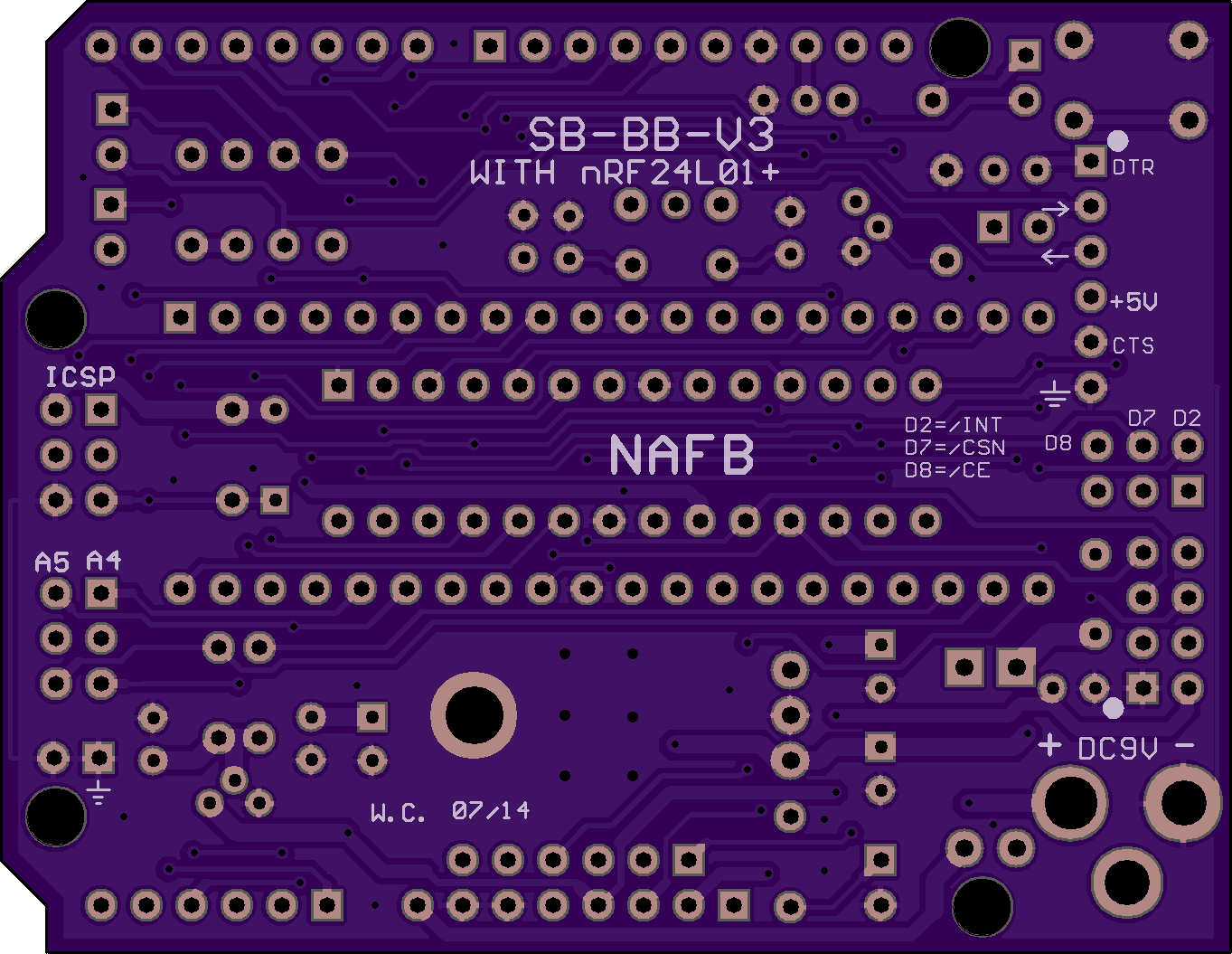

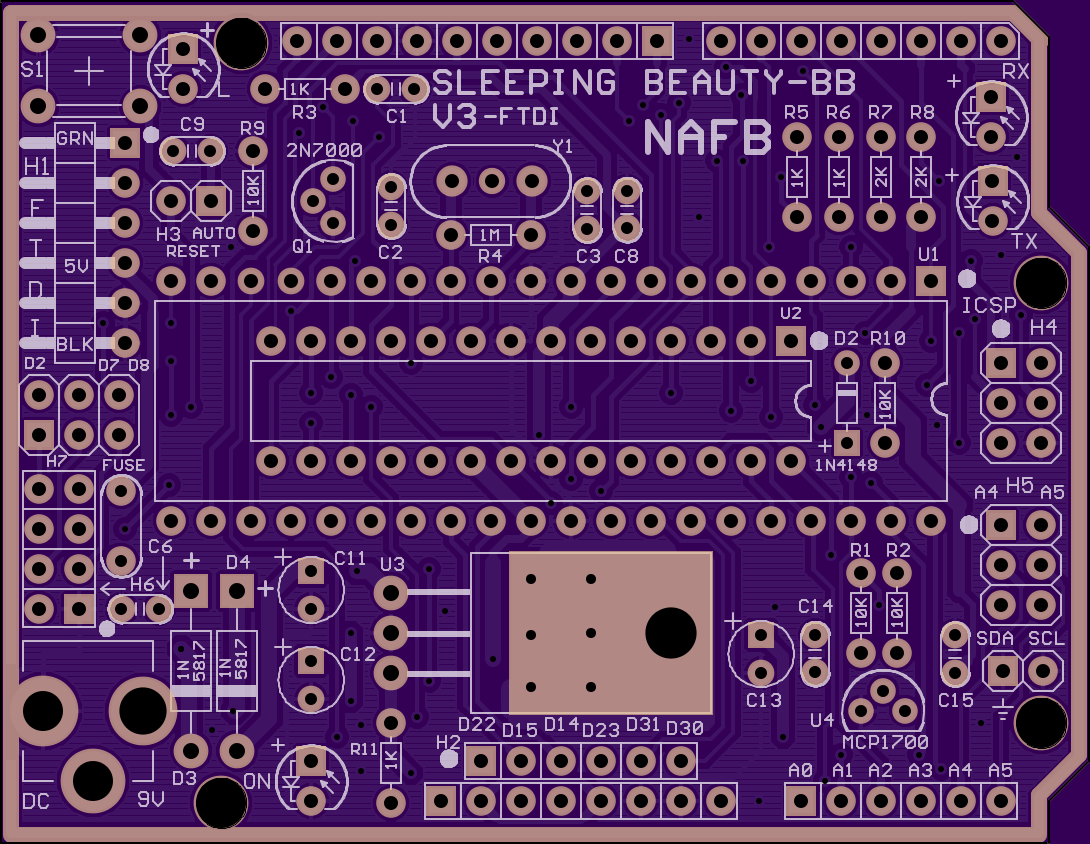

2 layer board of 2.73x2.11 inches (69.24x53.62 mm).
Shared on July 14th, 2014 03:18.

Atmega 1284P / 328P through hole board with nRF24L01+ in UNO size

Made with all through hole components, built-in interface header for nRF24L01+ module. Rconfigurable /CE, /CSN and /INT. signals for different digital pins. Works for the Atmega1284P or the Atmega328P.

See details at: http://www.firebirduino.com/sleeping_beauty/
