ATtiny 25/45/85 Header SMD v1.0 r2.1

by Wxll.

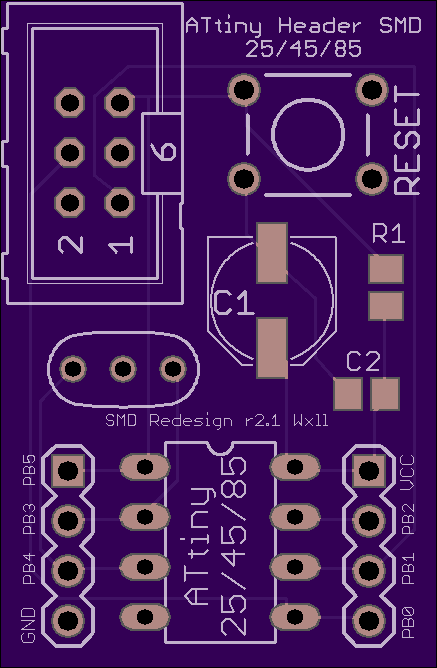

Top

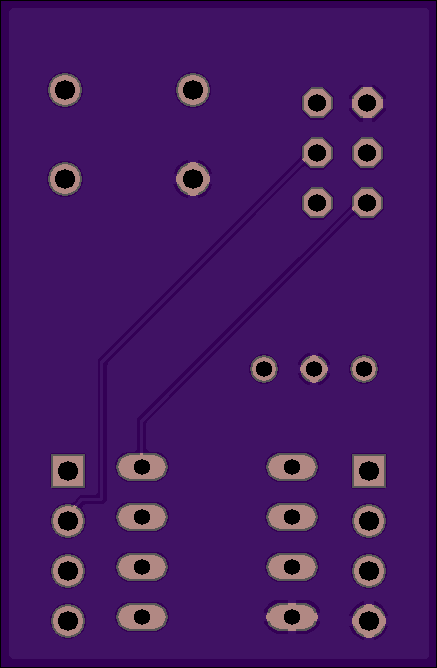

Bottom

2 layer board of 0.87x1.33 inches (22.15x33.86 mm).
Shared on March 20th, 2014 23:42.

A header board which can be sticked into a breadboard and creates a fully working ATtiny(25/45/85) setup. Included are the (original) features:

  • 6pin ISP connector for programming the ATtiny
  • Reset button for resetting the ATtiny
  • Every pin of the ATtiny is usable on the breadboard
  • Using a resonator for the clock frequency
  • The ATtiny is still a TH version and uses a DIP8 package for easy swap with another ATtiny.

Find my eagle files and BOM on github

This is a fork of the “through hole” version of the excellent work of djmason9. I’ve converted the board into a smaller SMD version 0.87x1.33 inches (22.15x33.86 mm). The original work of DJMason can be found: here
