WS2812 8-LED Stick

2 layer board of 2.00x0.40 inches (50.80x10.16 mm).
Shared on March 1st, 2014 08:53.

Based on the Adafruit Neopixel Stick, resized and tuned for OSH Park’s DRU.

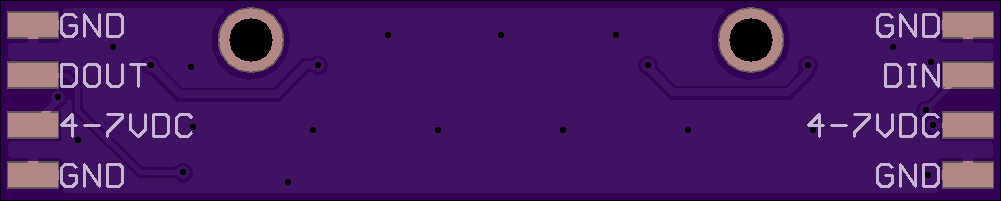

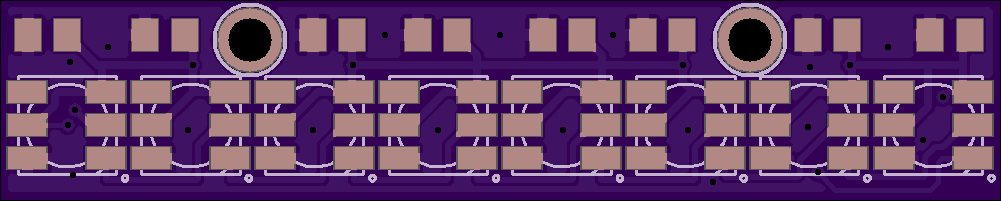

Pads along the top are for 0.1uF (100nF) 0805 ceramic capacitors, the bottom eight 6-PLCC pads are for the WS2812’s. Pads on the back are for signal in and out, along with passthrough drive voltage (4-7VDC) and ground/earth.
