BLF driver DDm-23.2S [rev00a][untested]
by
DEL.
2
layer board of
1.02x0.89
inches
(25.86x22.63
mm).
Shared on
April 28th, 2017 01:17.
LDO version of the Yezl Y3 driver, for 2S lights.
- Suggested LDO: MIC5235-5.0, SOT23-5
- C1, C2, C3: 4.7 uF (but 2.2 - 10 uF is OK), X5R/X7R
- R5: 10 ohm

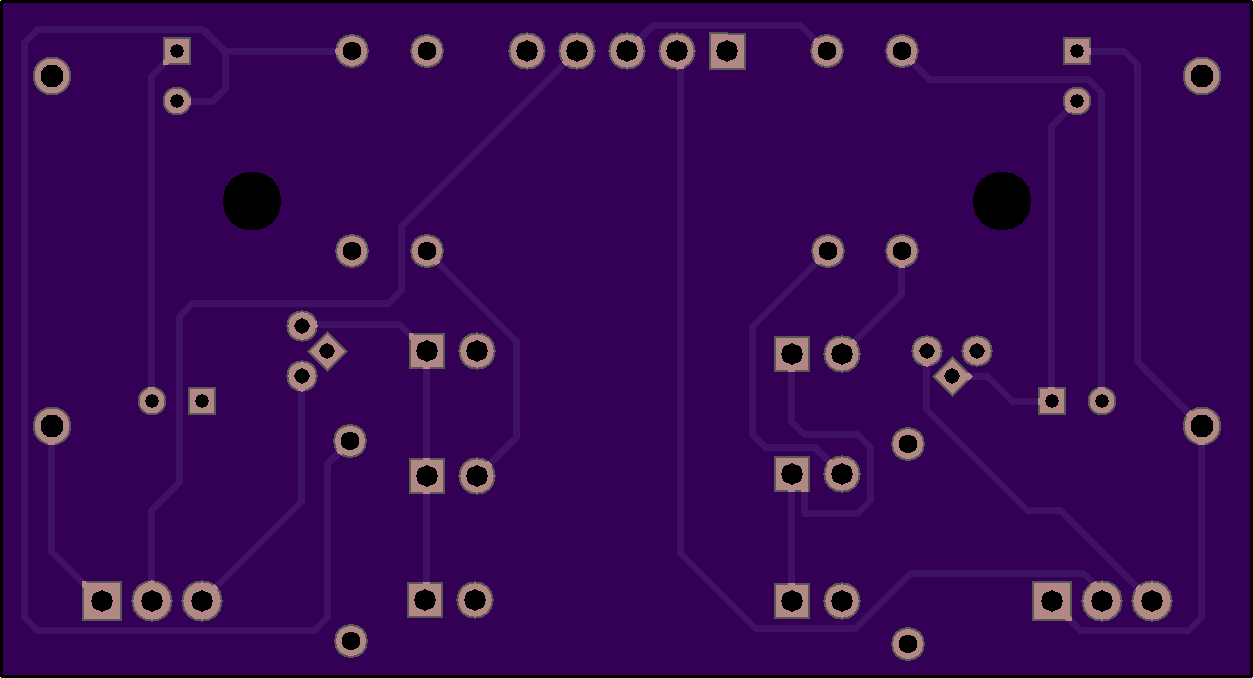

Tube Bias Board
by
SirIsaac.
2
layer board of
2.51x1.36
inches
(63.65x34.44
mm).
Shared on
April 28th, 2017 00:22.
Preamp tube board bias board for the Bottlehead Crack AMP. Allows for easy re-biasing of different preamp tubes using jumpers.

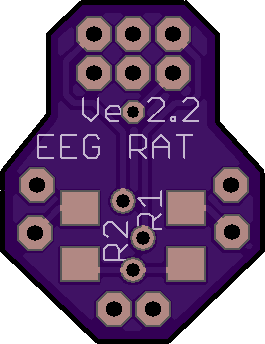

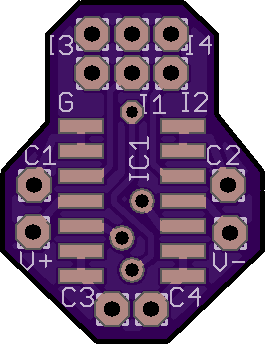

Ver2.2 (Rat).brd
by
Pklein25.
2
layer board of
0.53x0.69
inches
(13.46x17.48
mm).
Shared on
April 27th, 2017 14:44.
PCB for connecting an op-amp to a 6 position header

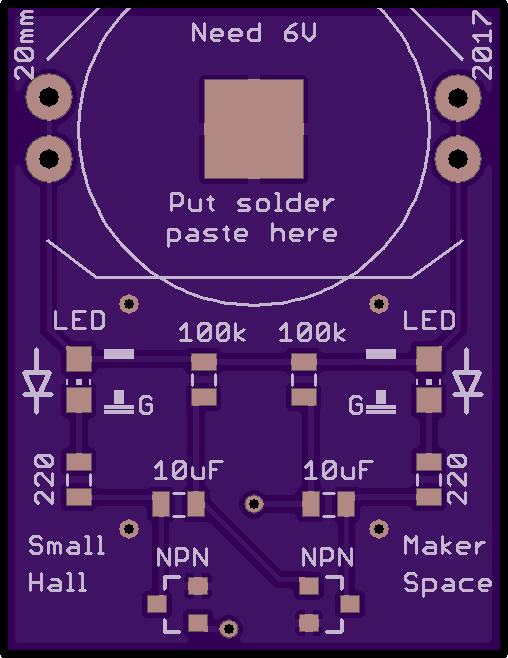

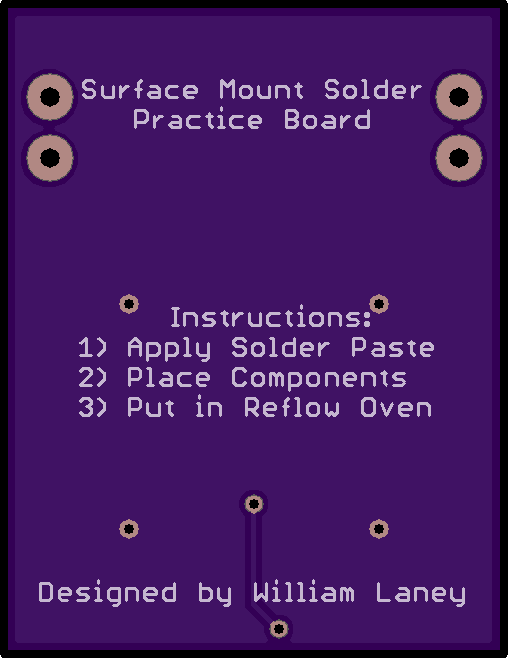

learn_smd V2
by
iamwill2.
2
layer board of
1.02x1.32
inches
(25.81x33.45
mm).
Shared on
April 27th, 2017 13:59.
A basic board for learning surface mount soldering
Annoyotron
by
AlexWulff.
2
layer board of
1.15x0.94
inches
(29.24x23.80
mm).
Shared on
April 27th, 2017 13:06.
