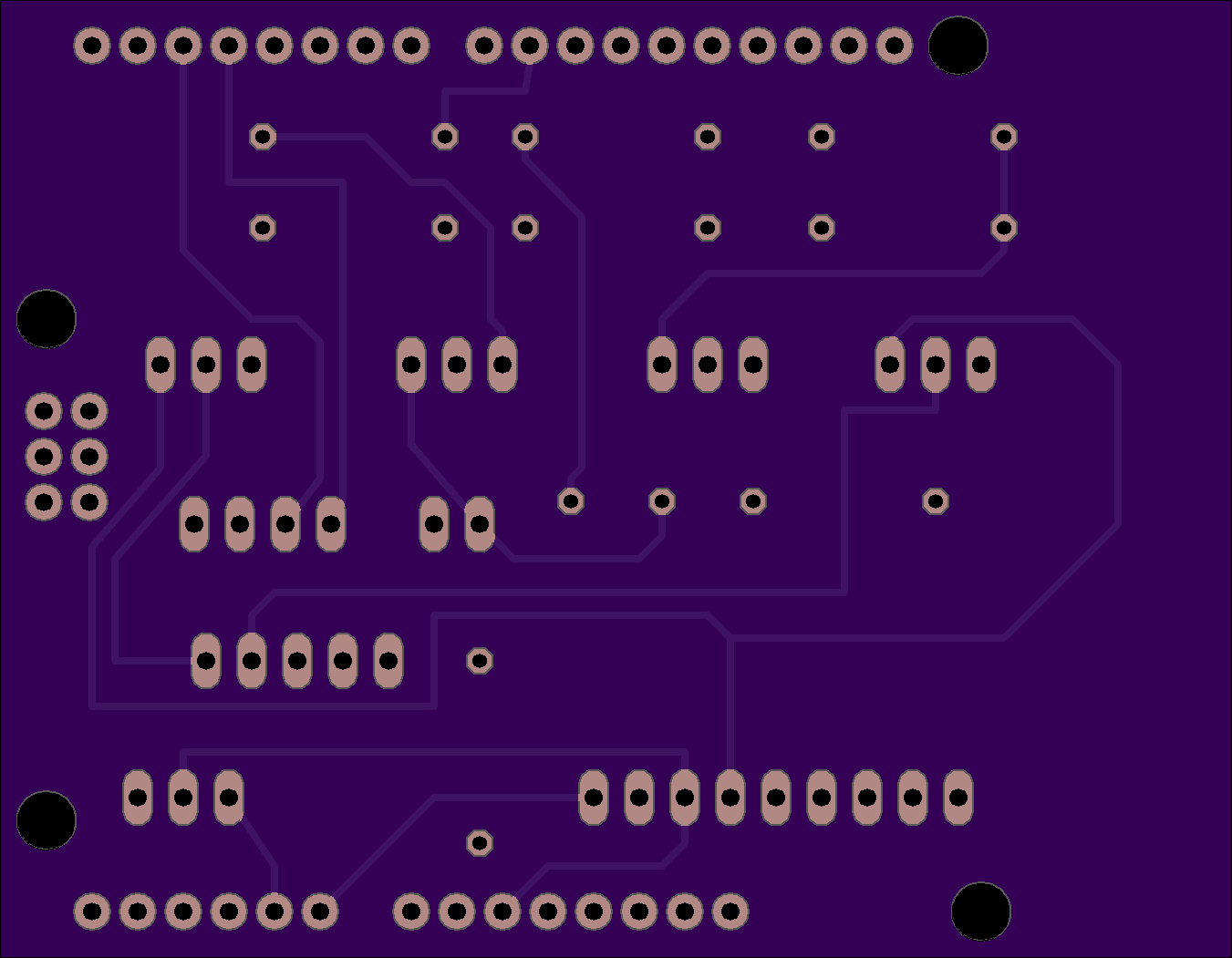

VFD_Arduino_New_Schematic.brd
by
fontj.
2
layer board of
2.70x2.10
inches
(68.61x53.37
mm).
Shared on
April 28th, 2017 18:45.
ribbon_cable_down.brd
by
ashragai.
2
layer board of
0.39x0.87
inches
(10.01x22.02
mm).
Shared on
April 28th, 2017 18:37.
Ribbon cable down (43mil thru)
ribbon_cable_up_exact_spacing.brd
by
ashragai.
2
layer board of
1.02x1.54
inches
(26.01x39.01
mm).
Shared on
April 28th, 2017 18:37.
Ribbon cable up Exact
ribbon cable down (46mil)
by
ashragai.
2
layer board of
0.39x0.87
inches
(10.01x22.02
mm).
Shared on
April 28th, 2017 18:37.
Ribbon cable down (46mil thru)

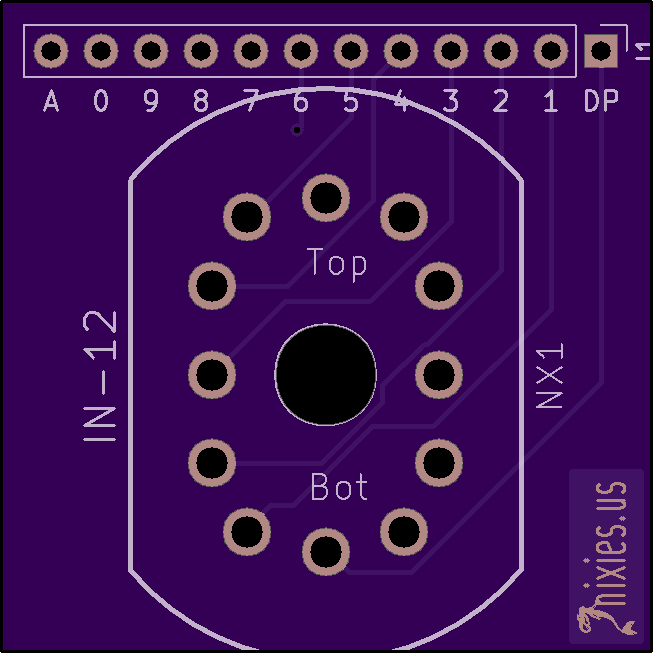

IN-12 Nixie breadboard adapter
by
judge2005.
2
layer board of
1.31x1.31
inches
(33.17x33.17
mm).
Shared on
April 28th, 2017 18:32.

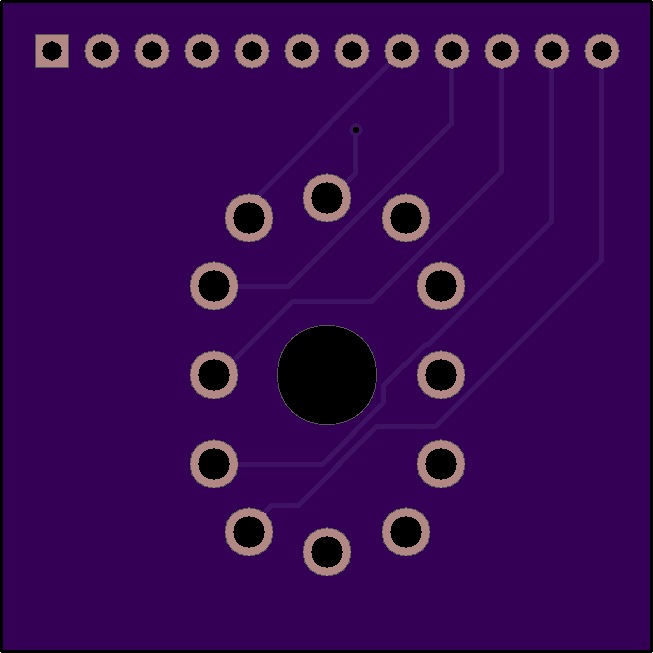

Breadboard adapter for IN-12 nixie tube using female D-SUB pins. The IN-12 has 1mm pins that plug in to a socket. This board is intended to use female D-SUB pins as a ‘socket’. These are often listed on eBay as ‘tube socket pins’.
There is a pin for the decimal point - this is for use with the IN-12B.
